ForkSafe 2200-A.
CODE:
$900 – $1050 per lineal metre (supply only, ex GST)

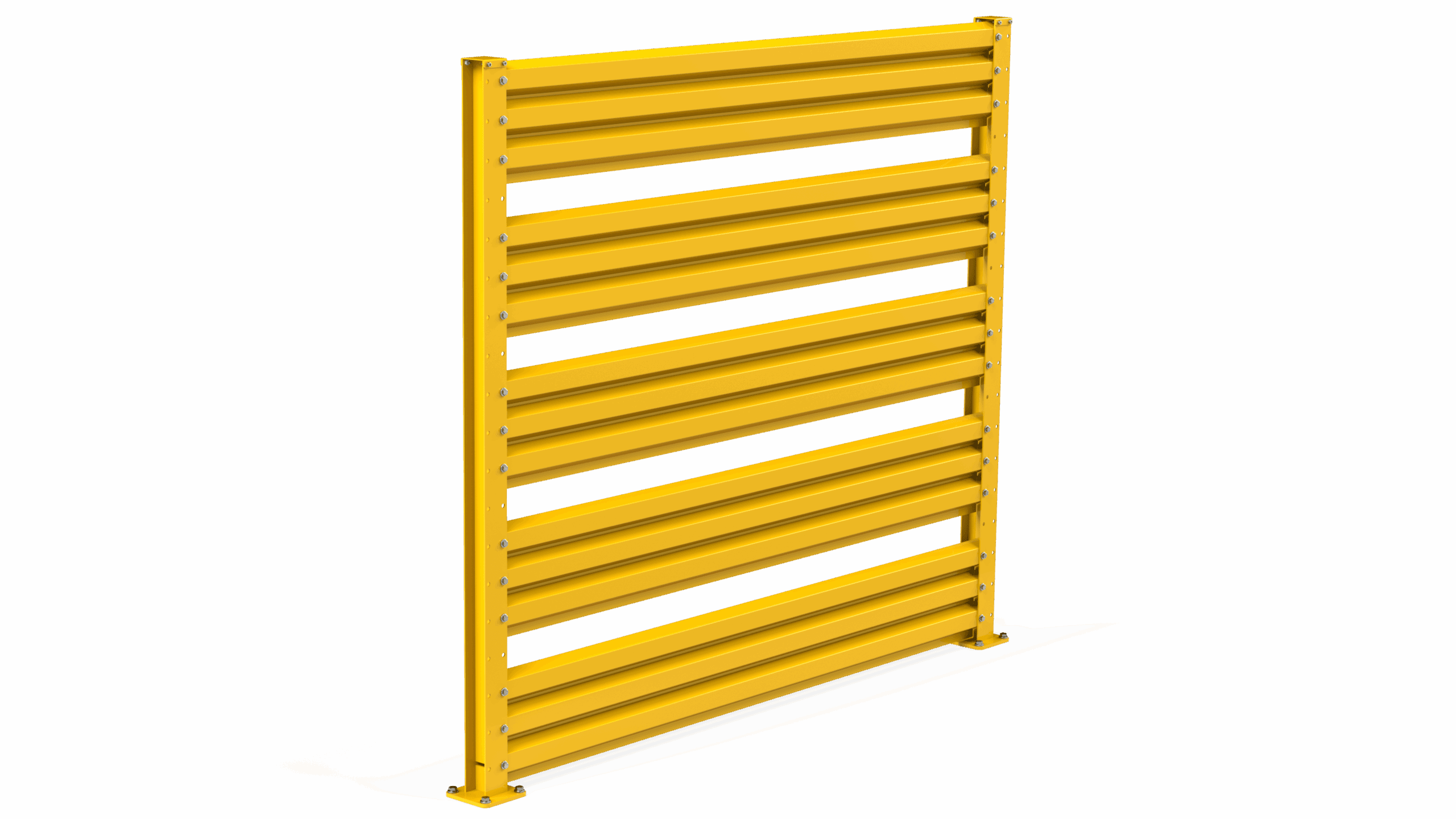

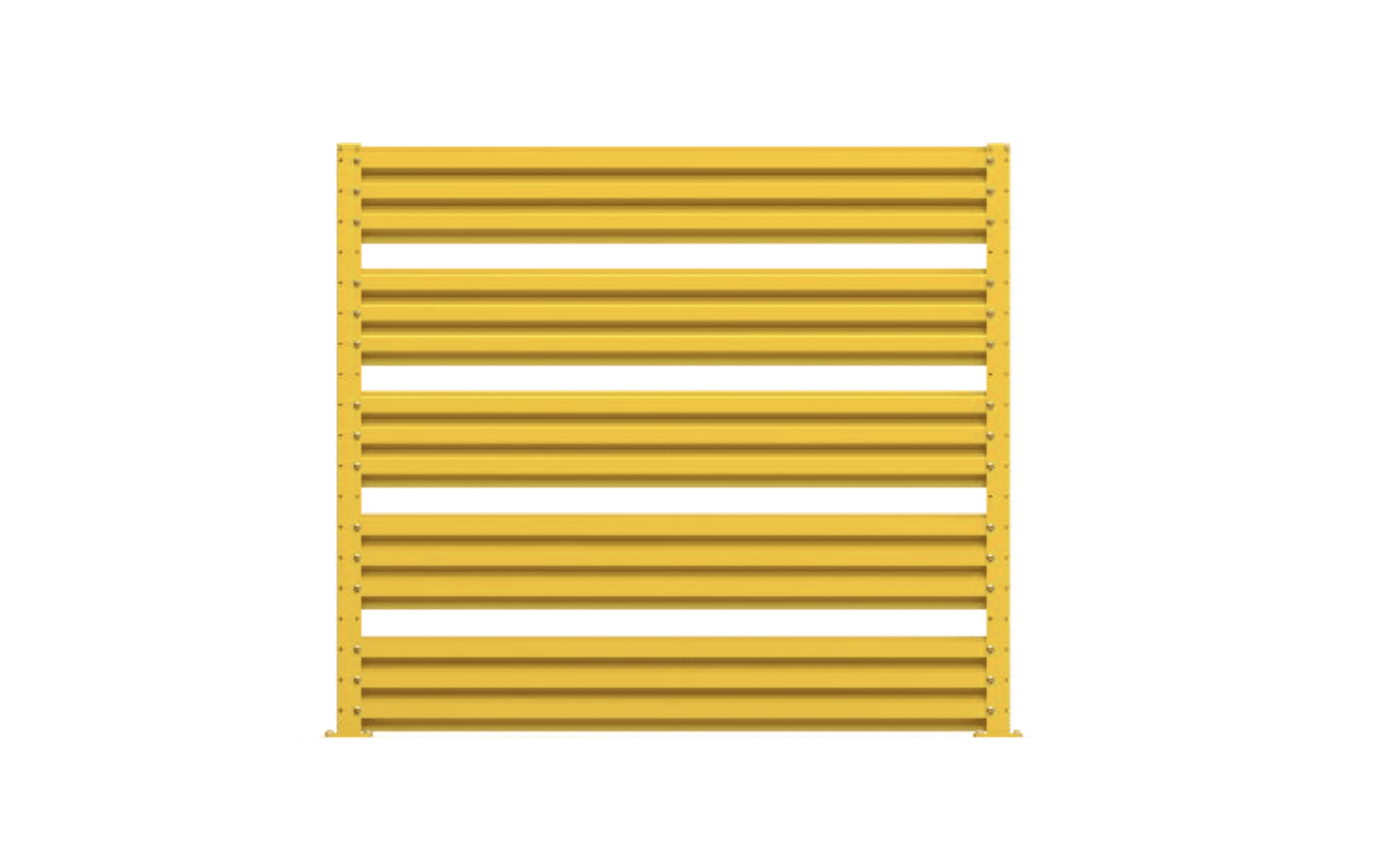

ForkSafe 2200-A is a steel topple barrier designed to protect pedestrian walkways alongside storage areas.
At 2200mm high with a 15-rail configuration, the 2200-A provides elevated protection for pedestrians against forklift activity and falling pallets or stacked products near walkways.
The bottom rail can be placed 130mm off ground, or at ground level, for additional protection against fork tines.
ForkSafe Steel Barriers protect people, equipment, and infrastructure in high-traffic forklift zones.
Key Features
- Crumple Zone Technology (CZT) reduces floor damage on impact
- Fully modular for easy customisation – easy to cut, install, expand, and replace parts
- High-strength steel construction for forklift and MHE zones
- Replaceable posts and rails for easy maintenance
- Supplied with screw anchors for fast and secure installation
- Suitable for forklifts, reach trucks, and pallet trolleys
- Backed by a 10 Year Warranty
Technical Specifications
- Height: 2200mm
- Number of Rails Per Bay: 5 sets (1 set = 3 rails)
- Rail Lengths: 1200mm, 2400mm
- Finish: Galvanised with yellow powder coat finish
- Post Material: Steel – 5mm and 8mm wall thickness
- Rail Material: Steel – 2mm wall thickness
- Connector: M12 x 30mm 8.8 high tensile bolt
- Fixings: M12 x 100mm concrete screw bolts (4 per post, supplied)
- Post Size: 90 x 90mm ‘I’ beam type section
- Base Plate: 180 x 180mm square, 12mm thick, 4 x Ø16mm anchor holes
- Cap: Yellow HDPE clip-on cap
Options
Videos
Spec Sheets
Options
Code
Description
Height
Length
Finish
3310-2411
2200-A Starter Bay
2200mm
1200mm
Galv/Yellow
3310-2412
2200-A Starter Bay
2200mm
2400mm
Galv/Yellow
3310-2413
2200-A Add-On Bay
2200mm
2400mm
Galv/Yellow
3313-001
90° Corner (incl. 6 x Fixings)
Videos
ForkSafe Steel Barriers | Range Overview
Spec Sheets
