GuardSafe® Surface Mount Bollards.
CODE:

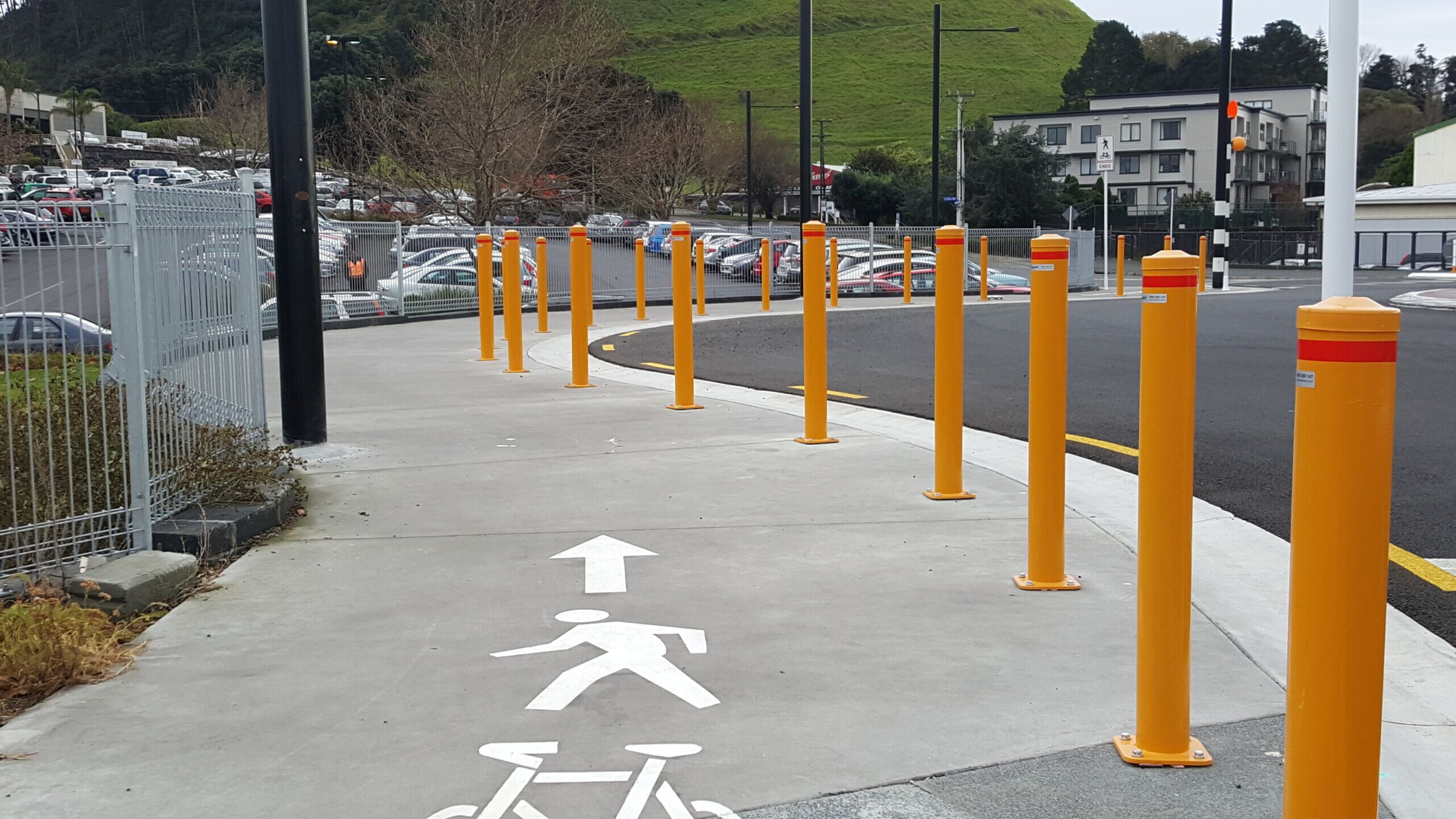

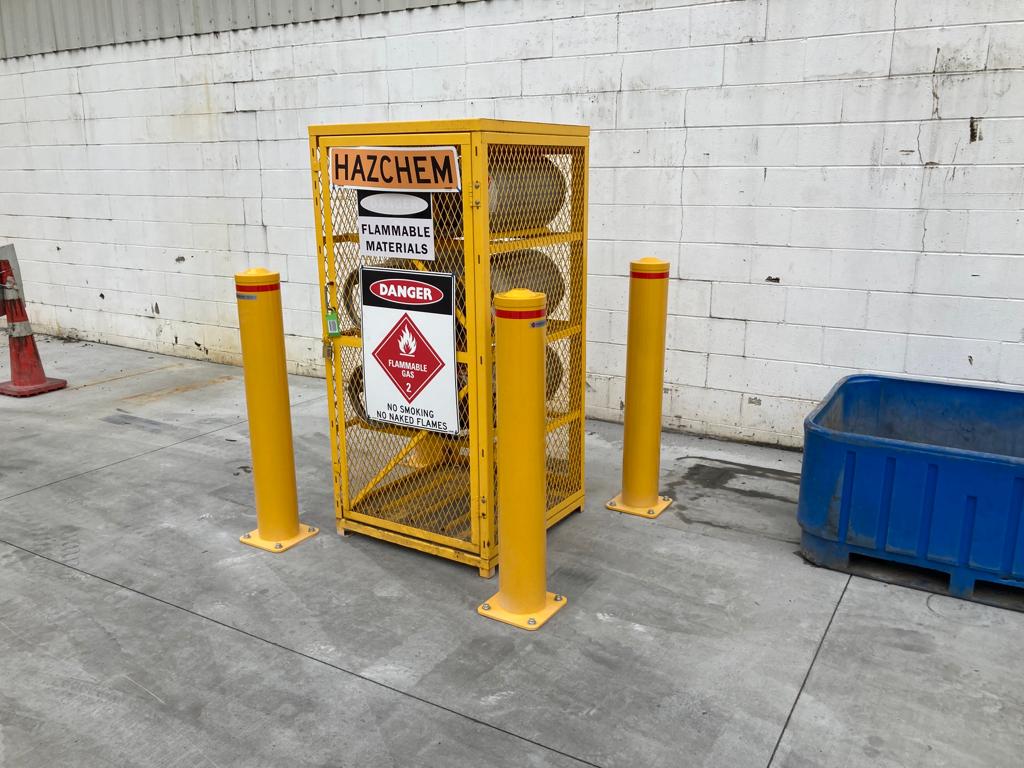

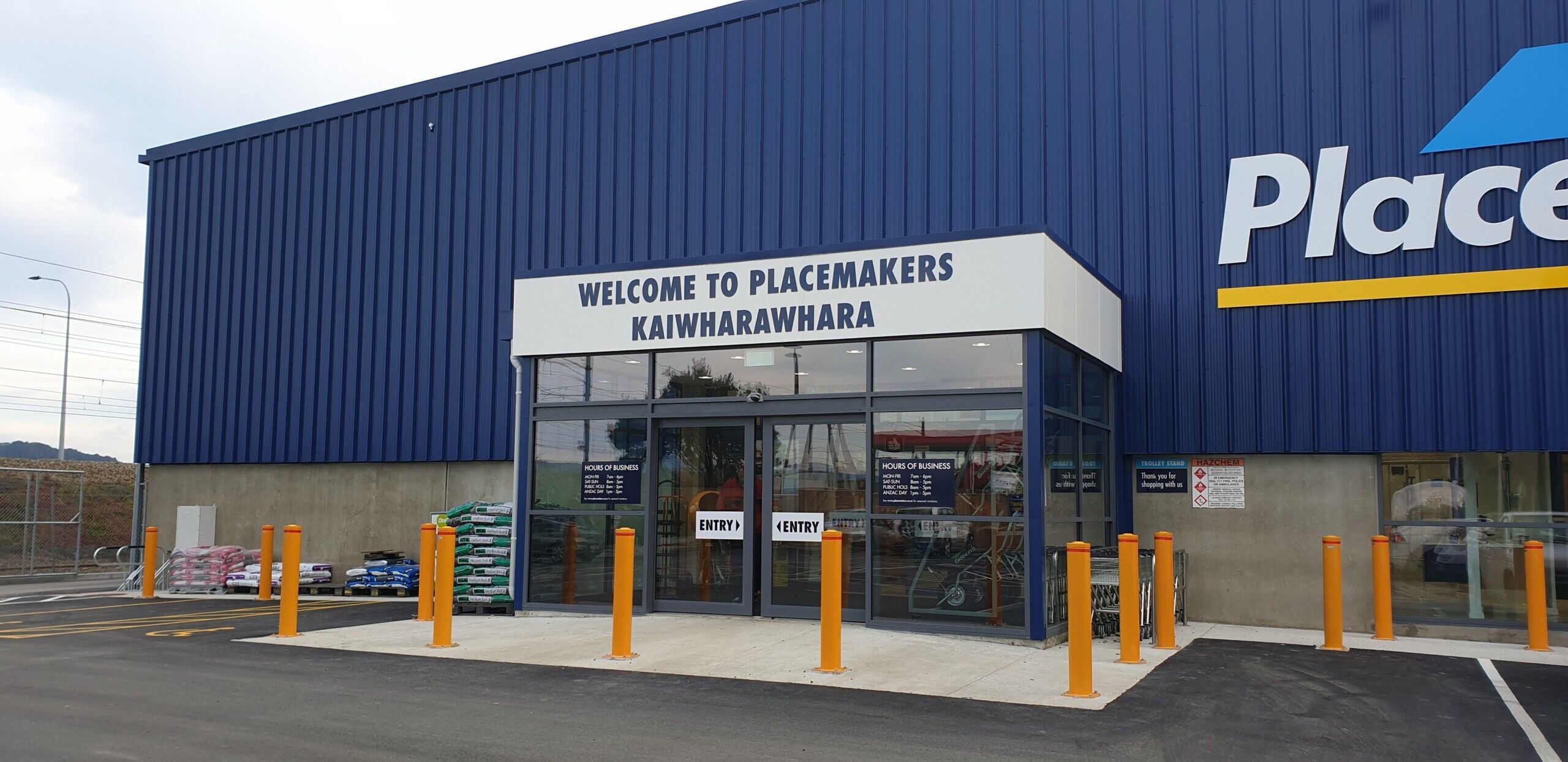

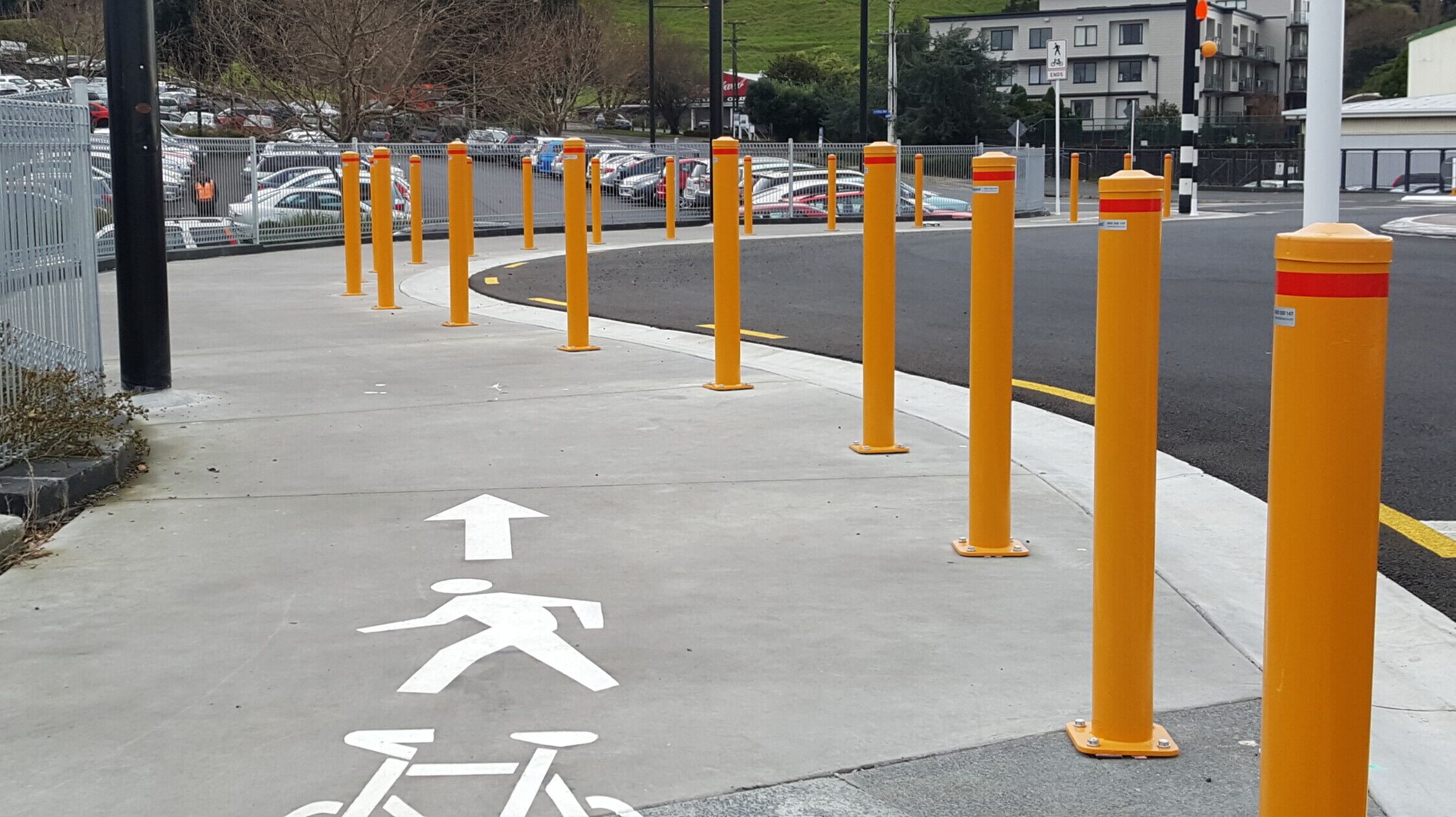

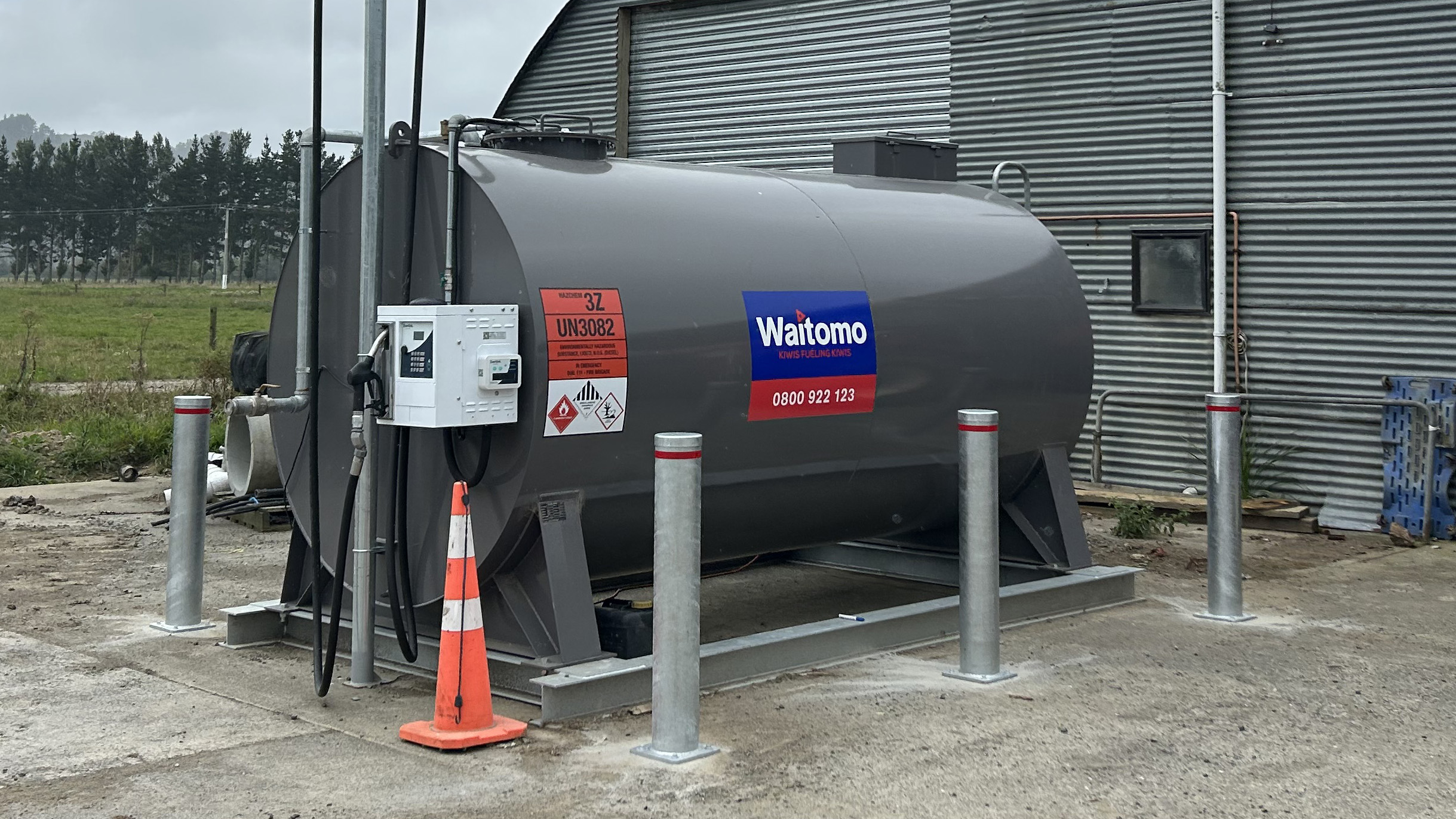

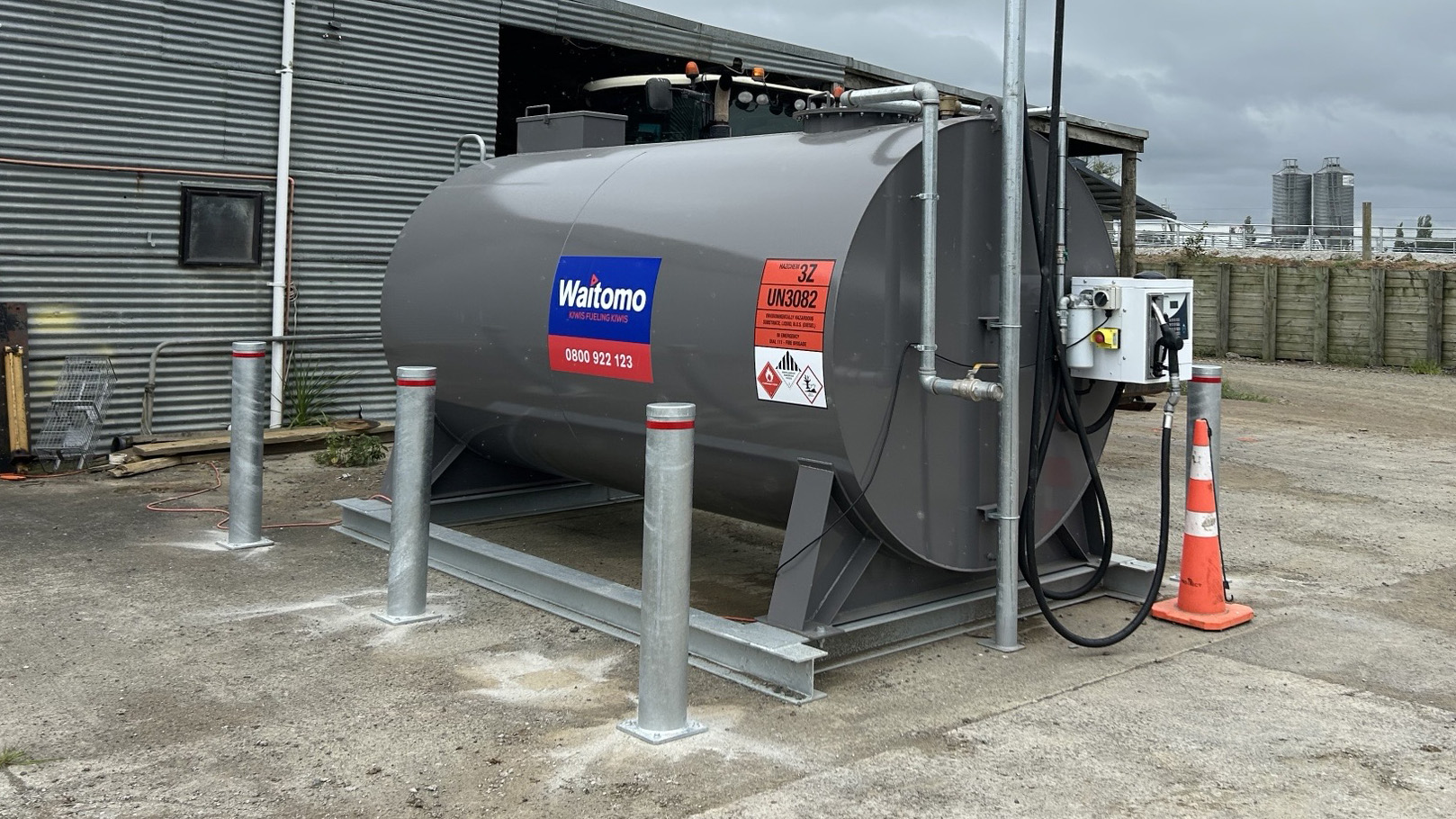

Our steel surface mount bollards are purpose-built for traffic control and property and asset protection, ideal for guarding your vulnerable property, plant and equipment.

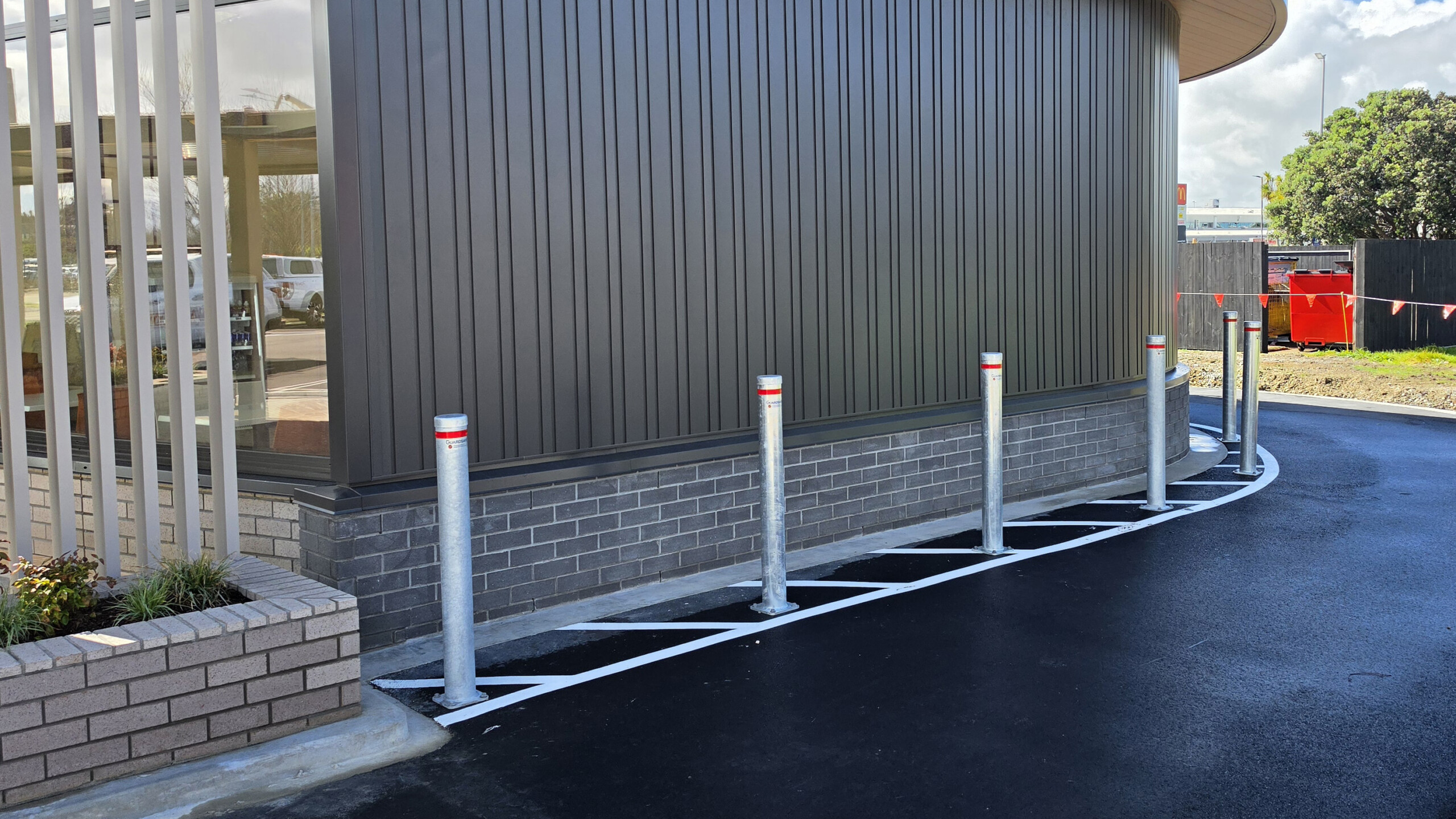

Made from tough galvanised steel, these bollards are bolted onto a concrete surface to protect pallet racking, door tracks, corners of walls, buildings, and much more.
Available with a flat cap in three different diameters: 115mm, 165mm, and 220mm.
Key Features
- Galvanised for advanced protection against the elements to withstand both indoor and outdoor use

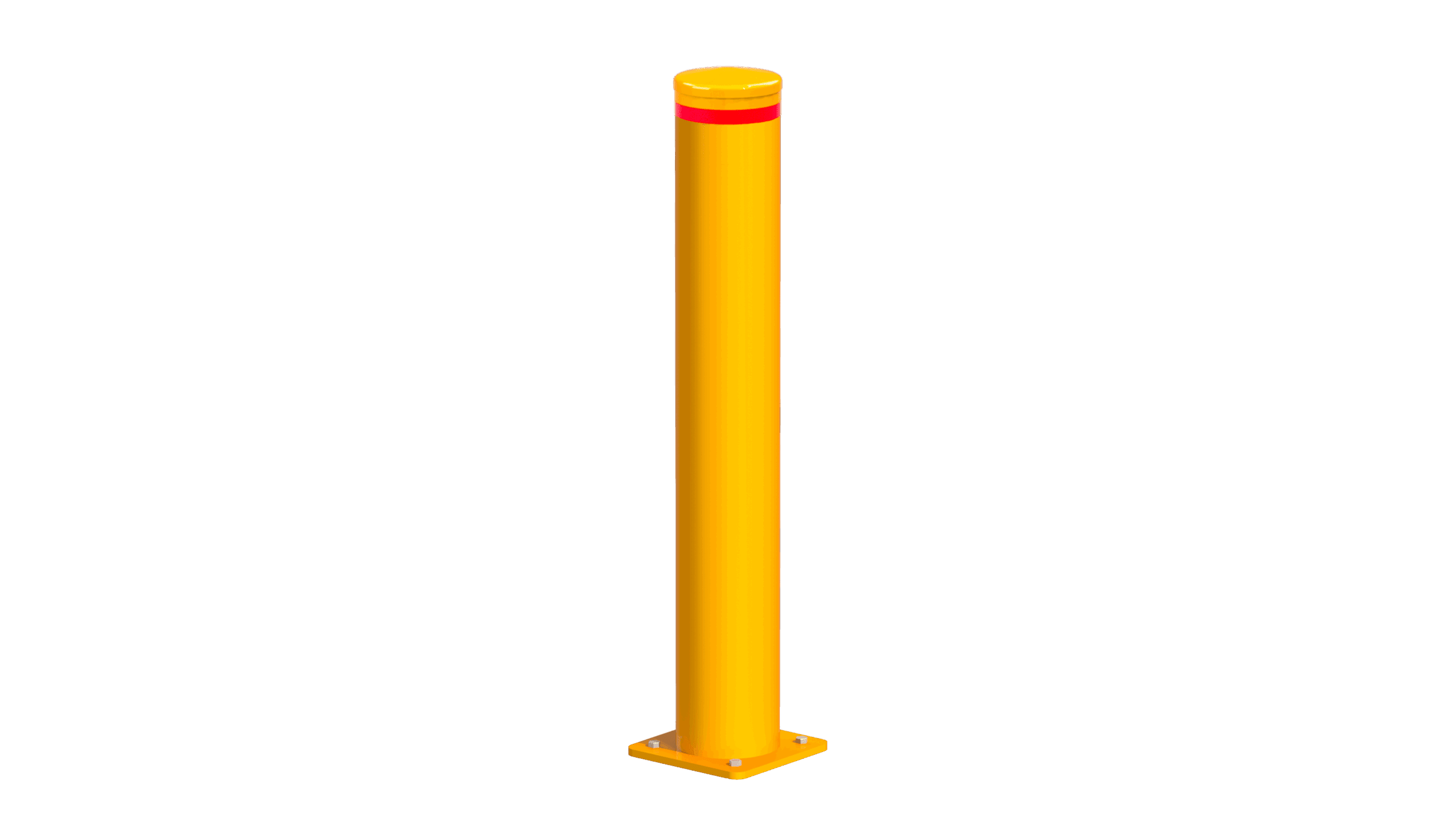

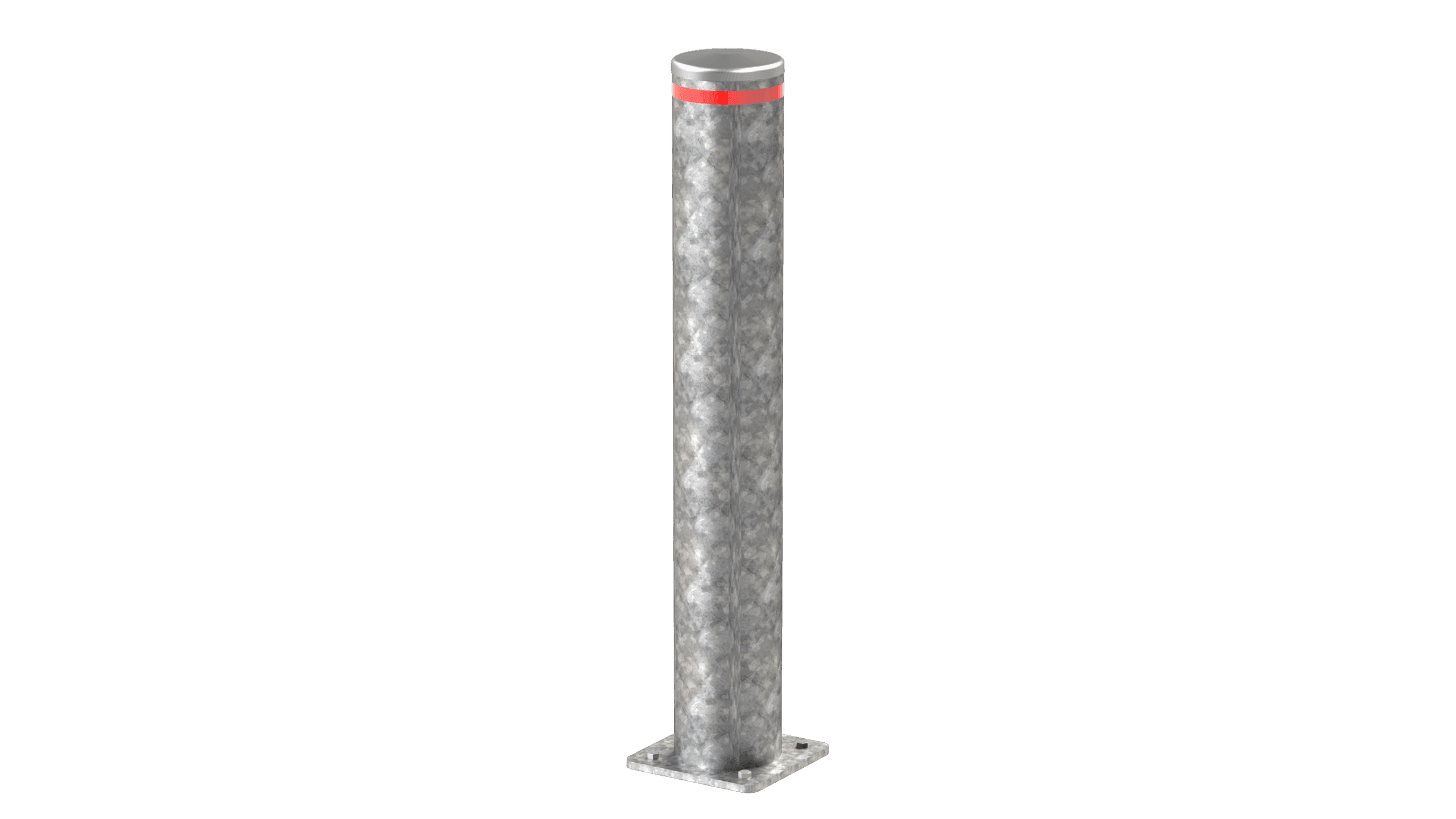

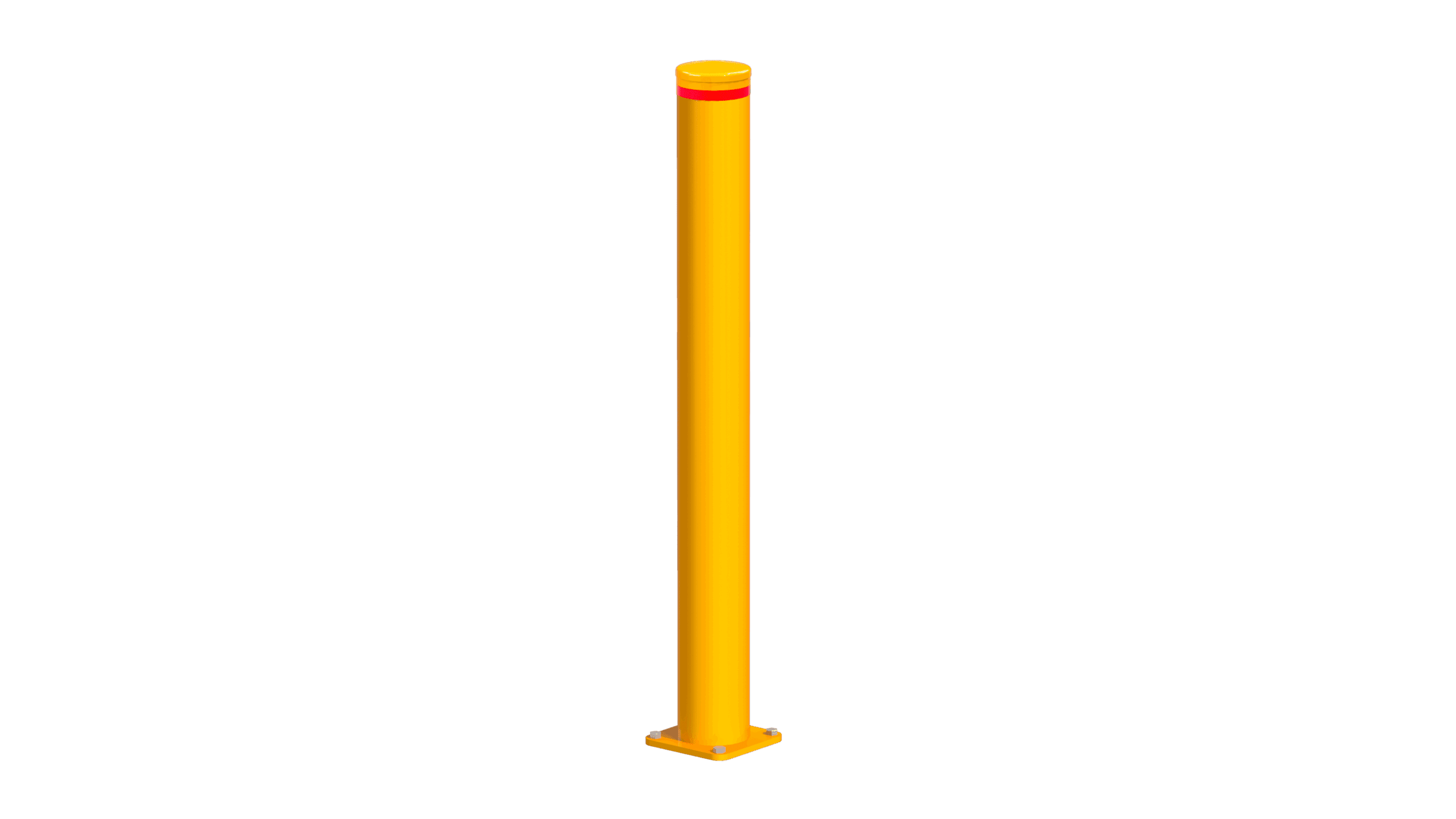

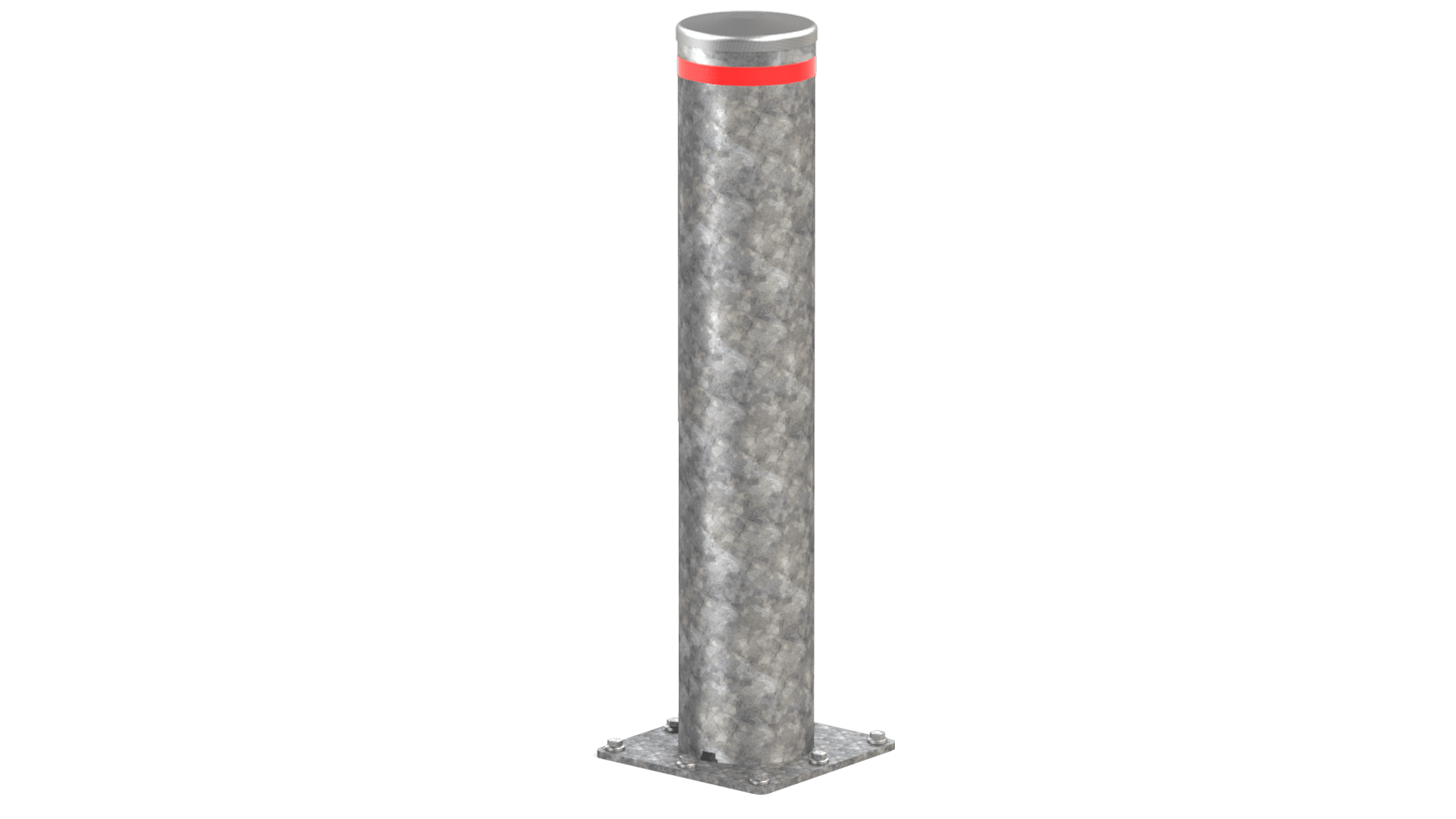

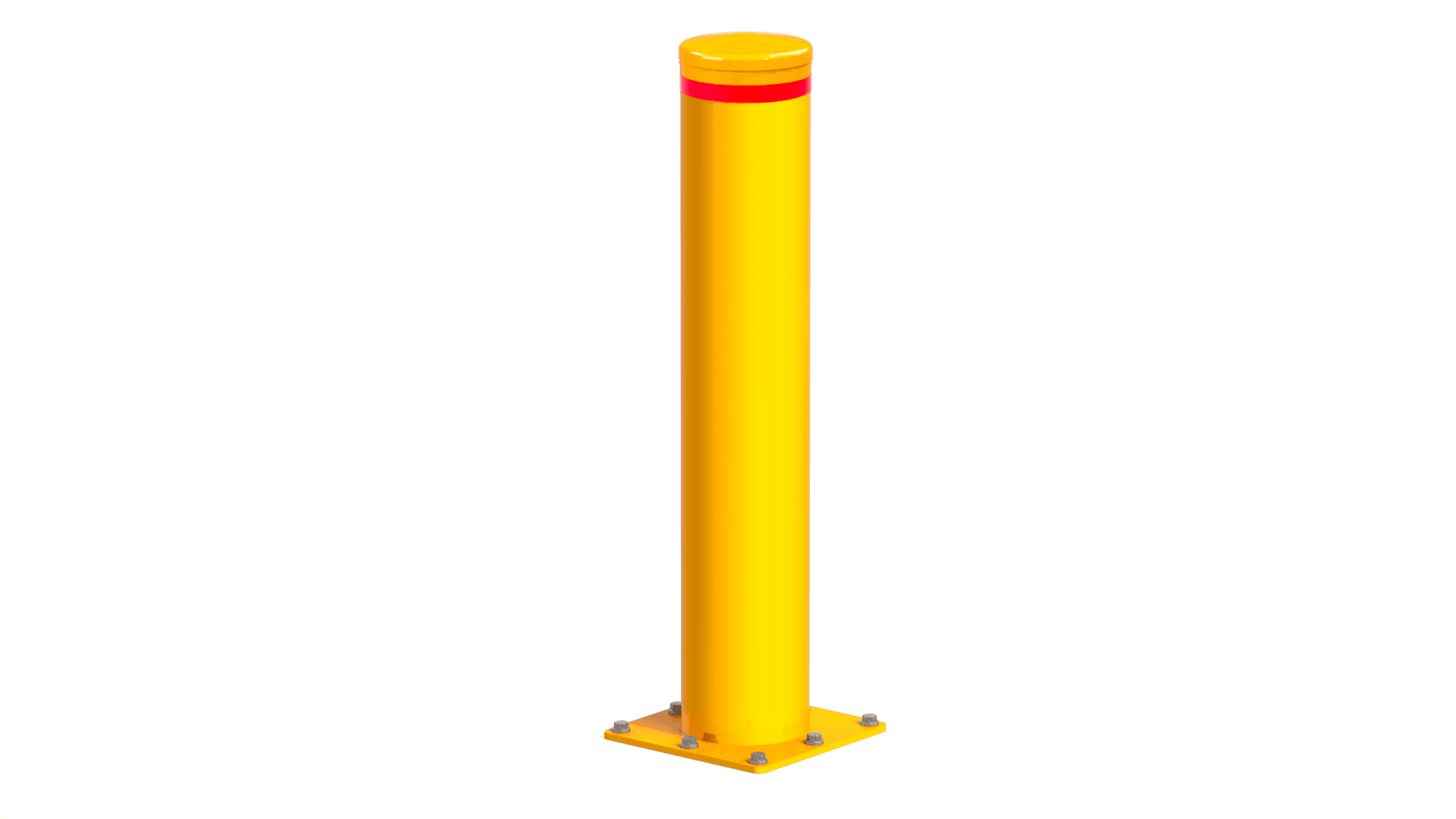

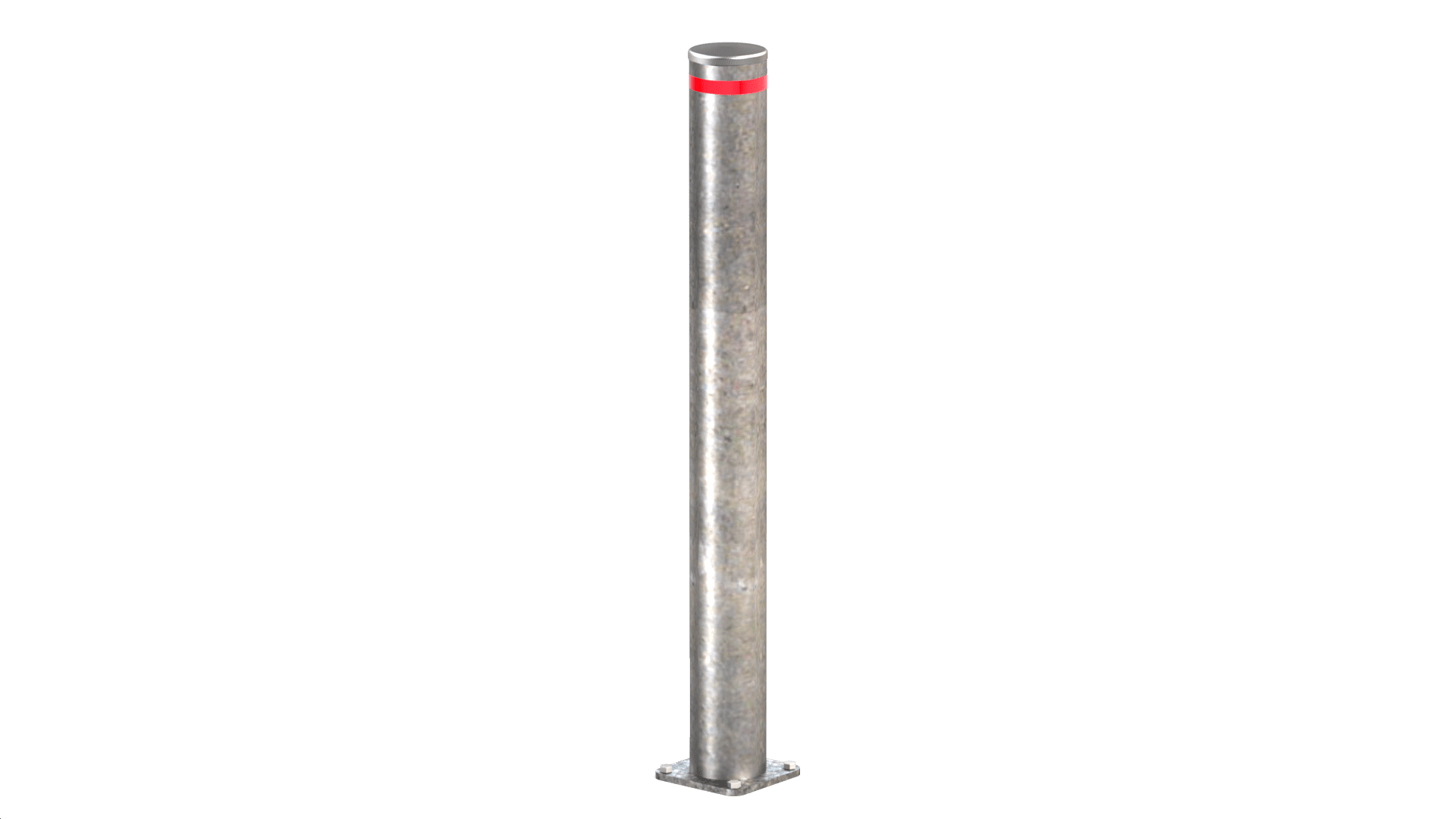

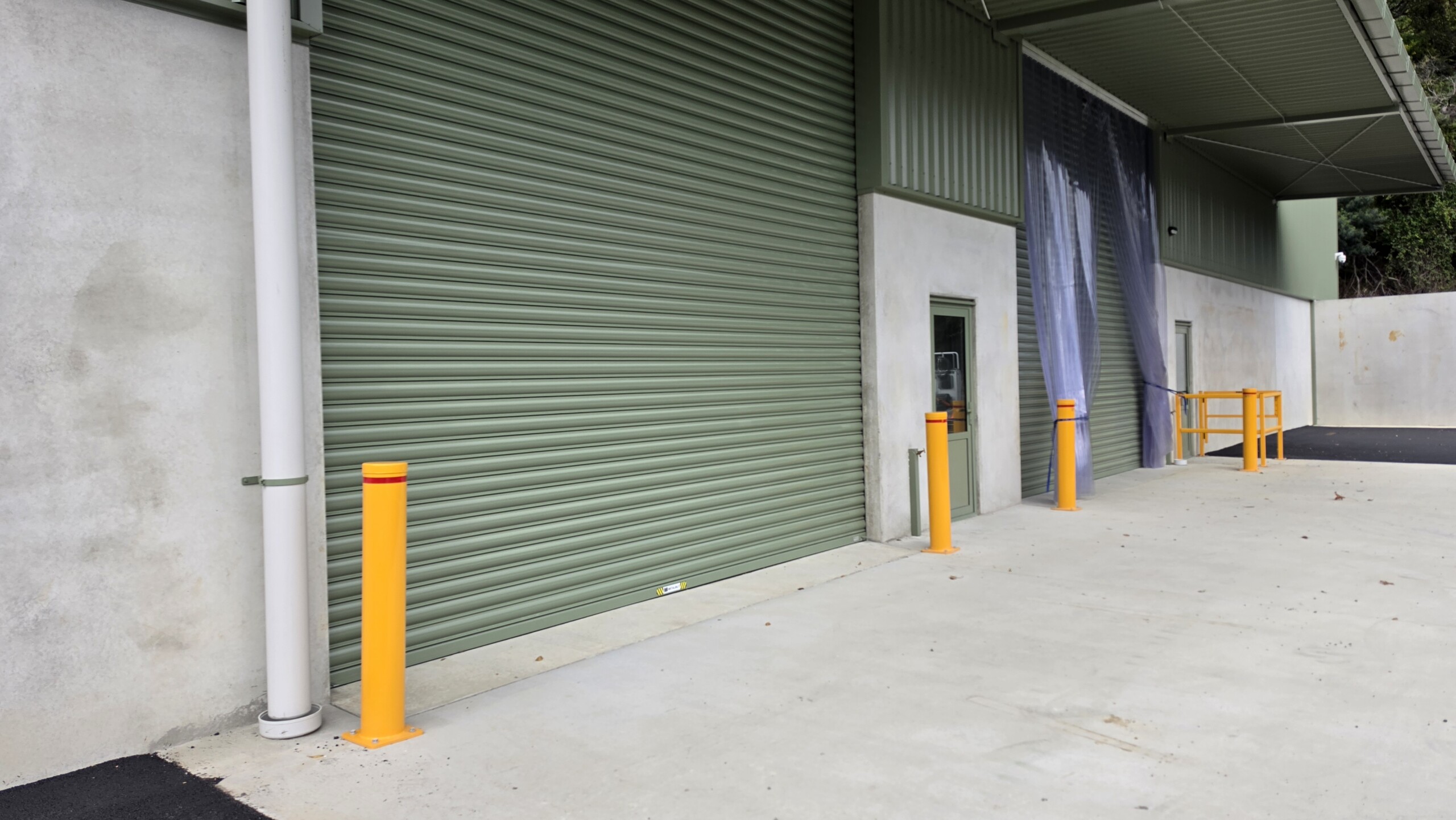

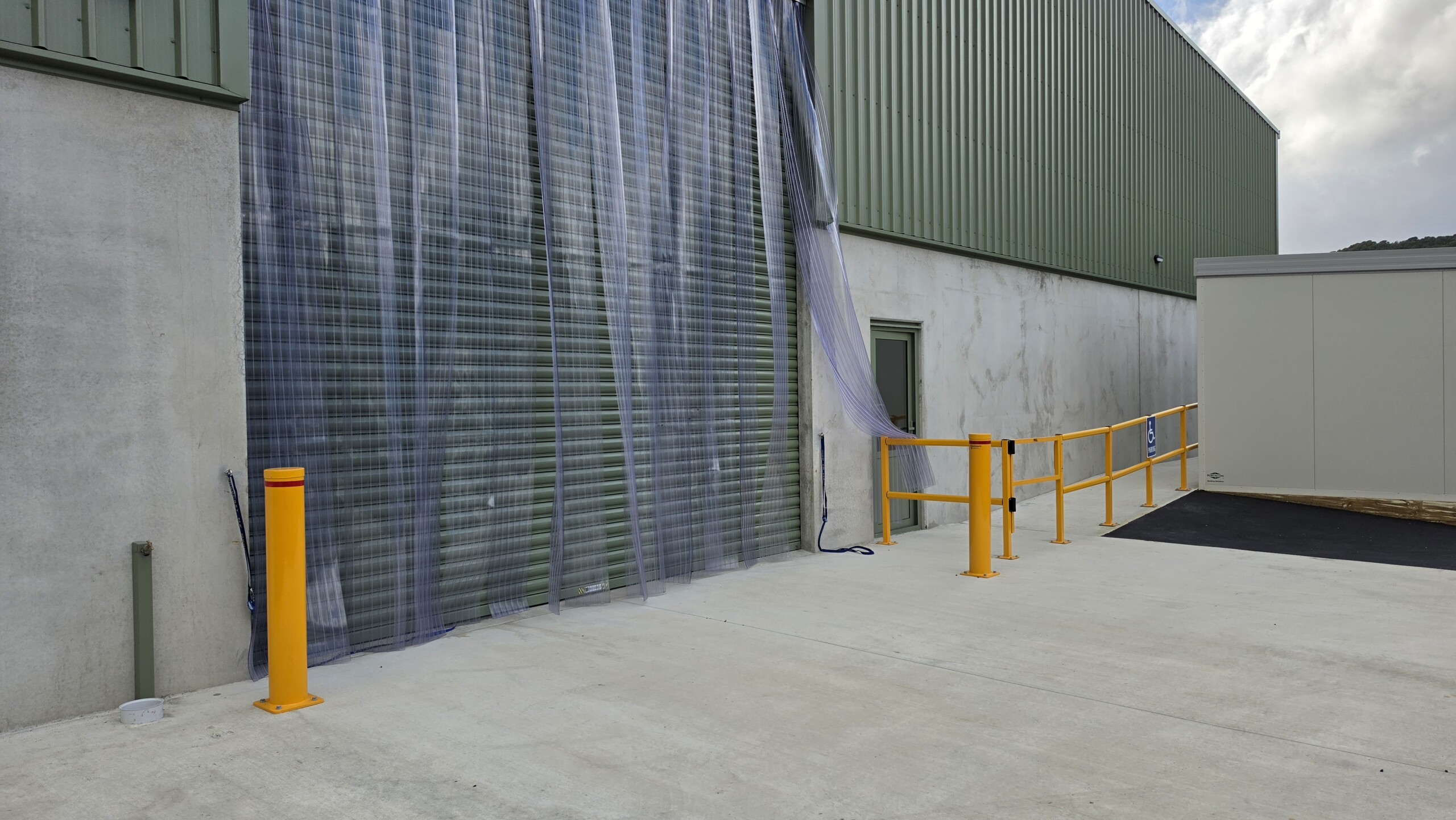

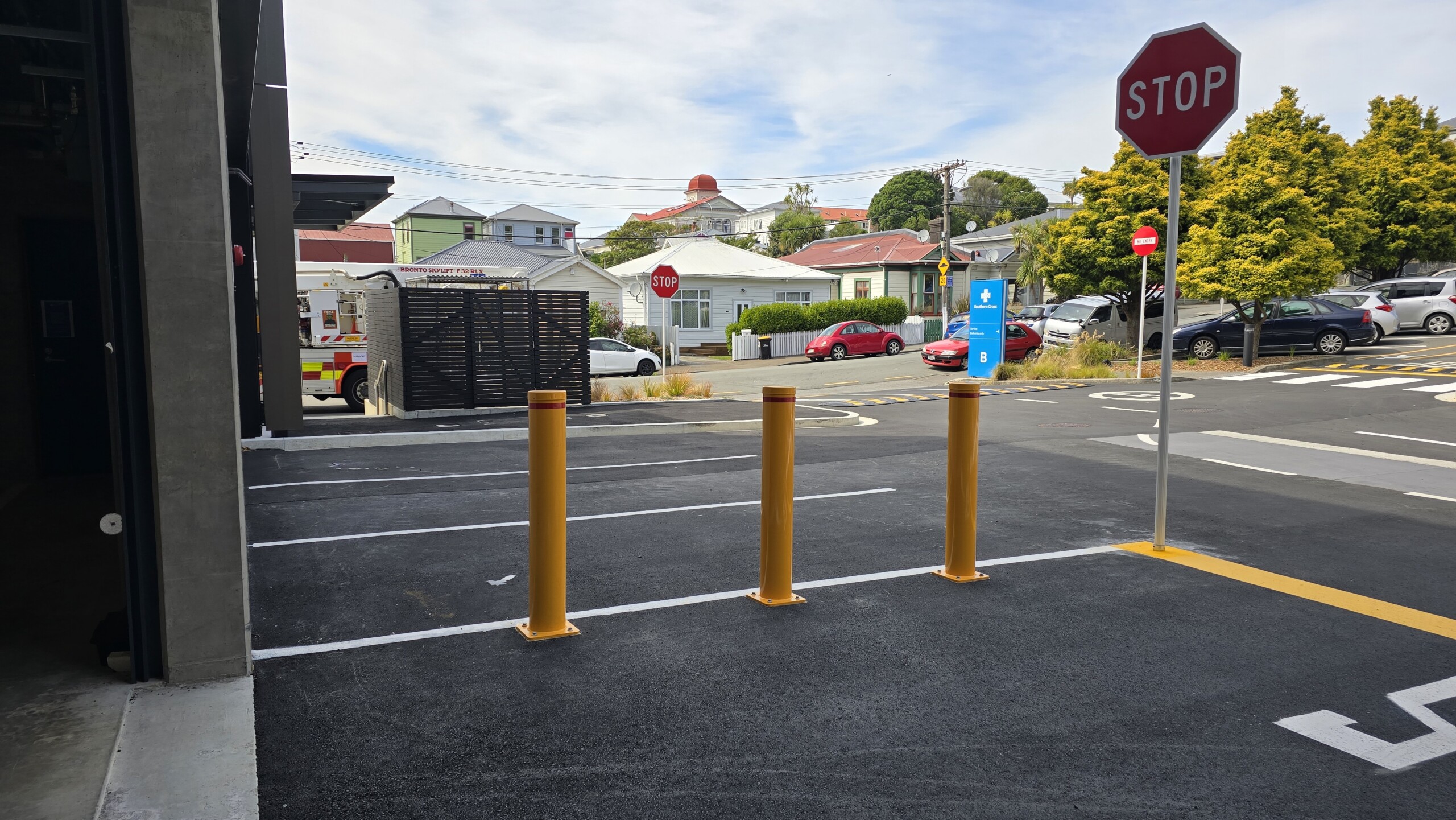

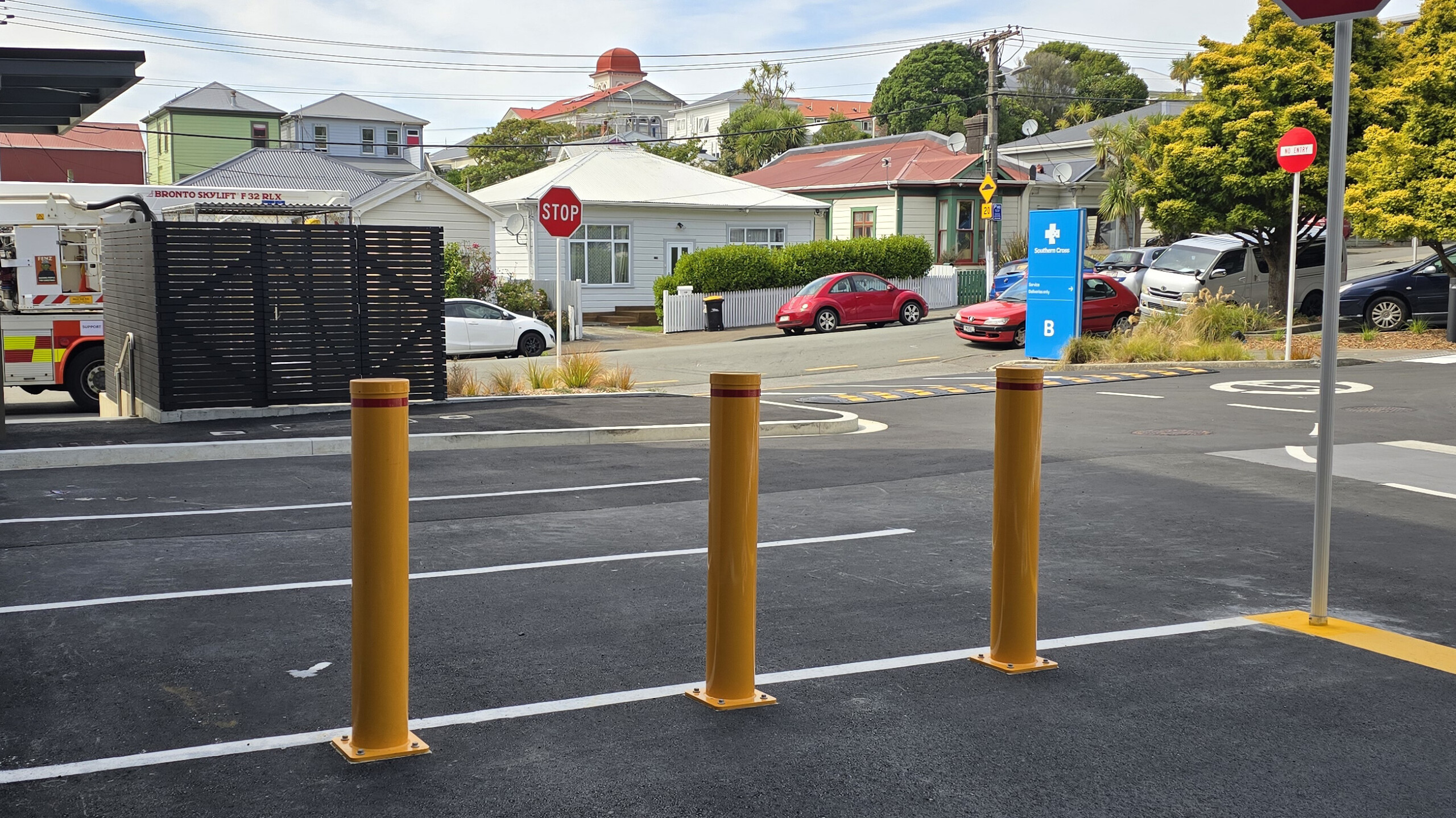

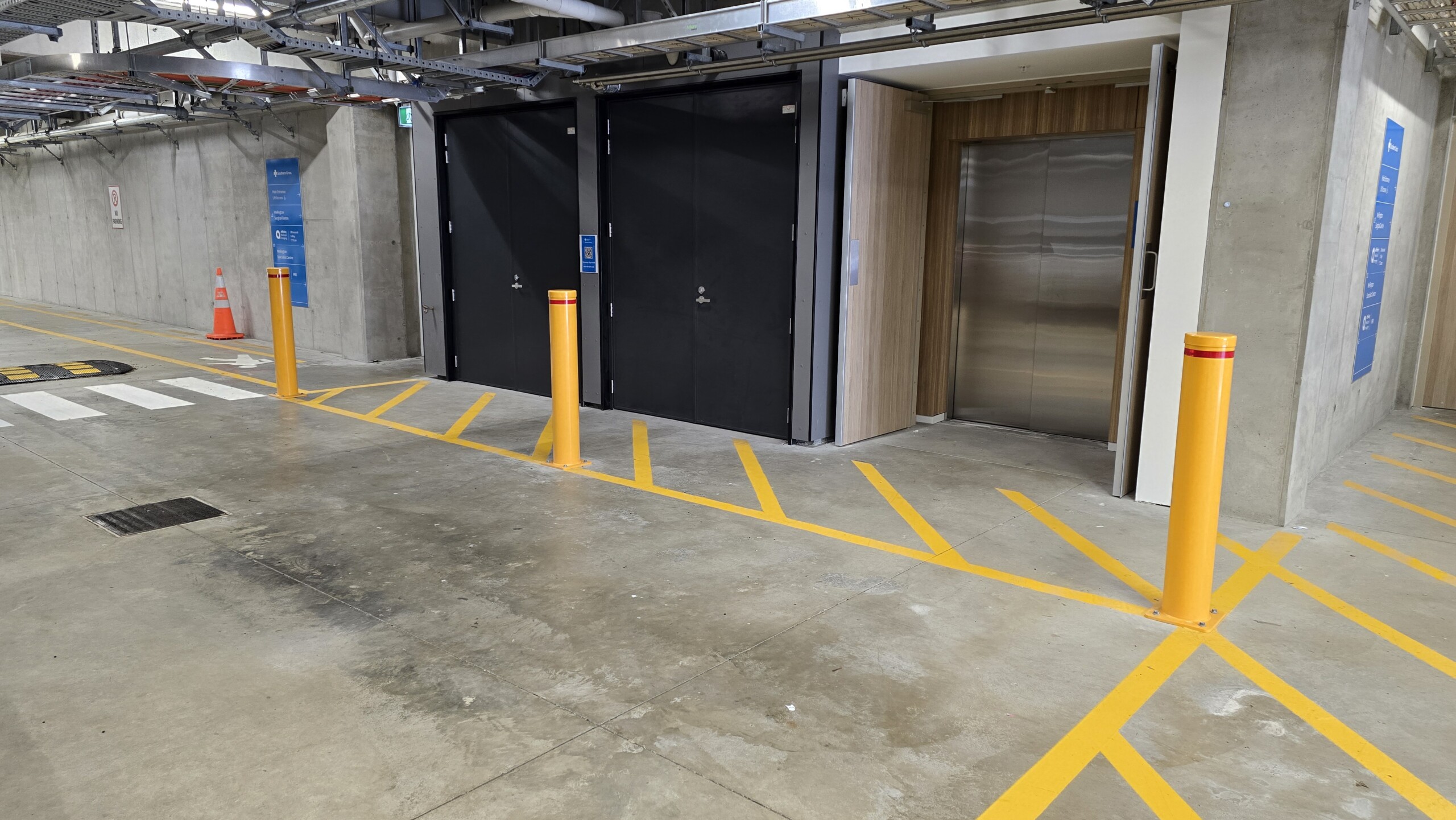

- Available in a Plain finish (for a discreet look) or hi-vis Yellow Powder Coating for optimum traffic and pedestrian awareness
- Knock-on flat steel caps can be removed to allow concrete filling (if required)
- Compliant with AS/NZS 1170.1 Section 3.8
- 10 Year Warranty
Dimensions
- ø115mm: 1100mm (H) / 16kg
- ø165mm: 1100mm (H) / 26kg
- ø220mm: 1200mm (H) / 50kg
Surface mounting makes them quick and easy to remove/replace in the event of significant damage.
If your existing surface is asphalt, for best strength, we recommend providing a concrete footing for bolting the bollard in place.
Please note, all pictures are indicative only.
Options
Spec Sheets
Options
Spec Sheets
FAQs.
What top/cap do these bollards come with?
Where are these best used?
What surface can these be mounted onto?
Are these suitable for inside and outside use?
How far apart should I install the bollards?
What is the recommended footing size for these bollards?
- 115mm diameter: 350(L) x 350(W) x 350(D)mm
- 165mm diameter: 400(L) x 400(W) x 400(D)mm
- 220mm diameter: 450(L) x 450(W) x 450(D)mm
