Speed Cushion – 75mm High.

CODE:

$295 – $350 per metre (ex GST)

Our 75mm-high Speed Cushion is a heavy duty speed calming device used to slow trucks and other heavy vehicles to less than 5km/h.

Unlike Speed Humps, Speed Cushions are a low-impact speed calmer – their longer profile spreads the weight across the ground making this a durable option for industrial areas where heavy vehicles – carrying heavy loads – are crossing regularly.

Designed to simulate the effect of typical asphalt humps, Speed Cushions are also effective for slowing cars and utes in addition to trucks and larger vehicles.

  • Slows cars and trucks in shared areas
  • Disperses the weight load making for a less abrupt bump
  • Modular design

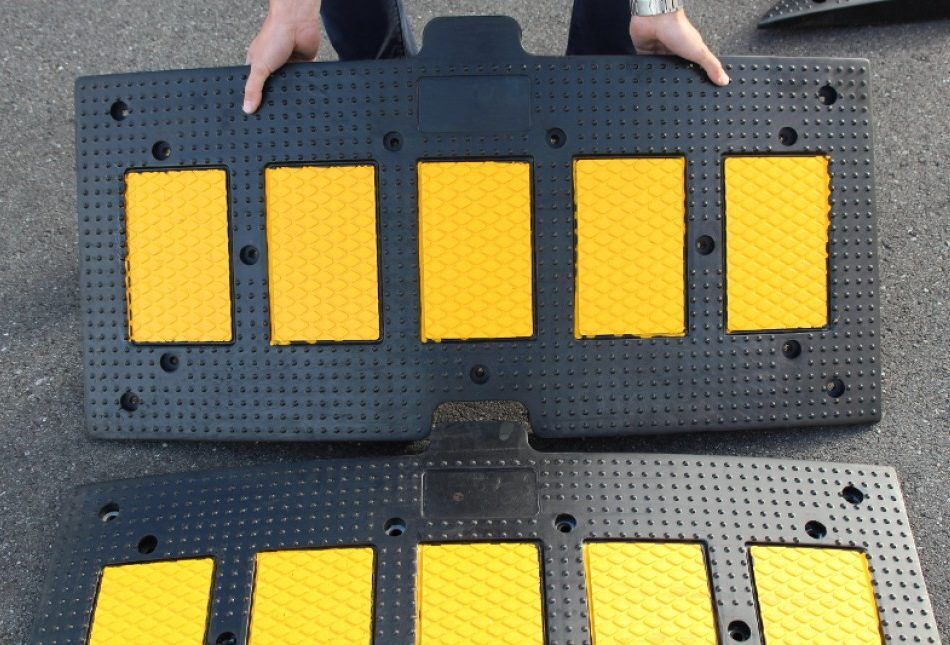

  • Convenient interlocking system can be configured to any length
  • Bolt down application makes for easy removal or relocation if required
  • Middle sections feature hi-vis yellow panels

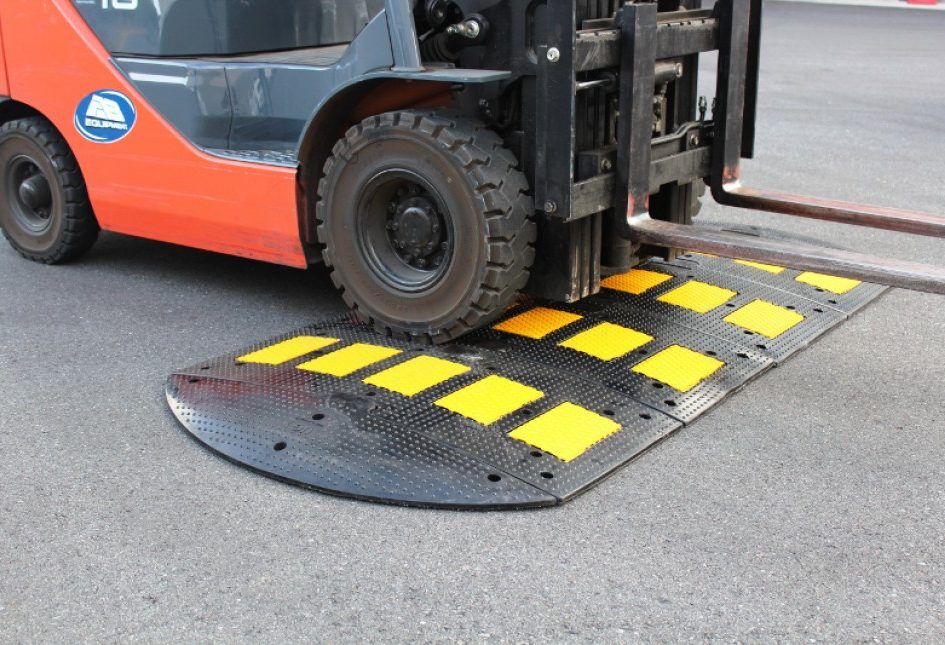

  • Forklift-passable

To slow vehicles to 10-20km/h, check out our 50mm High Speed Cushion.

Options
Videos
Spec Sheets
Options
Code
Description
Size
49-SCLM

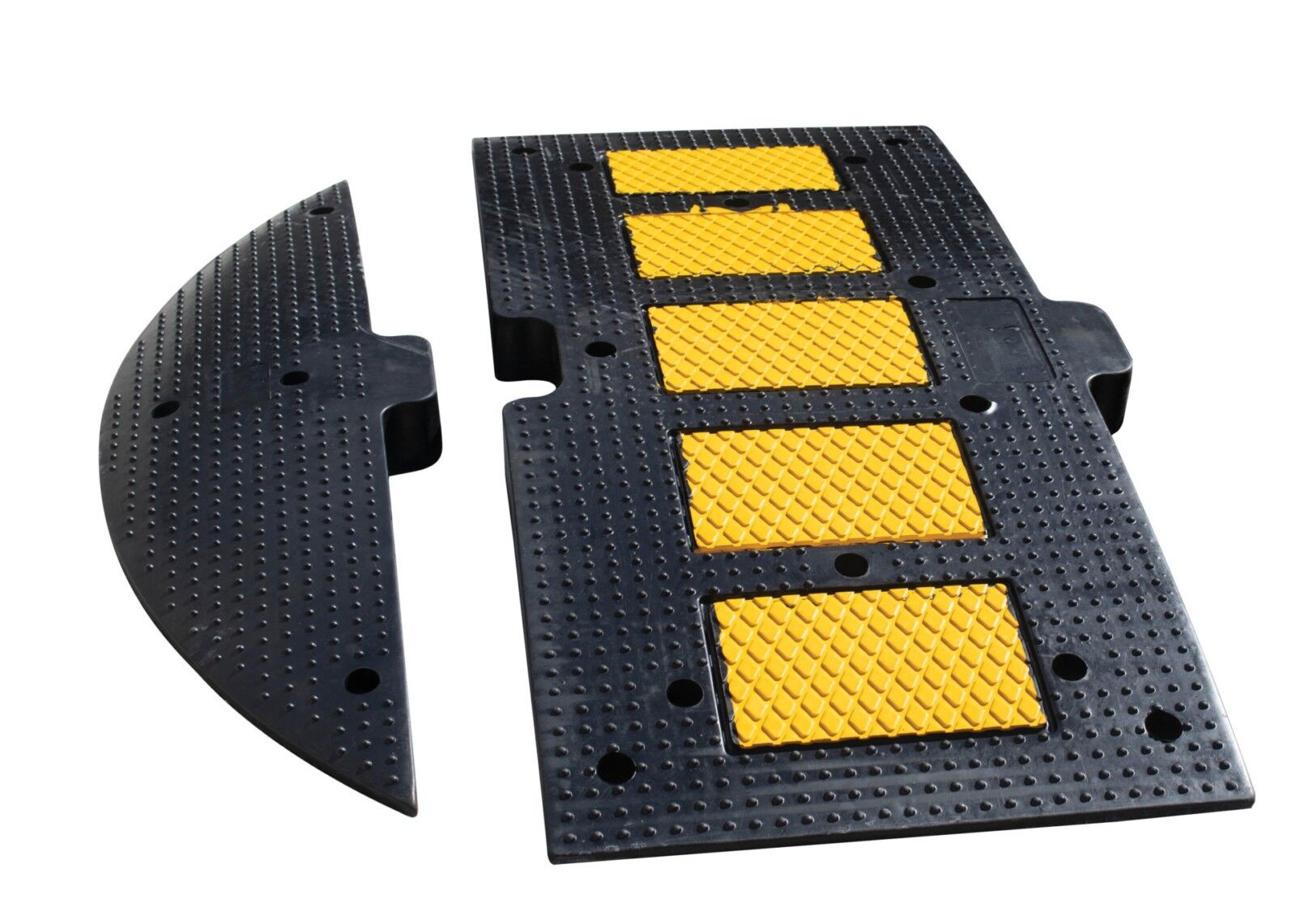

Speed Cushion - 75mm High Centre Module
500(W) x 1100(L) x 75mm(H)
49-SCLE
Speed Cushion - 75mm High End Cap
250(W) x 1100(L) x 75mm(H)
49-FBL
Fasteners for Bitumen - 13 fasteners per module, 4 per end cap
M10 x 100 C/Screw & Plug + washer
49-CF10100
Fasteners for Concrete - 13 fasteners per module, 4 per end cap
M10 x 100mm Anka Screw + washer
49-BCA
Bondurox Adhesive for fixing to bitumen/concrete
Videos
spacer


Speed Cushions | Overview

spacer


Speed Humps vs Cushions vs Cushion Pads – What’s the difference?

spacer


Speed Calmers | Range Overview

Spec Sheets
Title
Size
Download
Vanguard-Speed-Cushion-75mm-Spec-Sheet.pdf
352kB
Download
Vanguard-Group-Catalogue-Page-87-Speed-Cushion-75mm-high
96kB
Download

FAQs.

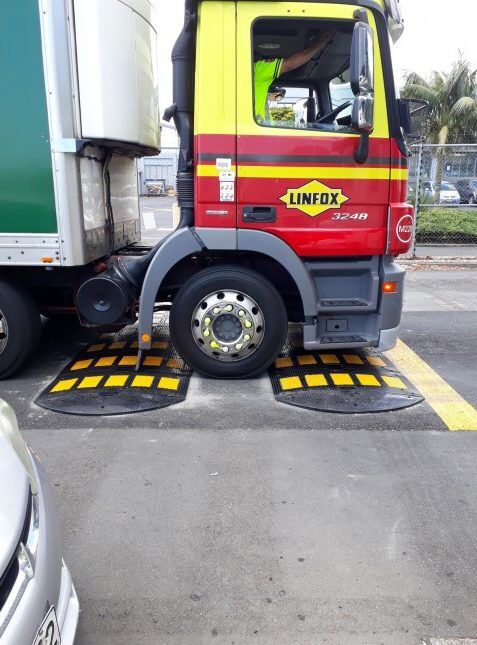

Are Speed Cushions suitable for heavy vehicles such as trucks carrying freight containers?

Yes – due to their large surface area, when installed on solid concrete or asphalt, speed cushions can handle heavy vehicles, including trucks carrying fully loaded shipping containers. For best results, the speed cushions should be positioned so that trucks drive straight over them; avoiding corners and turns will maximise their lifespan.

How does this product adapt to different vehicle sizes?

Its elongated profile provides a graduated slowing effect, minimising the jolt on larger vehicles while still effectively controlling speed.

Is this system suitable for routes used by forklifts?

Yes, it's crafted to be forklift-passable, ensuring that warehouse operations continue without interruption.

Can the speed control system be tailored to specific road dimensions?

Absolutely, the modular design allows for easy length adjustments to match various road widths and conditions.

How visible is the system to drivers?

With its high-visibility yellow panels, it stands out to alert drivers in advance, promoting safer navigation.

Is the system difficult to install or move?

Not at all, it's designed for quick installation and can be easily relocated thanks to its modular, lightweight construction.
