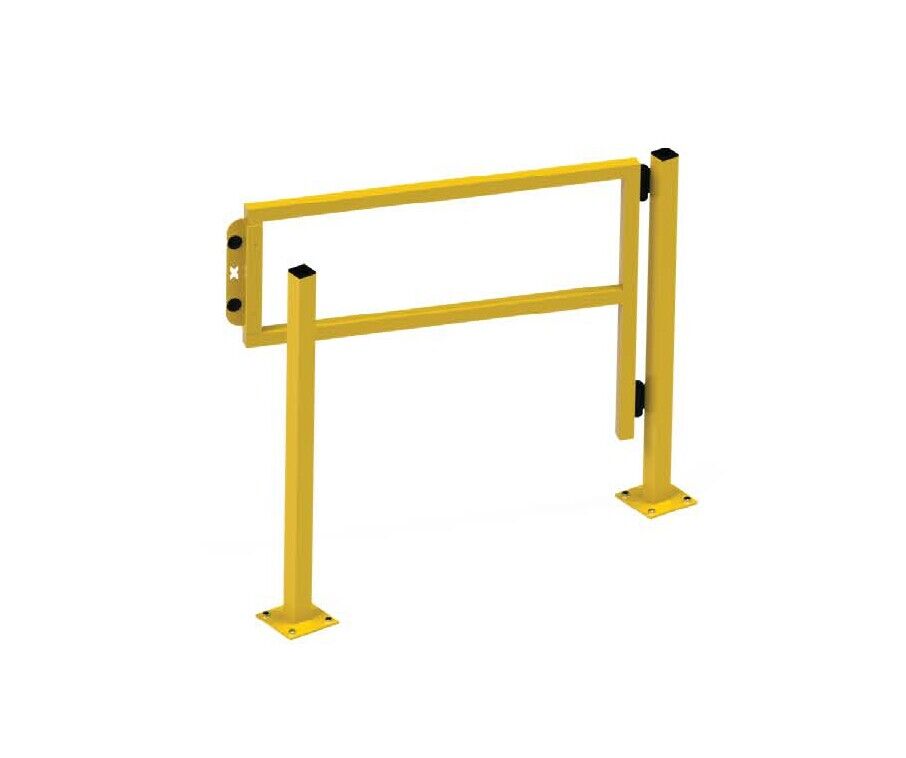

PedSafe Pause Gate.
CODE:

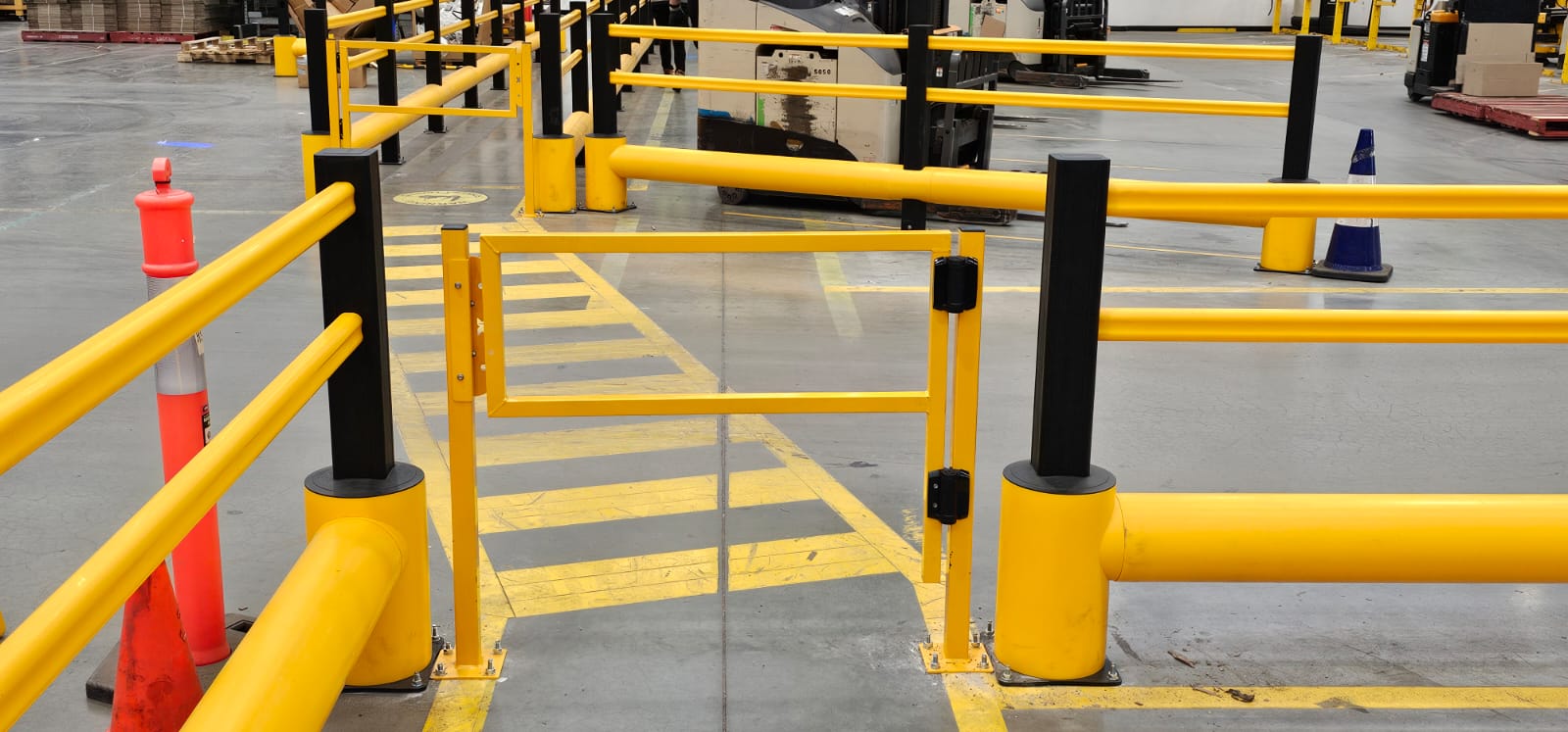

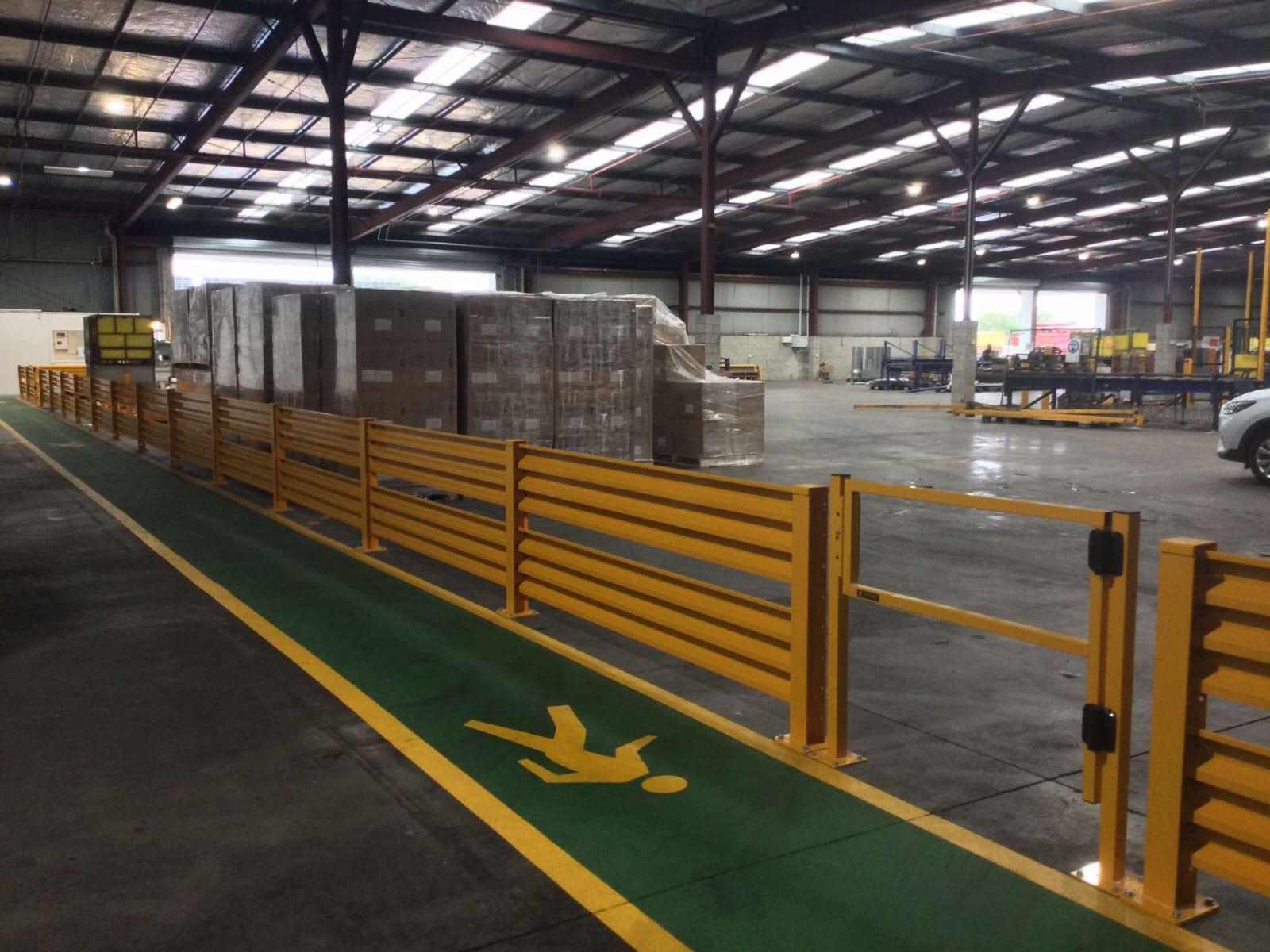

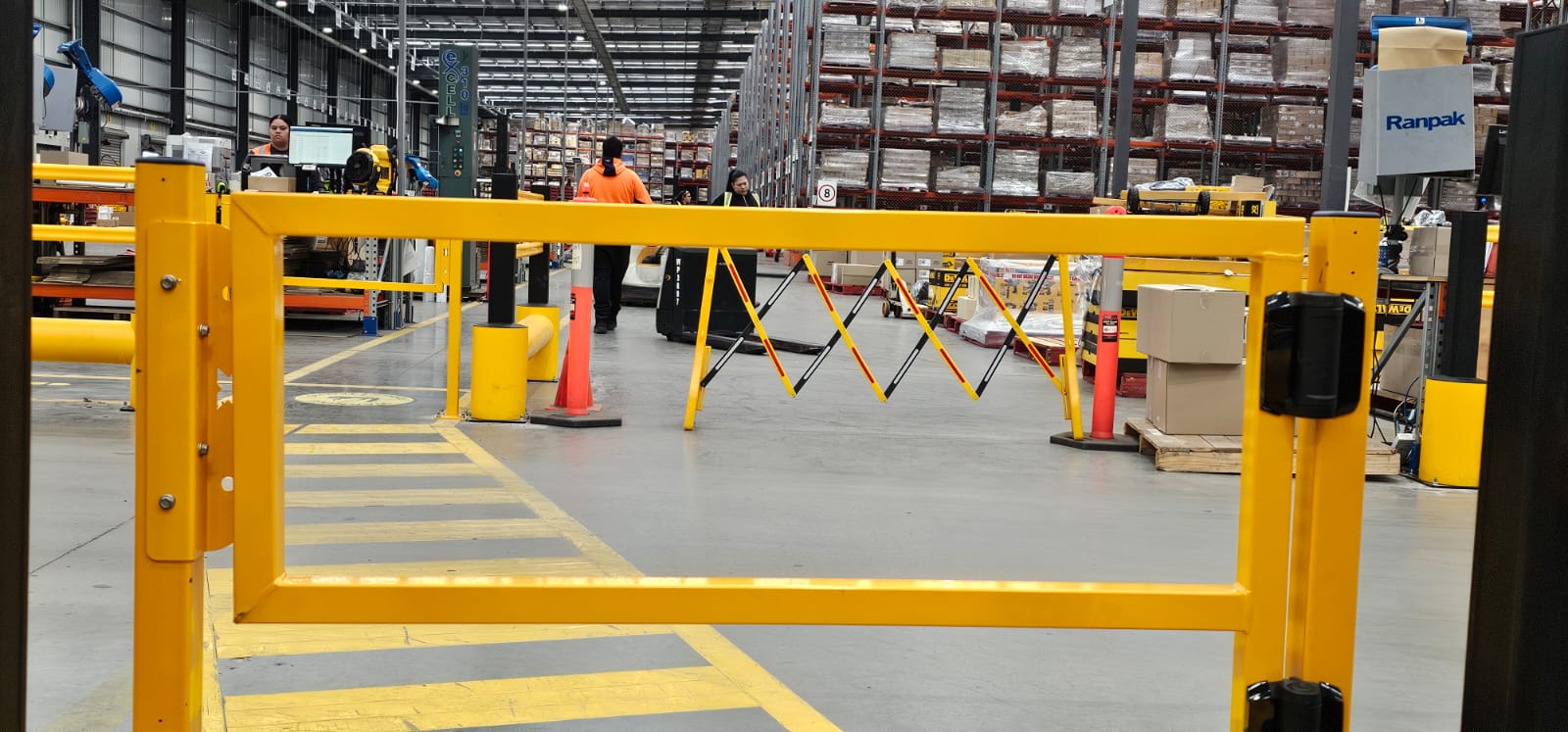

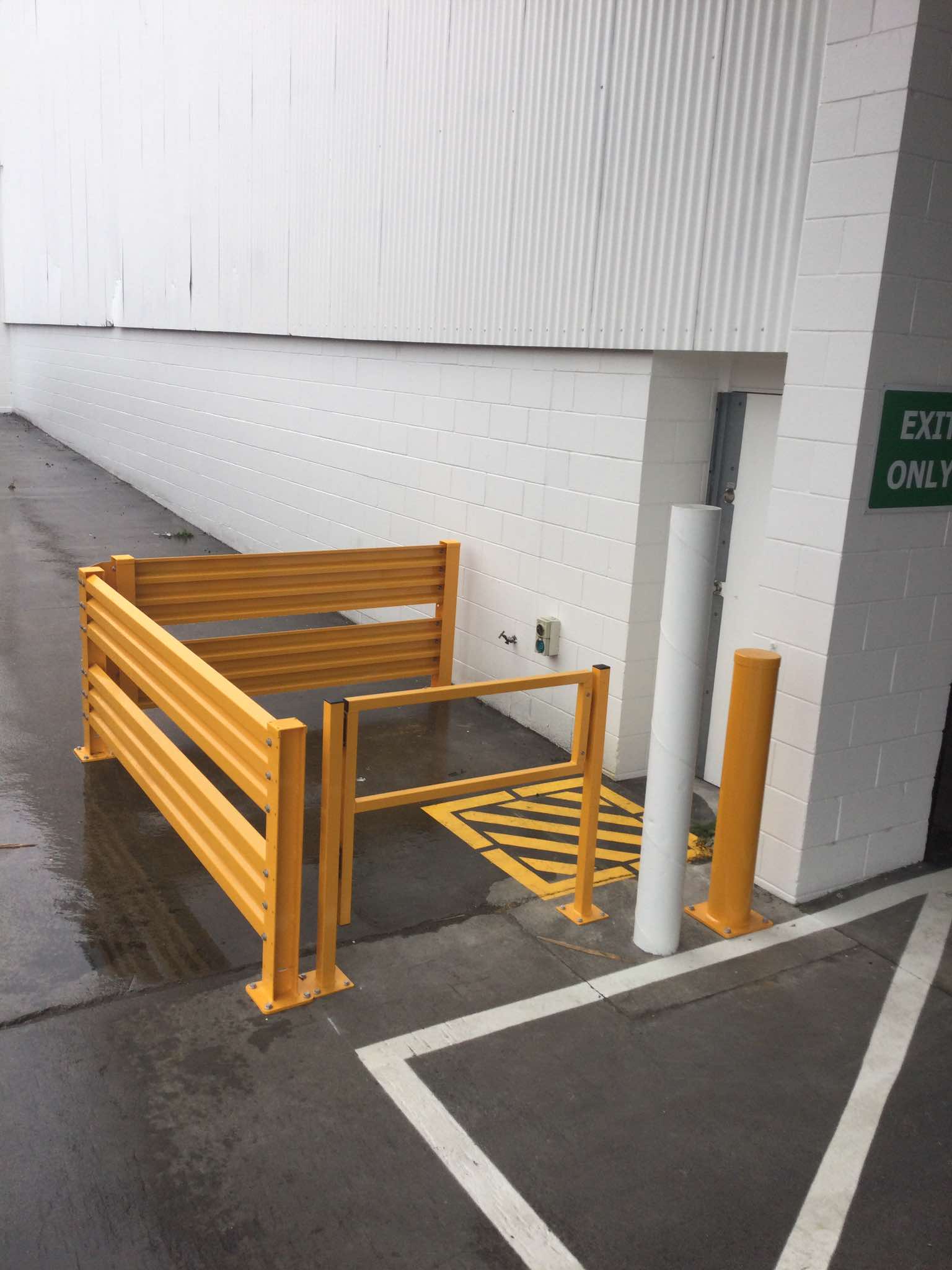

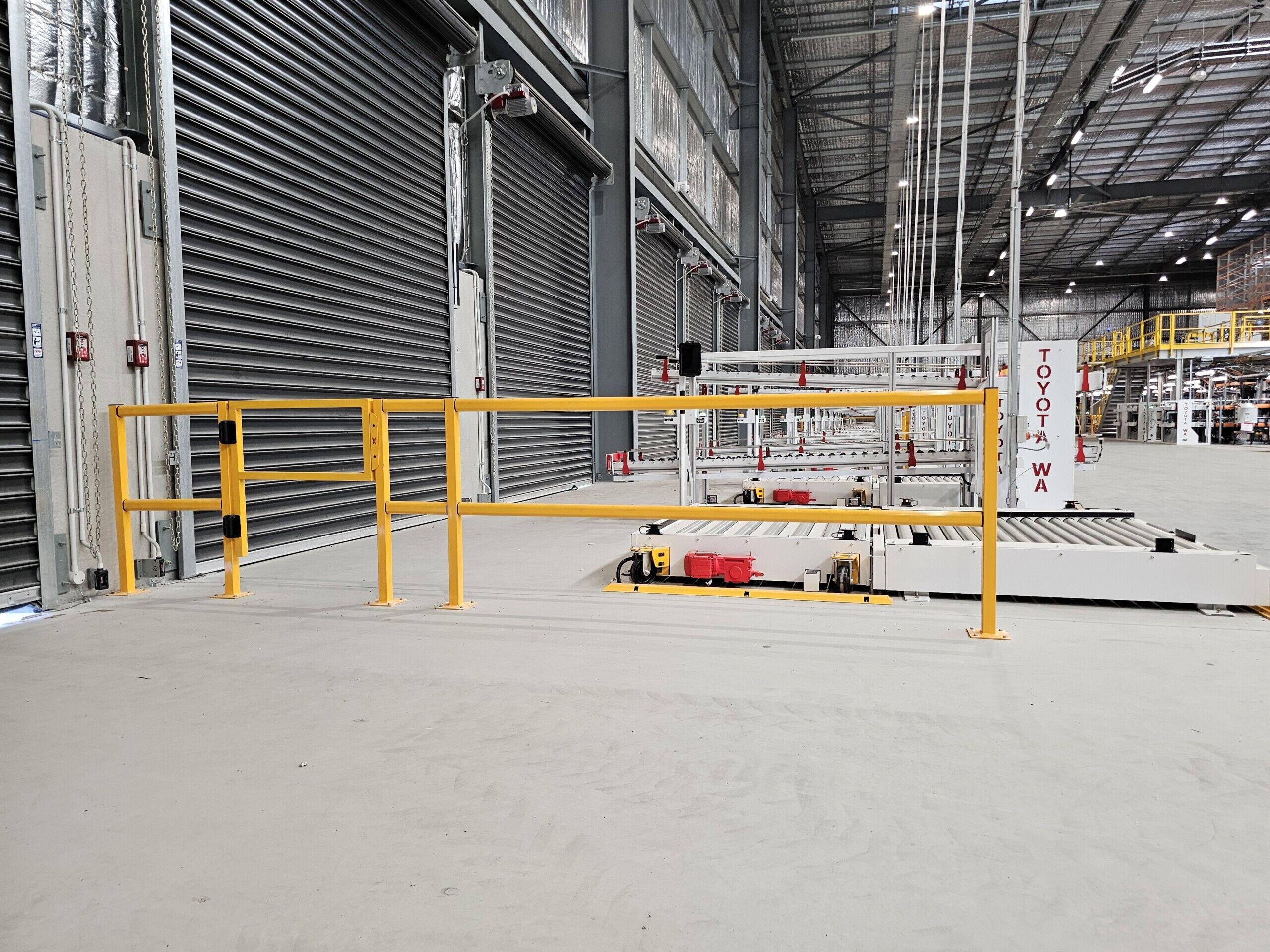

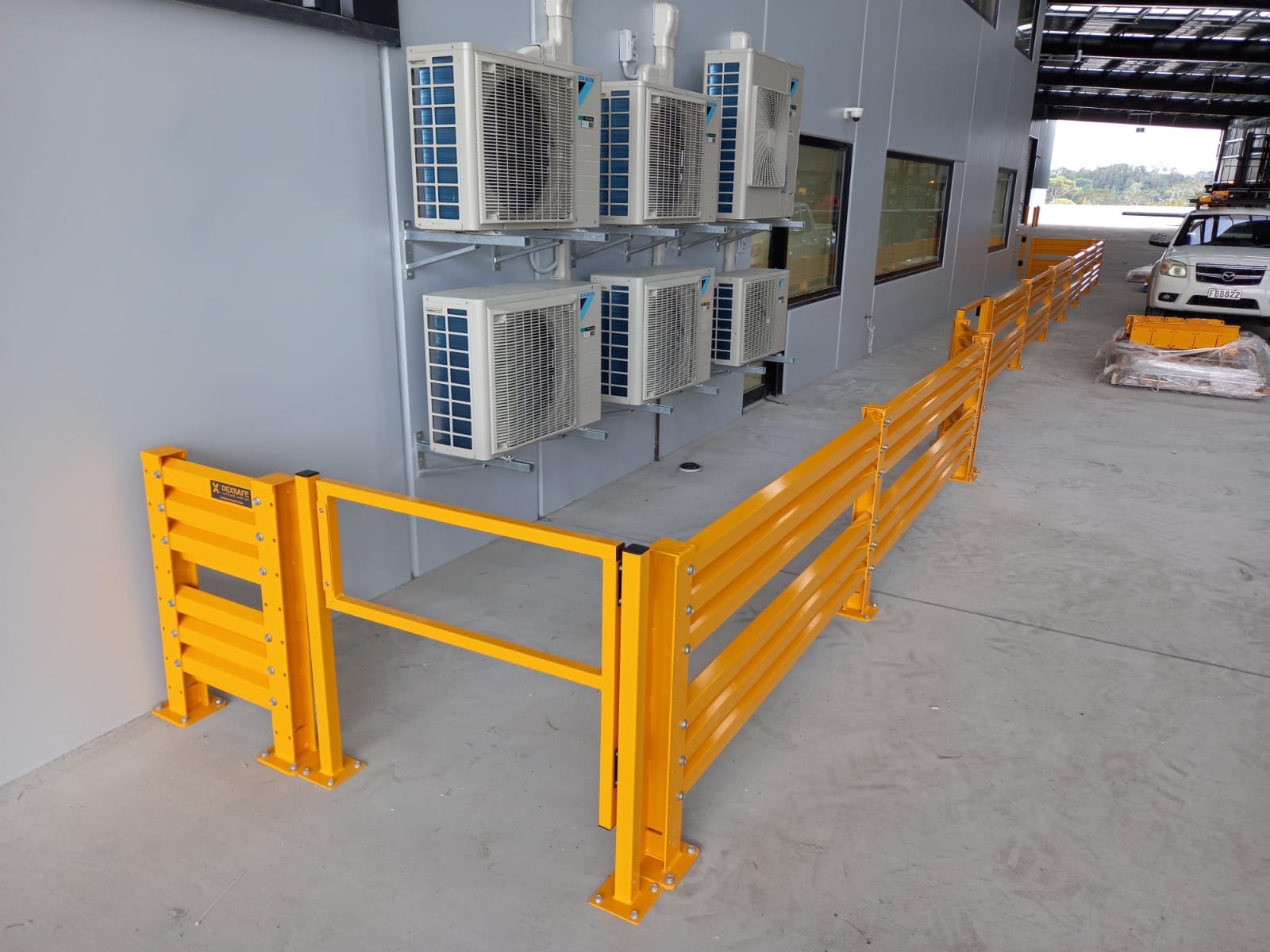

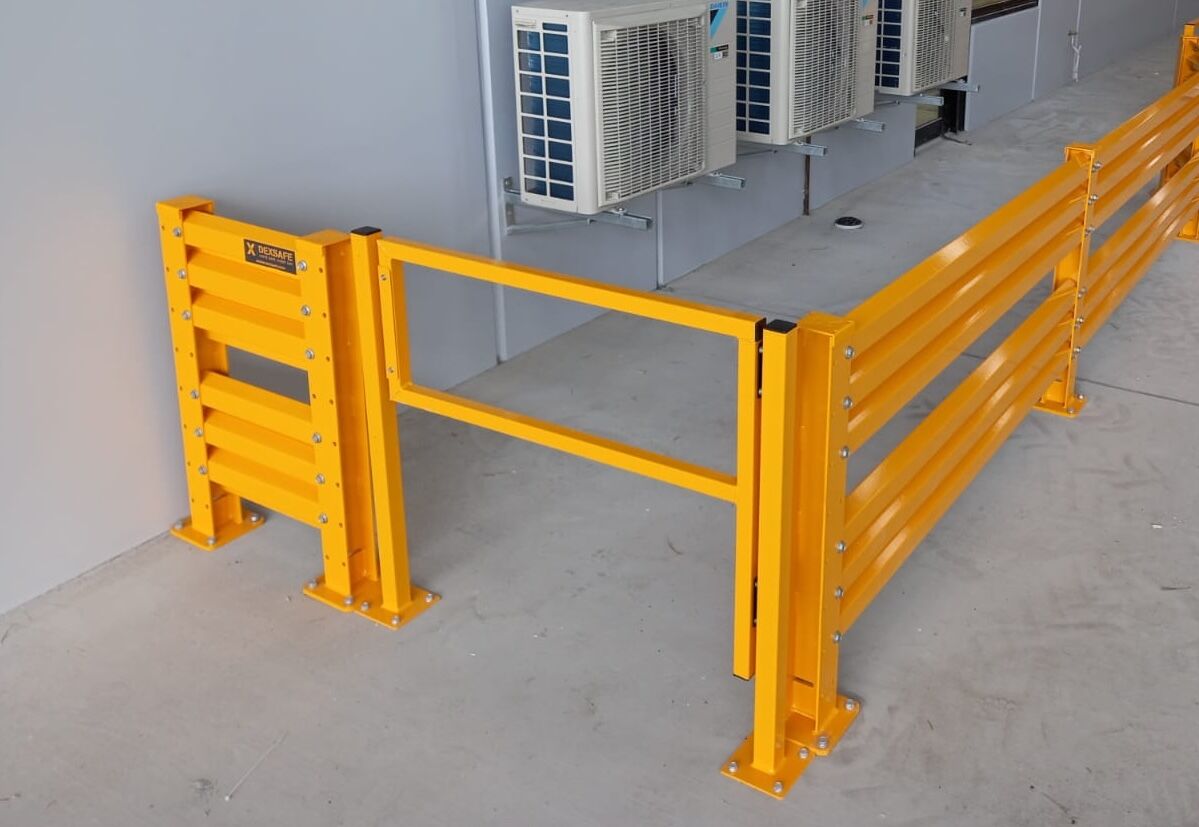

The PedSafe Pause Gate is a self-closing pedestrian swing gate designed to pause pedestrians before entering a shared zone or hazardous area.
Specifications:
- Steel construction with zinc plating and yellow powder coated finish
- Fully welded assembly (no additional welding required)
- Self-closing with adjustable tension
- Compatible with all PedSafe handrail configurations
- Easily replaceable hinges or slam plates
- Slam plate or lockable options available (see options table below)
- Double swinging option with hydraulic hinges
- Soft close option available for high use areas
- Reversible design for left and right hanging
- Quick and easy to install
- Weather resistant
- Self-tapping fasteners

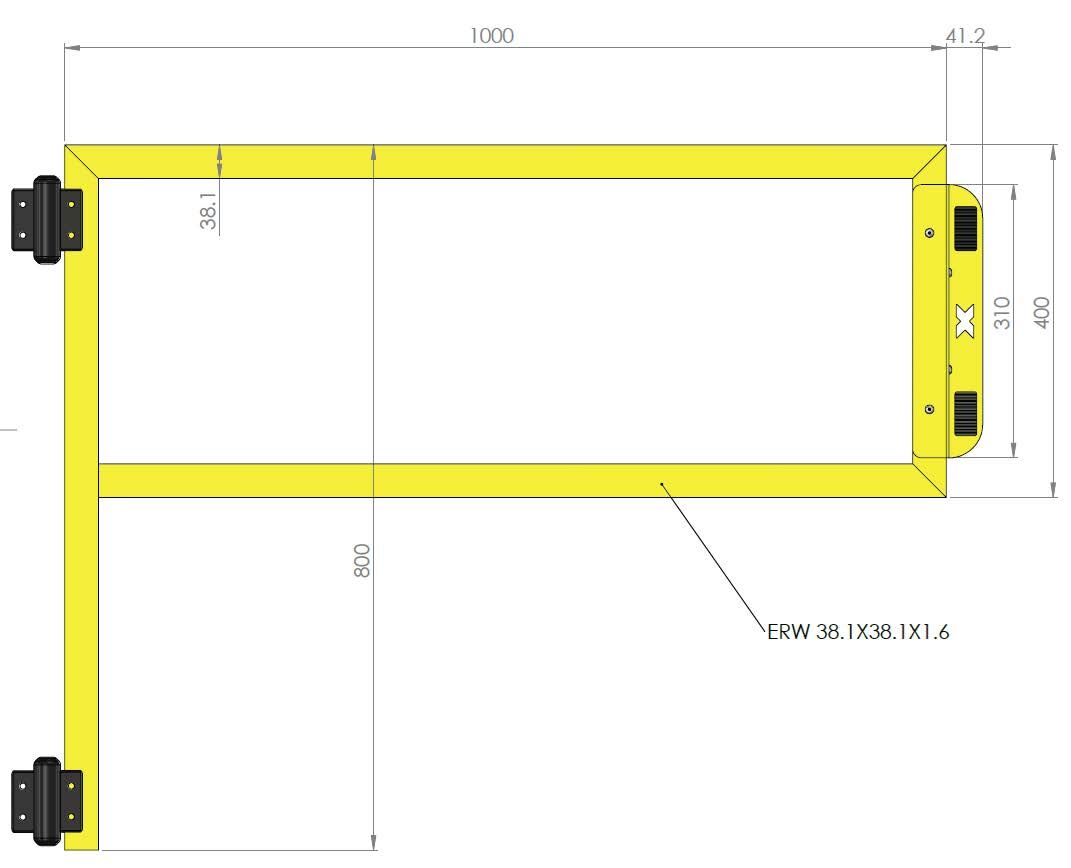

Configurations:
- Height: 400mm (800mm overall) suits standard safety sign size
- Length: 1000mm (custom lengths available)
- Depth: 38mm
Note: PedSafe gates are not recommended for vehicle impact.
Options
Spec Sheets
Options
Code
Description
Width
Height
Height (from ground)
BFPG800SP
PedSafe Pause Gate - Self-Close (w. Slam Plate) in Galv/Yellow
800mm
400mm
1000mm
BFPG1000SP
PedSafe Pause Gate - Self-Close (w. Slam Plate) in Galv/Yellow
1000mm
400mm
1000mm
BFPG1200SP
PedSafe Pause Gate - Self-Close (w. Slam Plate) in Galv/Yellow
1200mm
400mm
1000mm
PSP1000S
PedSafe Post in Galv/Yellow
1000mm
1000mm
