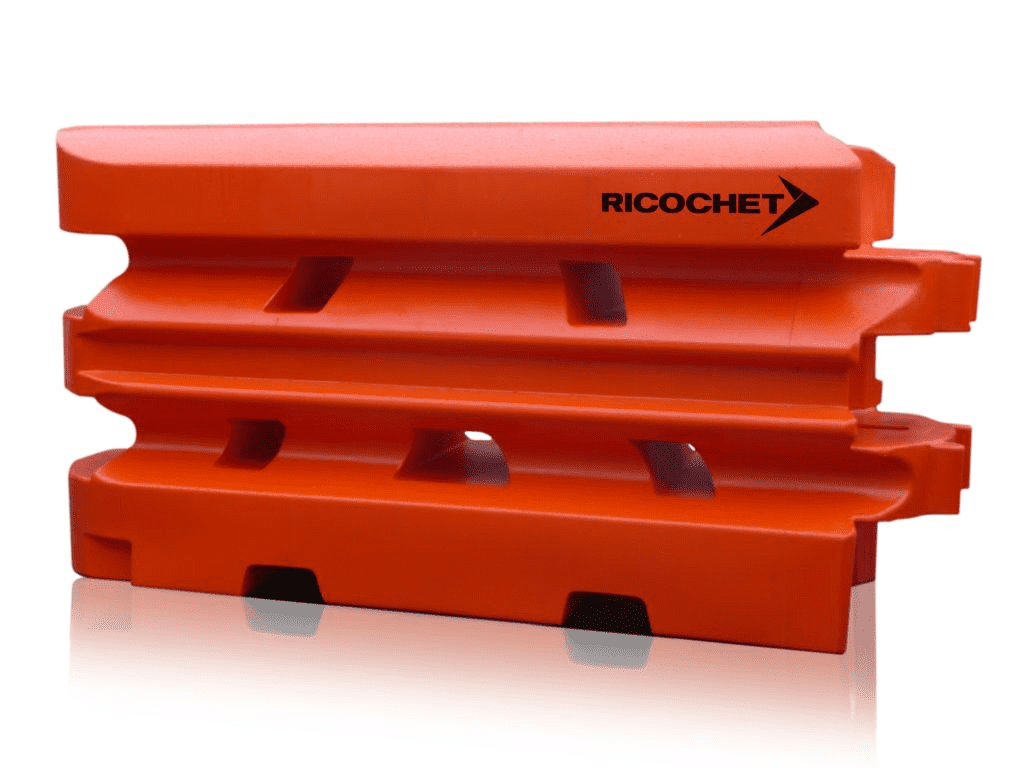

RICOCHET TL2 Water Filled Road Barrier.
CODE:
The RICOCHET Water Filled Road Barrier exemplifies superior design and engineering, producing one of the safest and strongest barriers in the world.

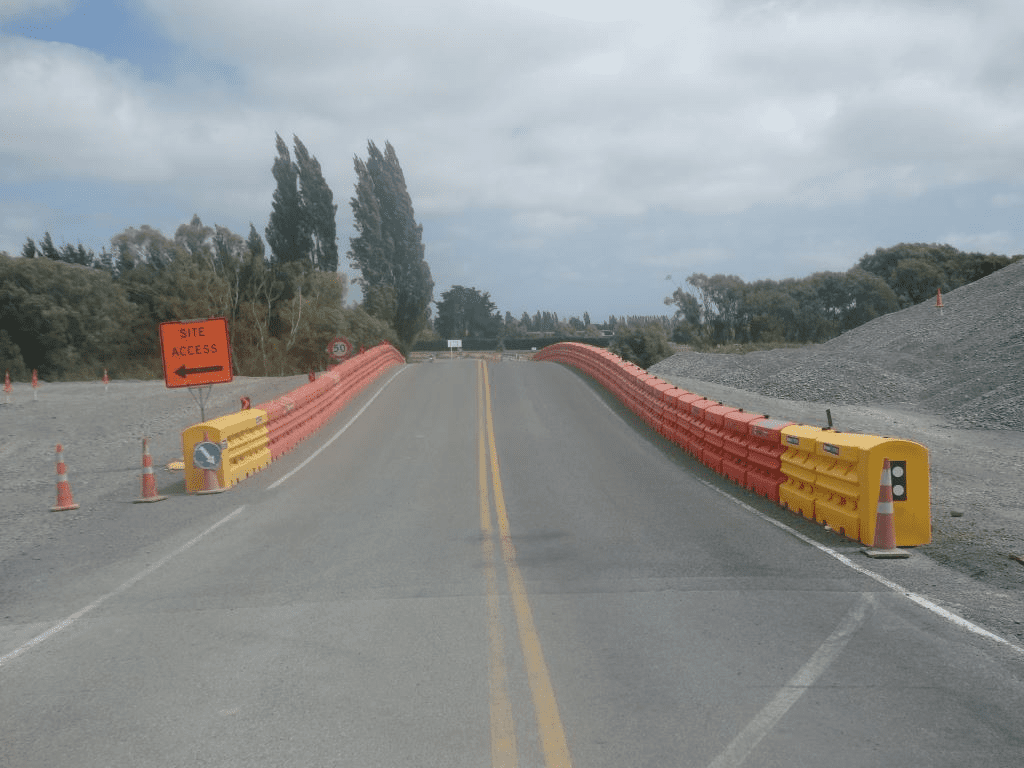

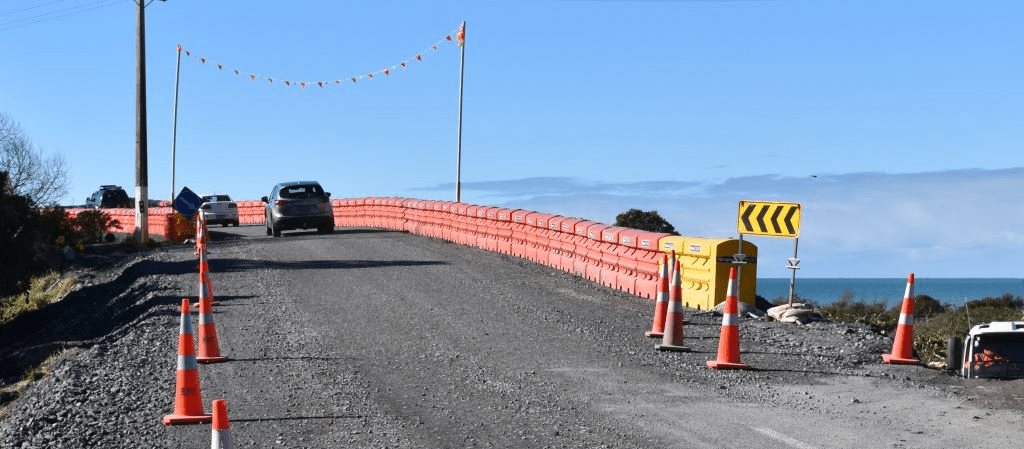

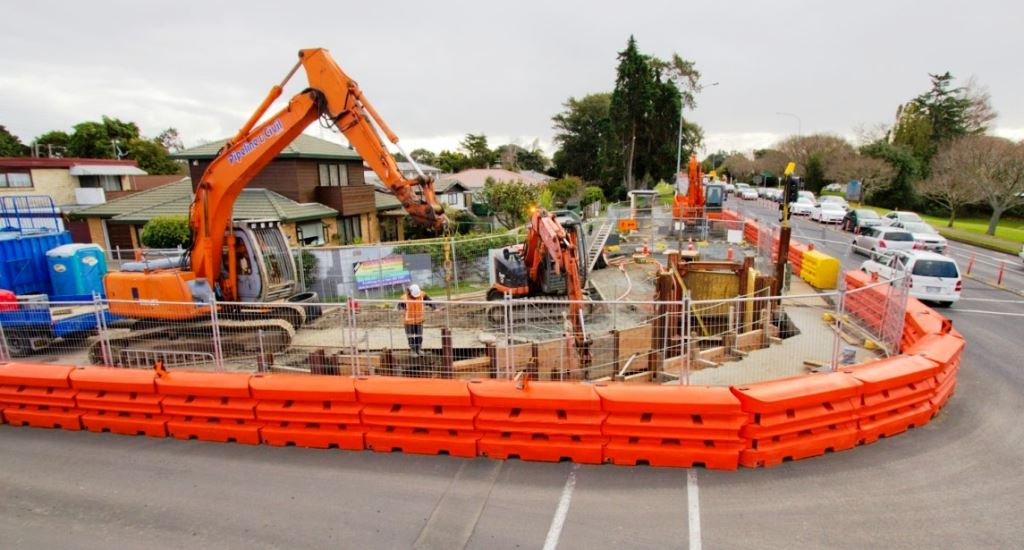

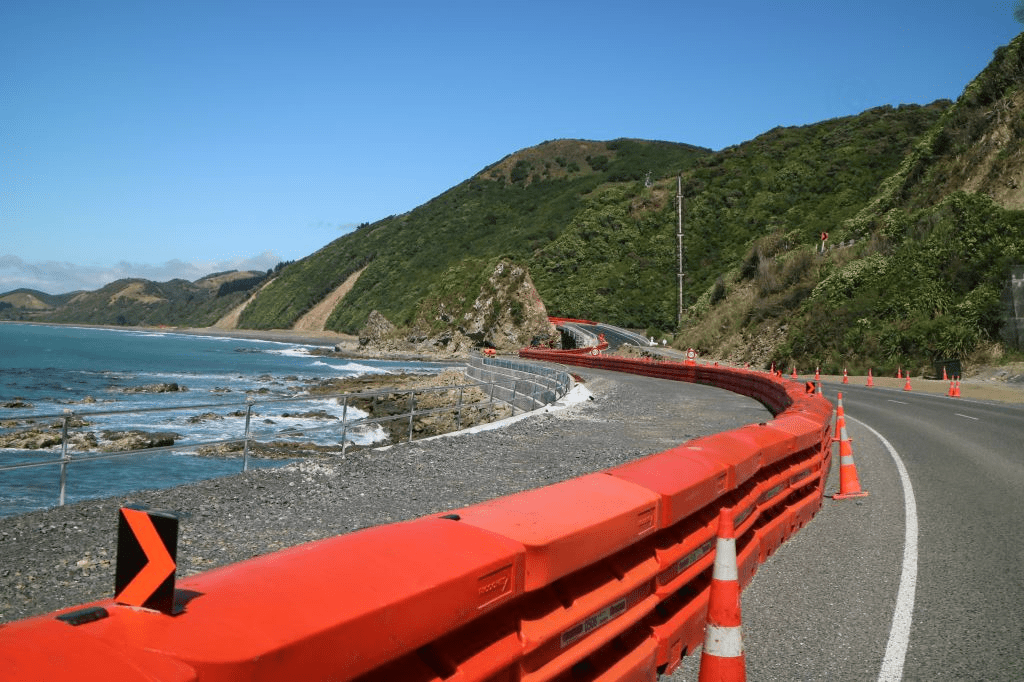

With a height of over one meter, these barriers are suitable for highway applications, pedestrian safety, crowd control, and site protection for below-ground works, among many other uses.
These barriers are distinguished by their strength, performance, ease of handling, and compliance with MASH certification requirements.
Key Features
- 1m high eliminating need for additional safety fencing, unlike other barriers
- Suitable for highways, pedestrian safety, crowd control, and site protection
- Features safe drainage points on each side without entering live traffic lanes
- Fill point is designed so water can be extracted if needed
- 2 x 22mm mounting holes for screens to reduce driver distraction caused by work zone activity

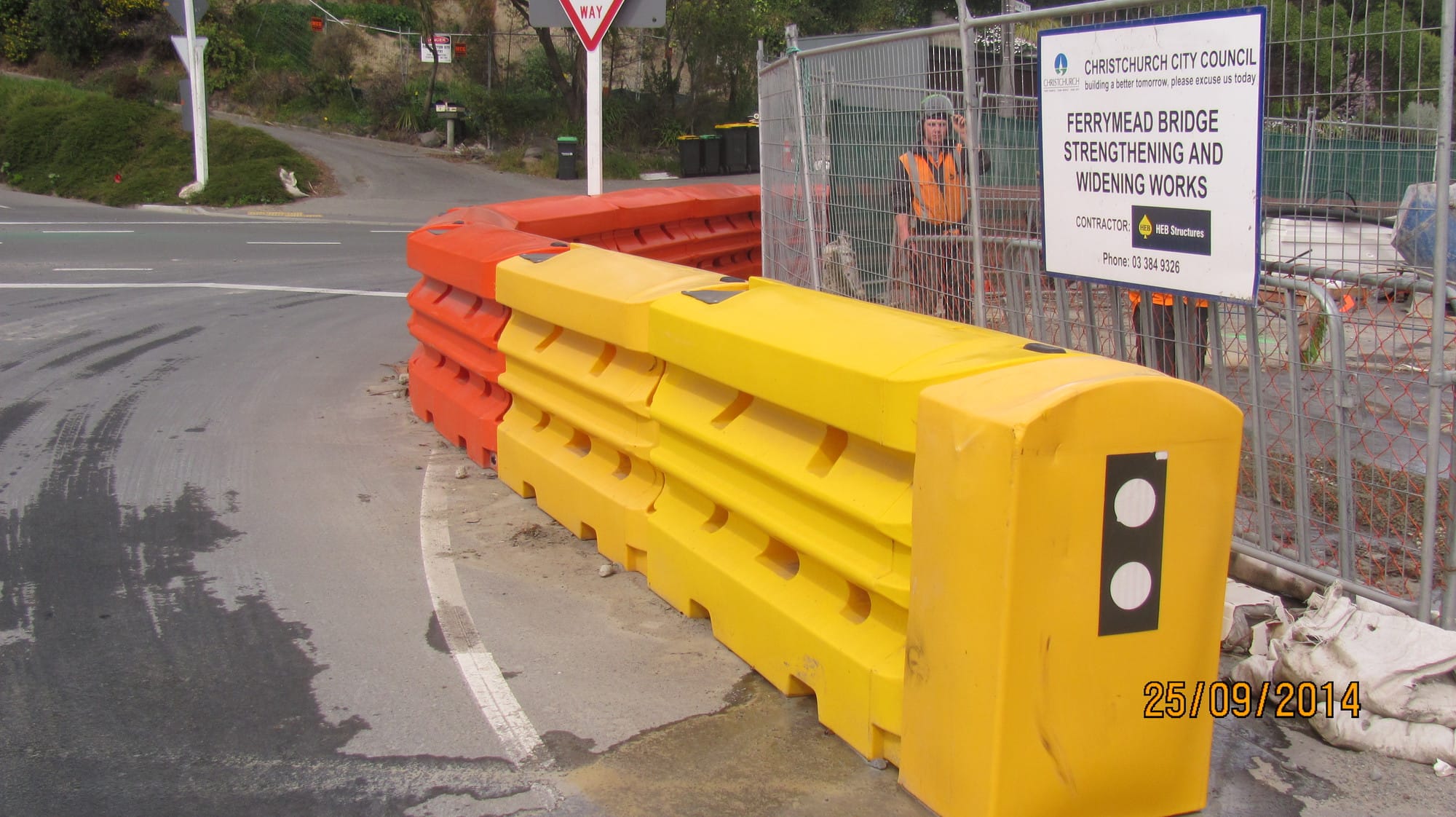

- Required end treatments consist of two barriers and one cap, providing a flat end surface for attaching safety delineation, and must not be water-filled
- MOQ 20 x 2m long units in orange
- 3-Year Warranty
Testing & Certification
- Rated for TL–2 (70km/hr) per AASHTO MASH–1 standards
- Meets internationally recognised MASH (Manual for Assessing Safety Hardware) standards
- Conforms to CoPTTM (section B6)
Technical Specifications
- Dimensions: 2000(L) x 1000(H) x 580(W) mm; interconnected length: 1.7m
- Weights: 62kg empty, 660kg filled
The RICOCHET Barrier manual is available on request – please email us at [email protected] to request a copy.
Options
Spec Sheets
Options
Code
Description
Colour
Size (mm)
2711-117
RICOCHET Water Filled Road Barrier
Orange
2000(L) x 1000(H) x 580(W)
2711-137
RICOCHET Water Filled Road Barrier
Yellow
2000(L) x 1000(H) x 580(W)
2711-118

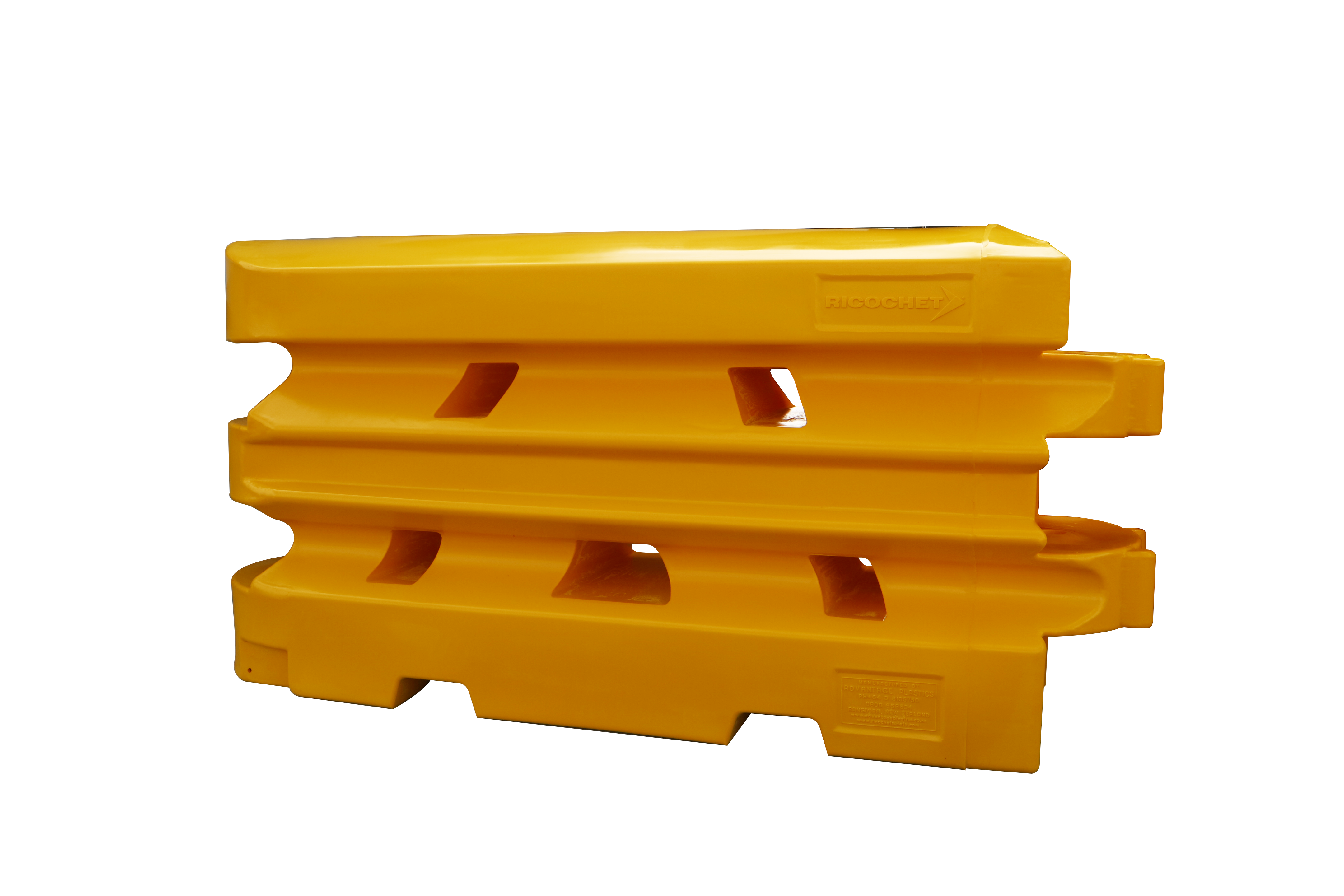

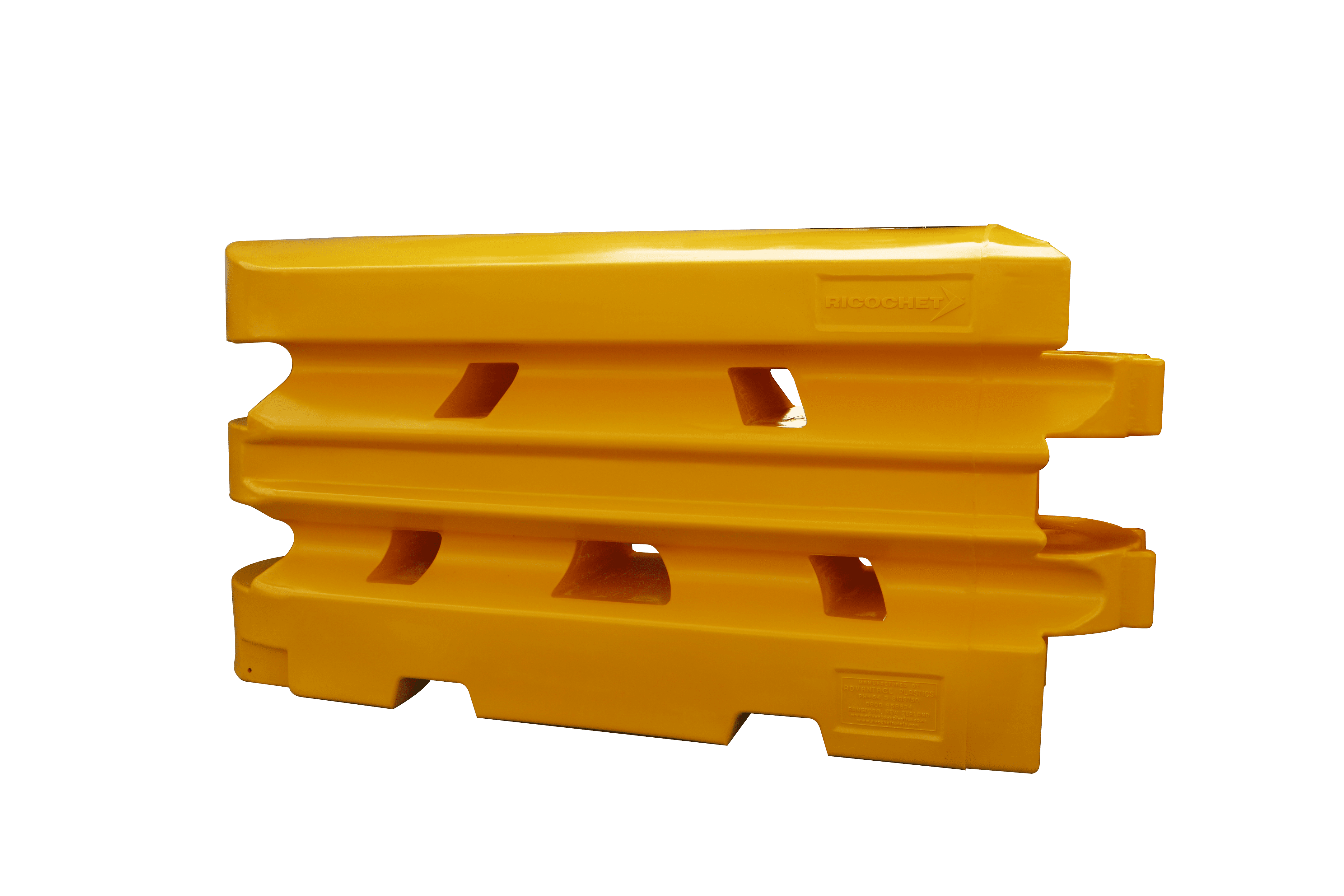

RICOCHET Water Filled Road Barrier - End Terminal
Yellow
2000(L) x 1000(H) x 580(W)
2711-119

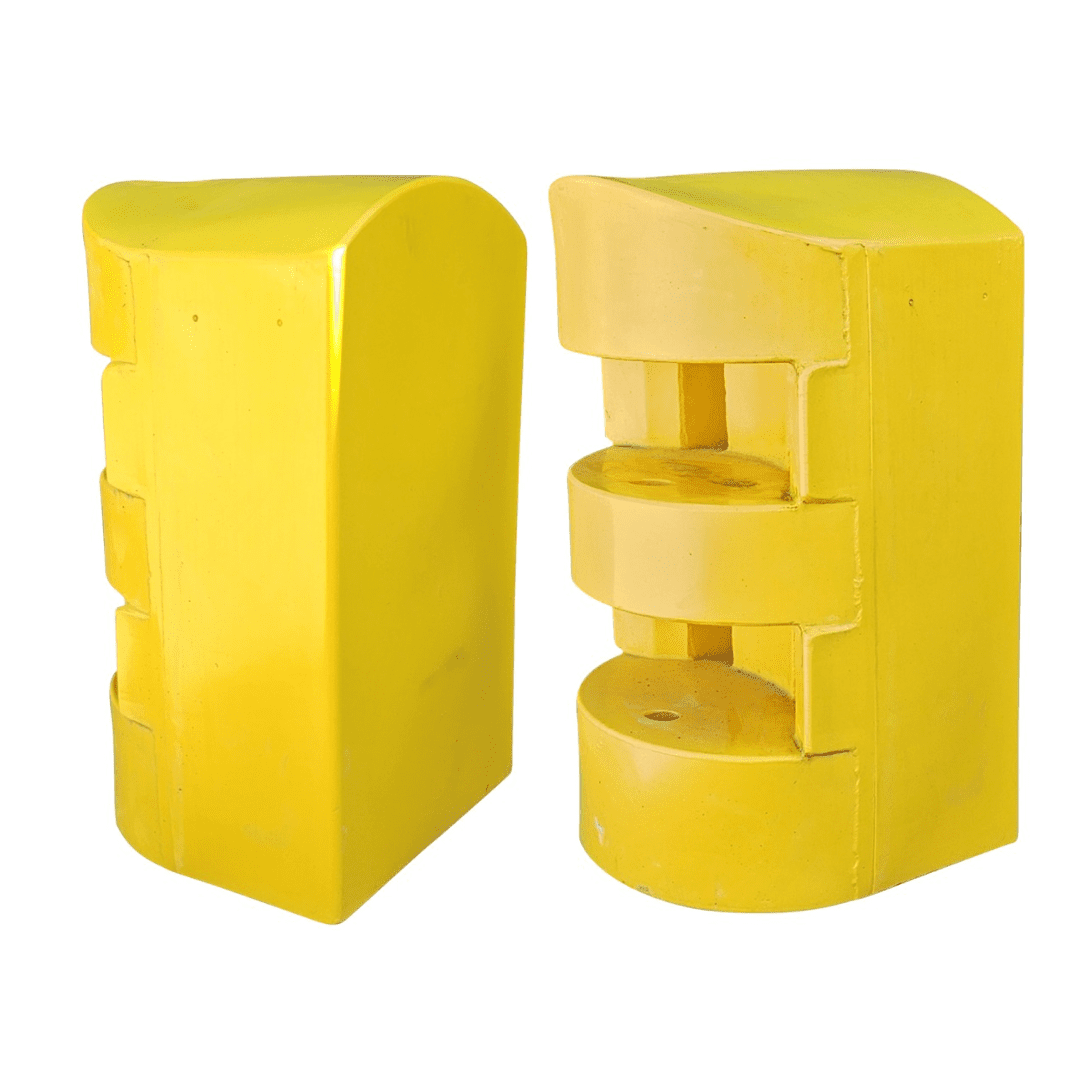

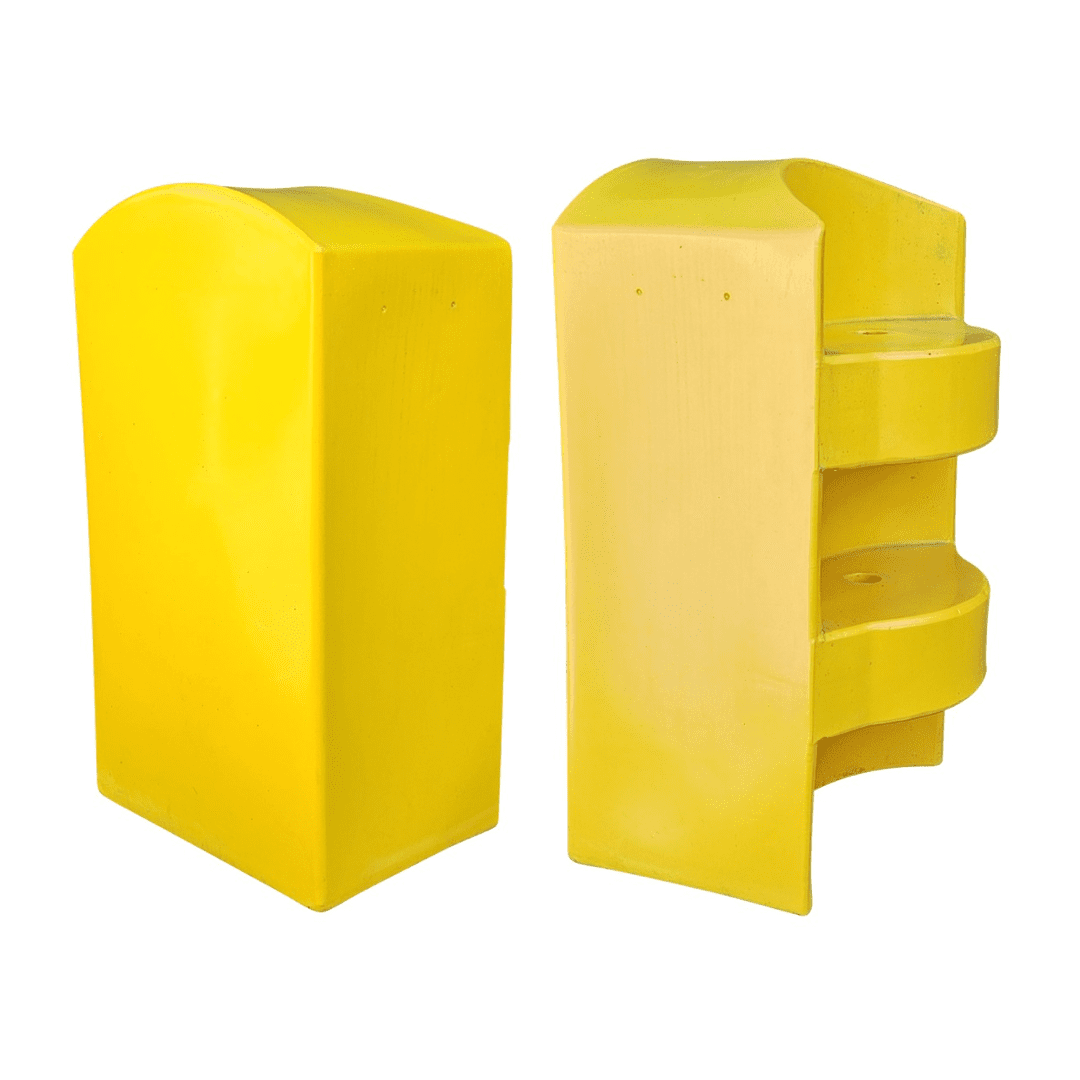

RICOCHET Water Filled Road Barrier - End Cap (Male)
Yellow
2711-120
RICOCHET Water Filled Road Barrier - End Cap (Female)
Yellow
