Stainless Steel Bollard – Hidden Base.
CODE:

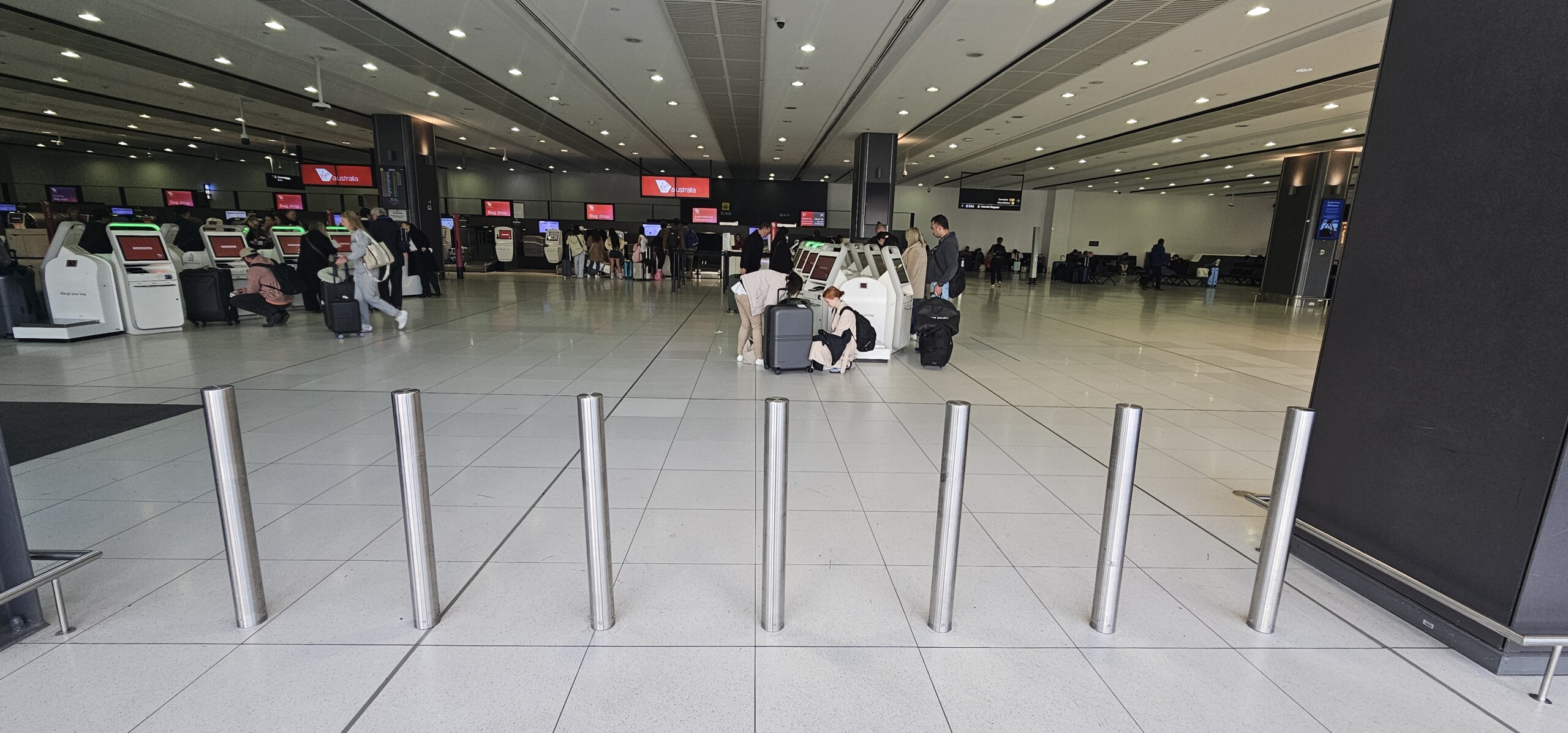

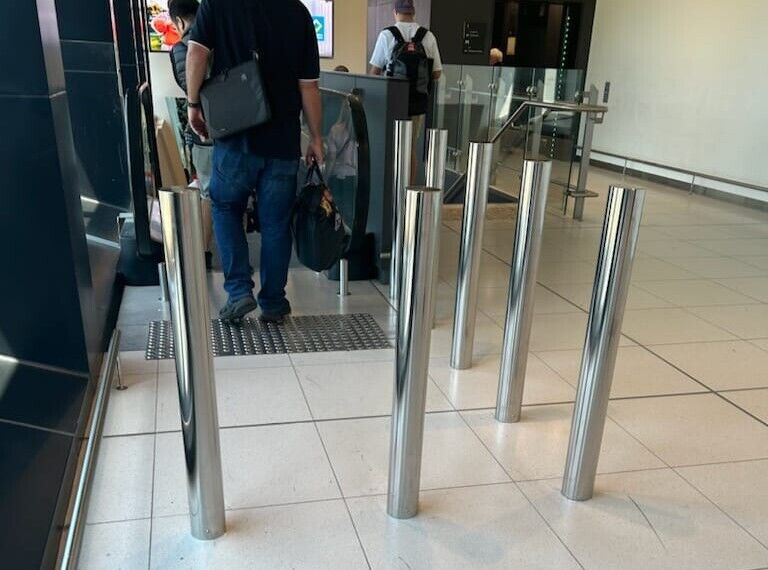

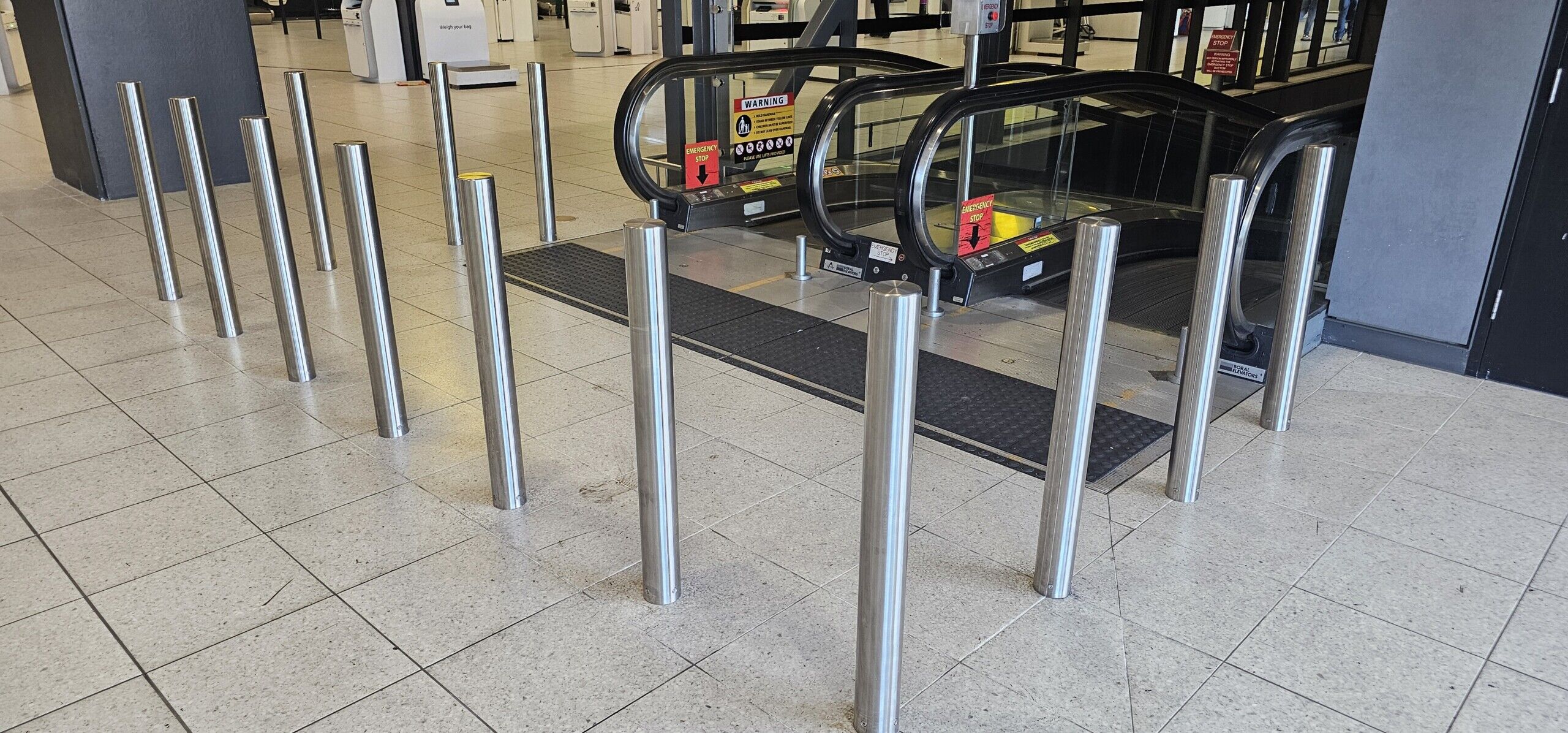

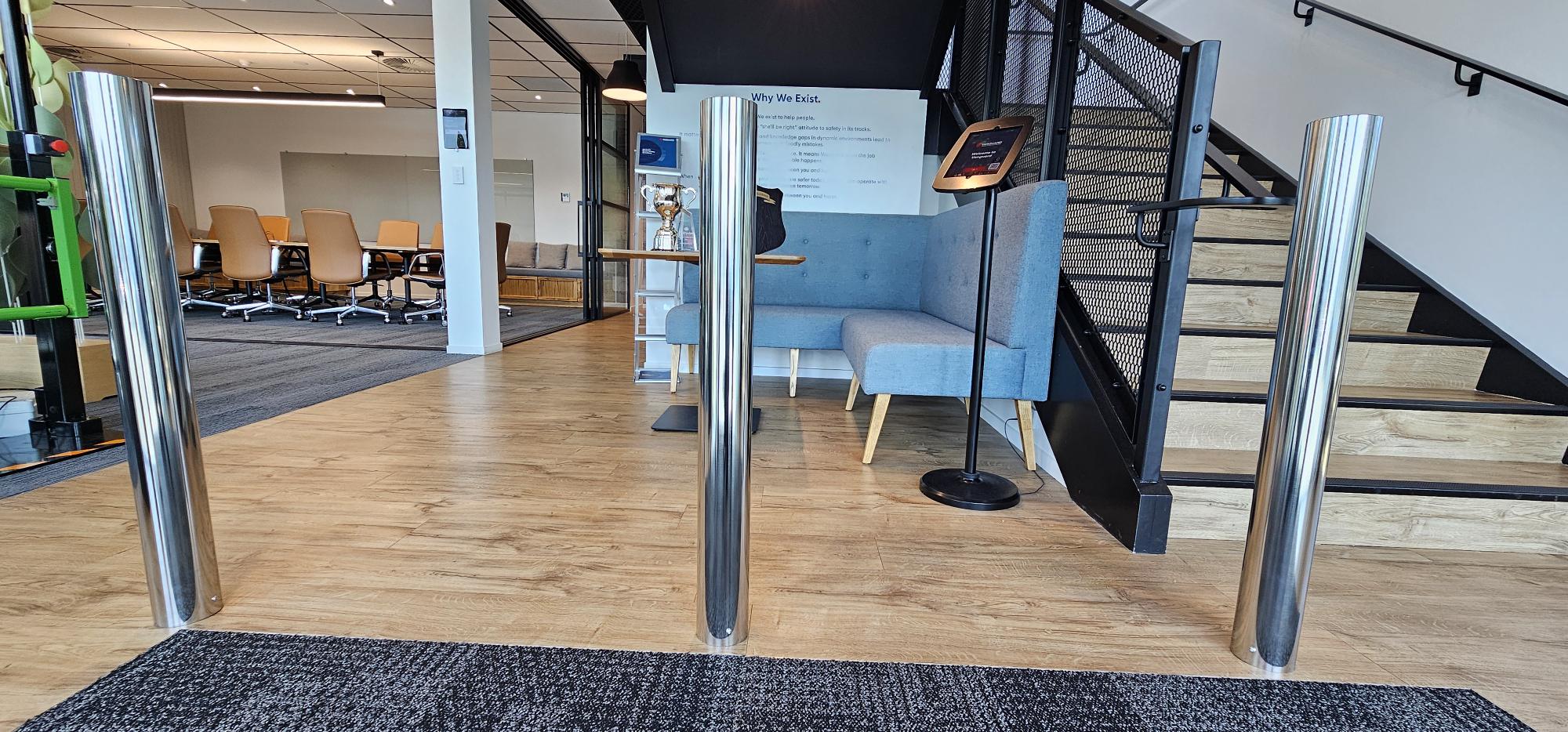

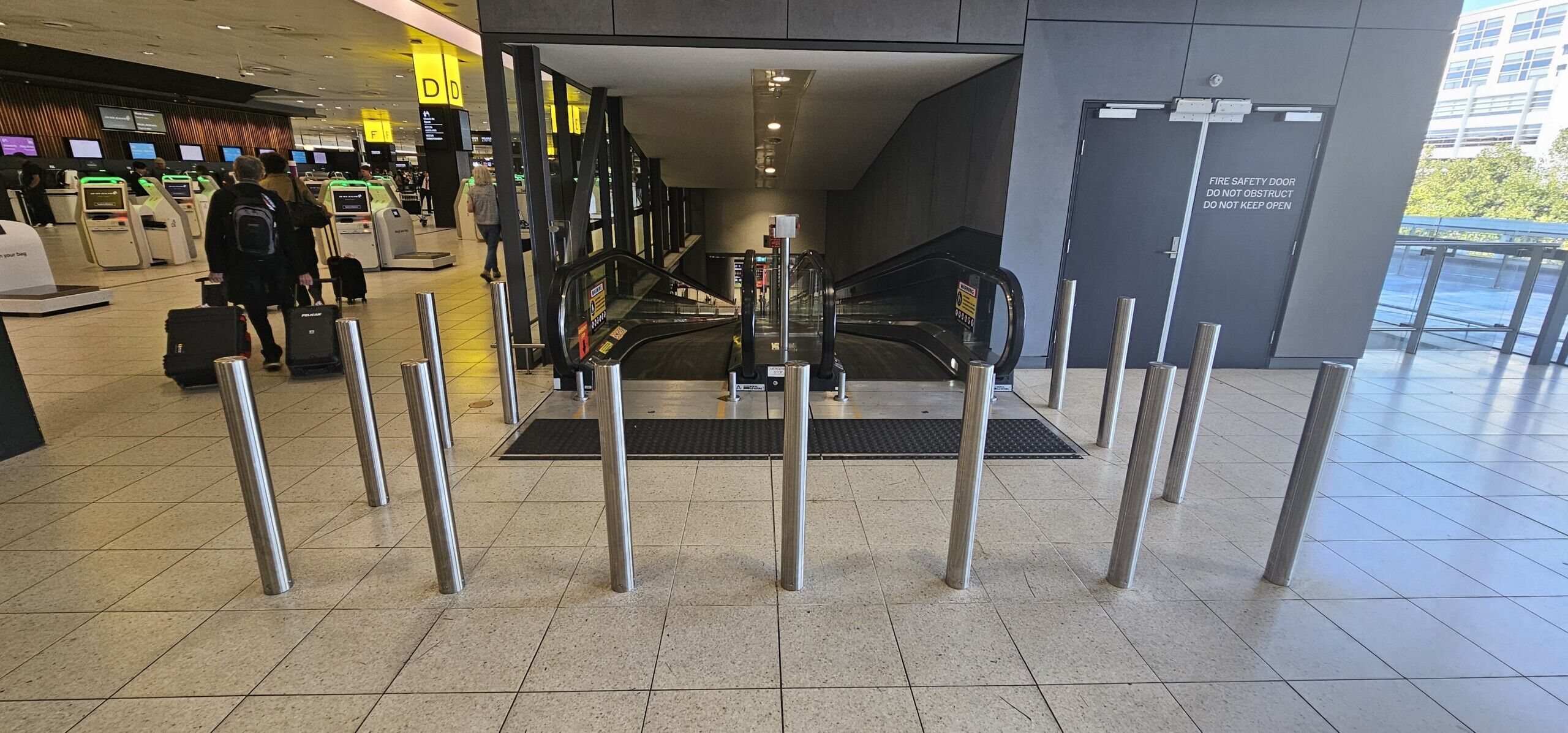

Our surface-mounted stainless-steel bollard with a hidden mounting base is perfect for use in areas where you can’t have a base mount protruding due to space constraints or aesthetic requirements.
The mounting base is securely bolted in place, with the stainless bollard tube slotting down over the flange and attaching with small socket screws.
It provides an aesthetically pleasing result that is easy to clean around.
Comes in a brushed stainless steel finish.
90mm dia x 900mm high
Options
Options
Code
Description
Size
Finish
49-SSBHB90
Surface Mount Bollard with Hidden Base
90(Dia) x 900(H)mm
Brushed Stainless Steel
FAQs.
In what situations are these bollards commonly used?
Stainless steel bollards are ideal for applications where you want a 5 star look, i.e outside an upmarket store.
How are these bollards installed?
- Place the bollard base/spigot where you want them to be installed.
- Mark the fixing hole positions
- Remove the bollard bases and drill fixing holes as marked – 3 holes at 12mm diameter x 120mm deep
- Position the bollard bases and screw them in place using M12 x 100mm concrete screws
- Place the bollard sleeve over the base and tighten the 4 x thumb screws to secure the sleeve onto the base
How much space should I leave between the bollards when installing?
Recommend spacing at around 1200mm for most applications – wide enough for wheelchairs to get through but narrow enough to stop cars.
