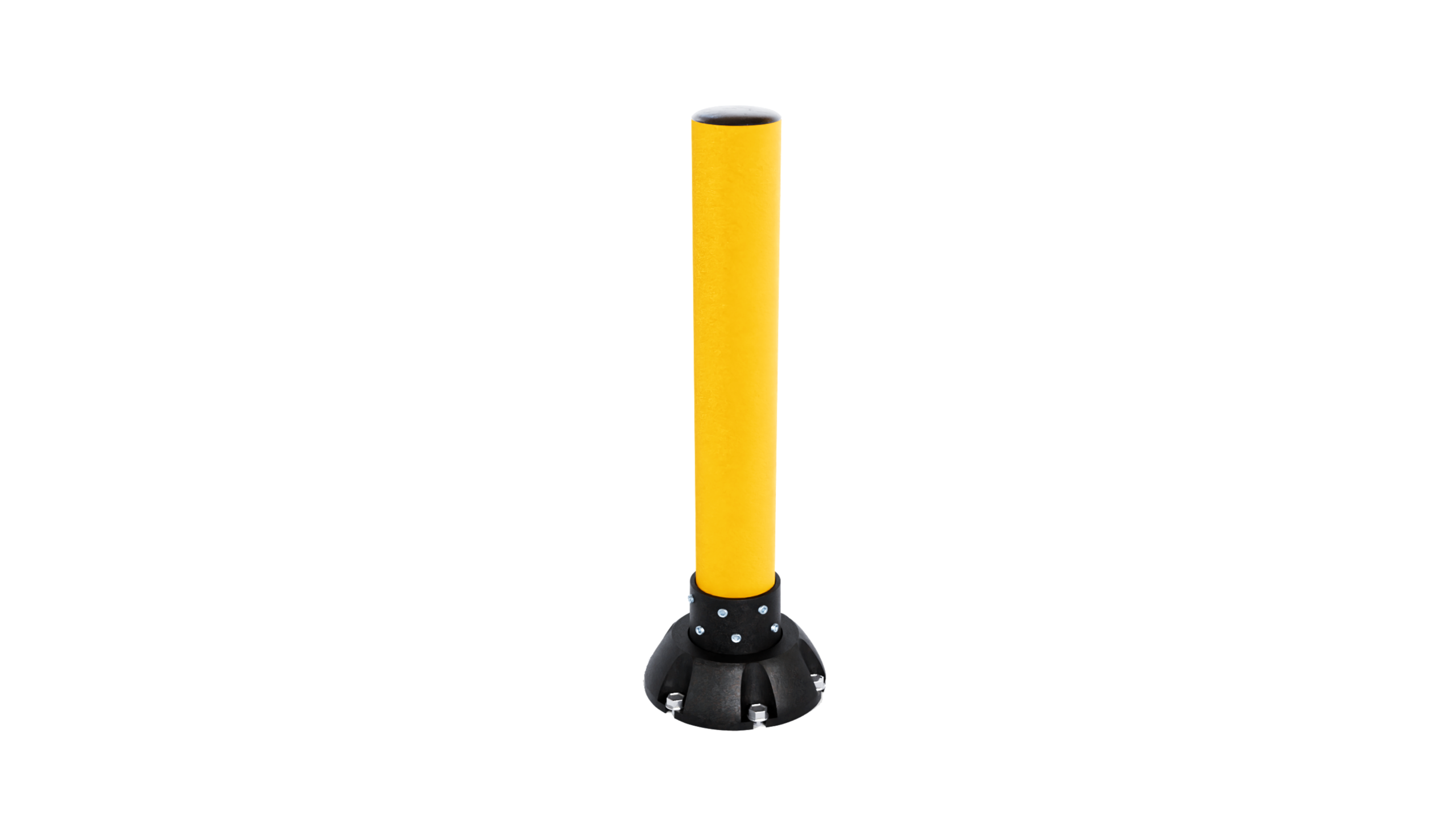

SlowStop® Bollard – 141mm Dia.
CODE:
Impact resistance: 18.0 kJ
SlowStop Bollards are the world’s only full steel rebounding bollard designed to do far more than just block access.
The 141mm’s revolutionary steel pipe design is built to absorb impacts up to 18 kJ, ideal for medium to heavy-duty industrial applications where cars, light trucks, and typical forklifts are present.
Reduce damage. Stop repairing and replacing bollards. Also available in 101mm and 168mm diameters.
Key Features
- Protect buildings, assets, vehicles, and pedestrians from damaging collisions
- Absorbs energy and rebounds to its original position without damage
- The round base offers anchor head protection from fork impact as well as the elimination of any trip hazard
- Perfect for medium to heavy-duty industrial applications as well as vehicle traffic in post tension concrete parking garages
- Bollard pipe is galvanised and comes with a durable yellow powder coat and black cap
- Bollard kit comes with everything needed to install (including anchors)
- Made in USA – backed by a 2 year warranty
Testing & Certification
- Stops 3T at 7.8 km/h without damage
- Impact Rating: 18.0 kJ | 225.2 kN
Technical Specifications
- Diameter: 142.4 mm (6.3mm wall)
- Height: 1000mm
- Colour: RAL 1023 Yellow Pipe on RAL 9005 Black Pedestal
- Temperature Rating: -40°C to 70°C
- Pipe Coating: EN-ISO 1461 Galvanised + Polyester Powder Coating
- Base Coating: Environmentally Friendly Water-based KTL Coating + Polyester Powder Coat C51 corrosion resistance
- Set Screws: 6 M16 x 2,00, 8 mm Hex
- Anchor Screws: 6 x (M16 x 140mm Anka Screws)
- Cap: Black Plastic
Options
Videos
Spec Sheets
Rating Table
Options
Code
Description
Size (mm)
Finish
1610-027
SlowStop Bollard 141
ø141 x 1000(H)
Galv w/ Yellow Powdercoat
Videos
SlowStop Bollard | Overview
SlowStop Bollard | Impact Test
SlowStop Bollard | Installation Guide
Spec Sheets
Rating Table
FAQs.
How do SlowStop bollards work?
When hit, the energy of the impact is absorbed by an elastomer in the base of the bollard, and slowly released, bouncing back into shape
What applications are these suitable for?
SlowStop bollards are suitable for all applications including factories, carparks and general property protection
What weight and speed can be absorbed?
This varies depending on the diametre of the bollard. Ask us for more info
How far apart should I install the bollards?
We recommend installing your bollards between 1200mm - 1500mm apart to ensure no small vehicles can fit between them. 1200mm is the minimum distance apart they can be installed to ensure access is not restricted.
