ForkSafe 400-A.
CODE:
$150 – $250 per lineal metre (supply only, ex GST)

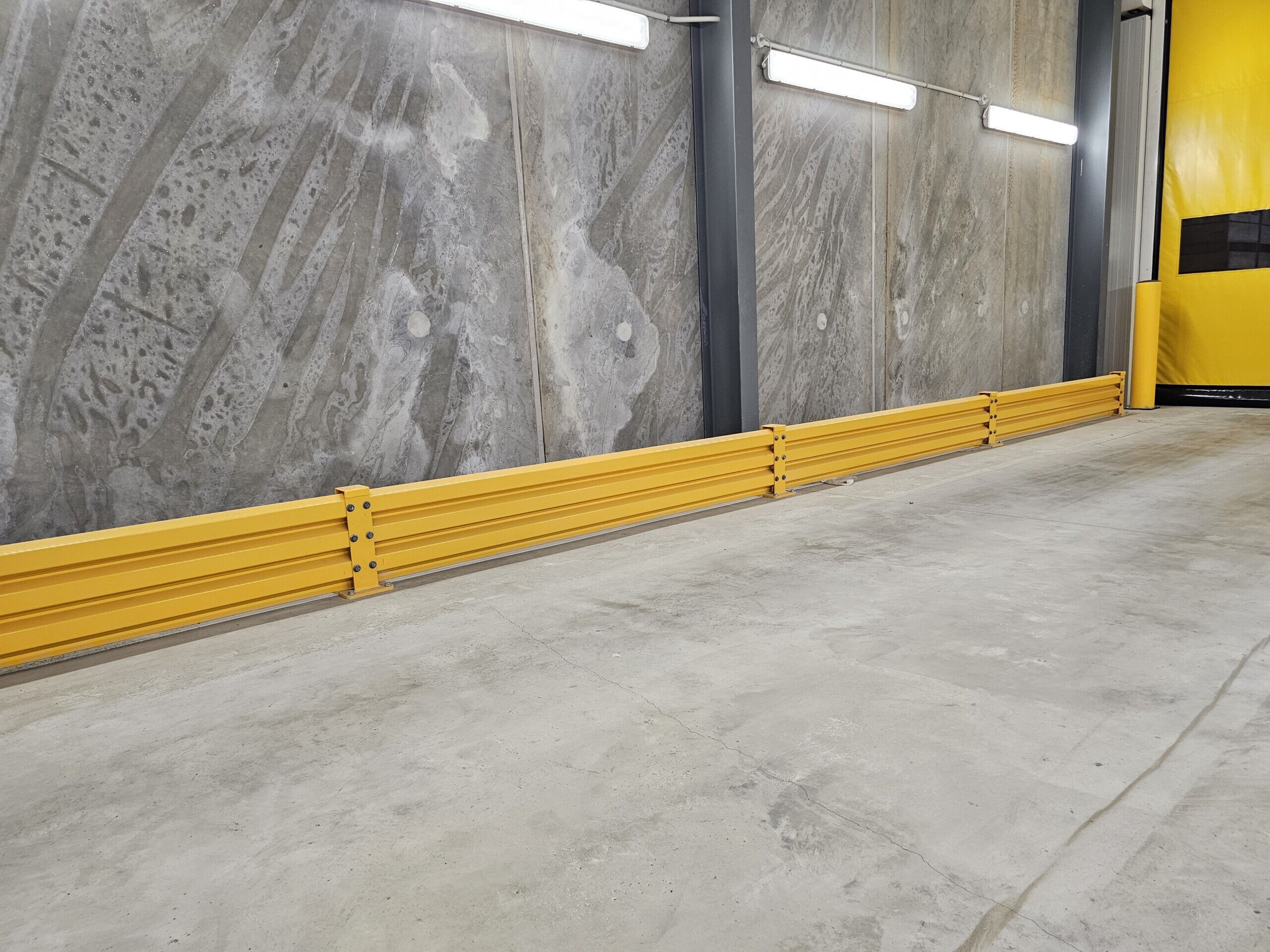

ForkSafe 400-A is a compact, heavy-duty steel barrier designed to protect walls, machinery, and equipment from low-height forklift and MHE impacts up to 5.85 kJ.
At 400mm high, it is designed for spaces where pedestrian access isn’t a factor but damage to structures, machinery or other assets is a risk.
Ideal for warehouses, cold storage facilities, and areas with low-clearance or compact layouts.
ForkSafe Steel Barriers protect people, equipment, and infrastructure in high-traffic forklift zones.
Engineered for impact resistance, this certified modular system safeguards buildings, assets, and personnel from damage or injury caused by forklifts and other vehicles.
Key Features
- Crumple Zone Technology (CZT) reduces floor damage on impact
- Fully modular for easy customisation – easy to cut, install, expand, and replace parts
- High-strength steel construction for forklift and MHE zones
- Replaceable posts and rails for easy maintenance
- Supplied with screw anchors for fast and secure installation
- Suitable for forklifts, reach trucks, and pallet trolleys
- Backed by a 10 Year Warranty
Testing & Certification
- Impact simulation tested — stops 7T at 4.7km/h
- Impact resistance: 5.85 kJ
- Meets AS/NZS 1170.1 Section 3.8 — Type F 30kN and Type G 40kN
- Tested in compliance with PAS13 (certification available on request)
Technical Specifications
- Height: 400mm
- Number of Rails Per Bay: 1 set (1 set = 3 rails)
- Rail Lengths: 1200mm, 2400mm
- Finish: Galvanised with yellow powder coat finish
- Post Material: Steel – 5mm and 8mm wall thickness
- Rail Material: Steel – 2mm wall thickness
- Connector: M12 x 30mm 8.8 high tensile bolt
- Fixings: M12 x 100mm concrete screw bolts (4 per post, supplied)
- Post Size: 90 x 90mm ‘I’ beam type section
- Base Plate: 180 x 180mm square, 12mm thick, 4 x Ø16mm anchor holes
- Cap: Yellow HDPE clip-on cap
