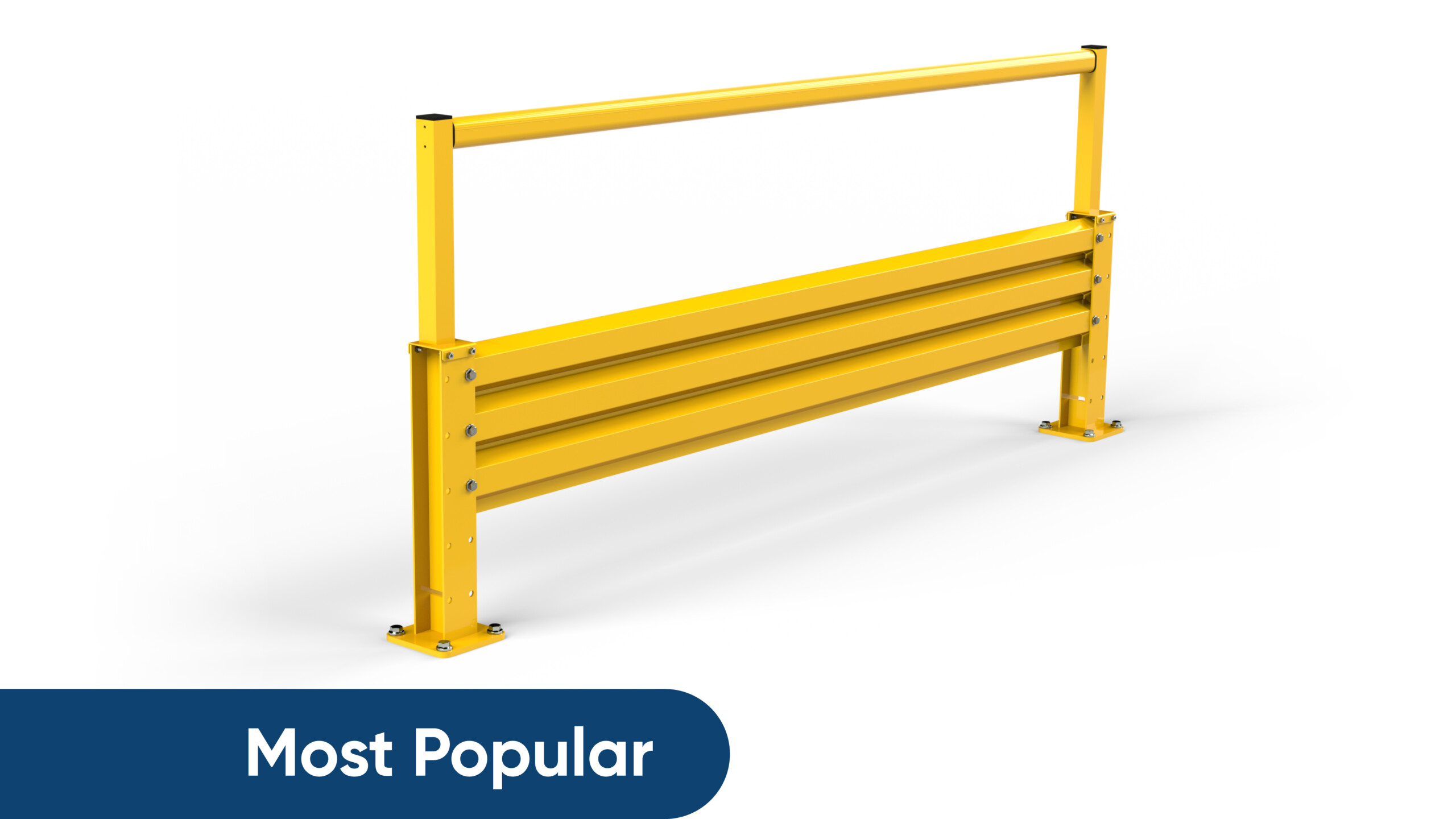

ForkSafe 600-B.
CODE:
$200 – $300 per lineal metre (supply only, ex GST)

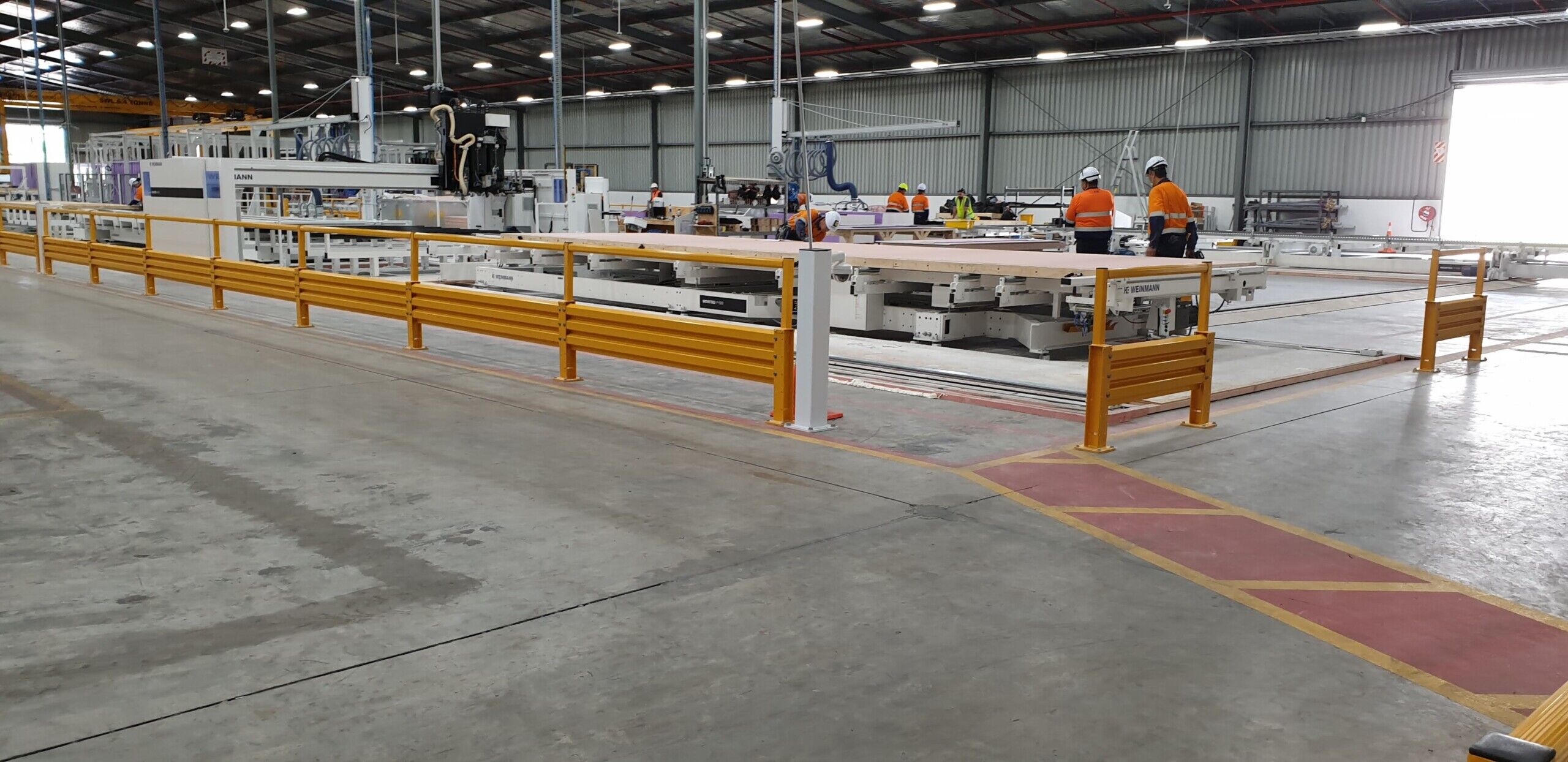

ForkSafe 600-B is a popular, cost-effective steel barrier designed to protect pedestrian walkways from mid-height forklift and MHE impacts up to 5.78 kJ.

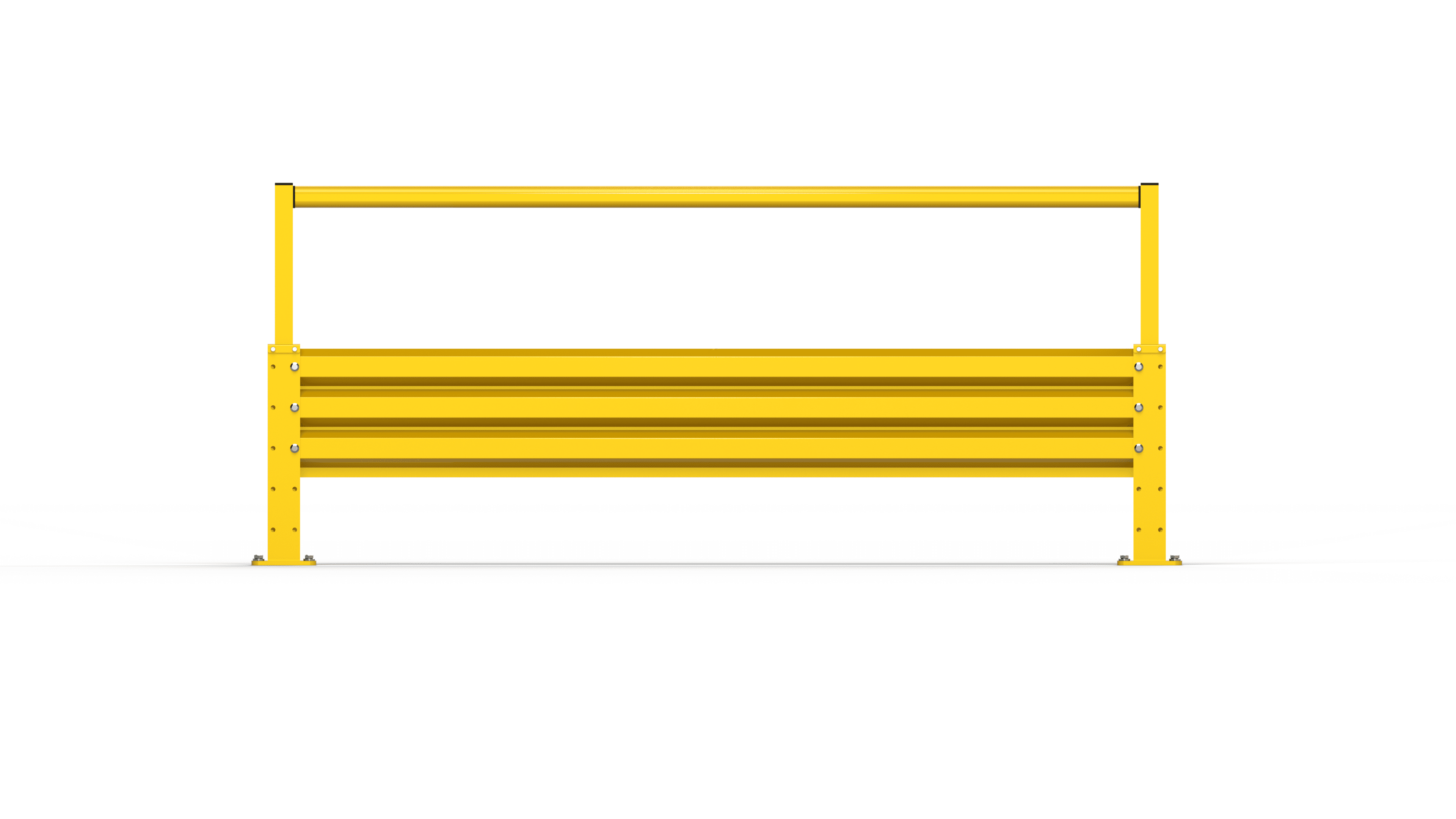

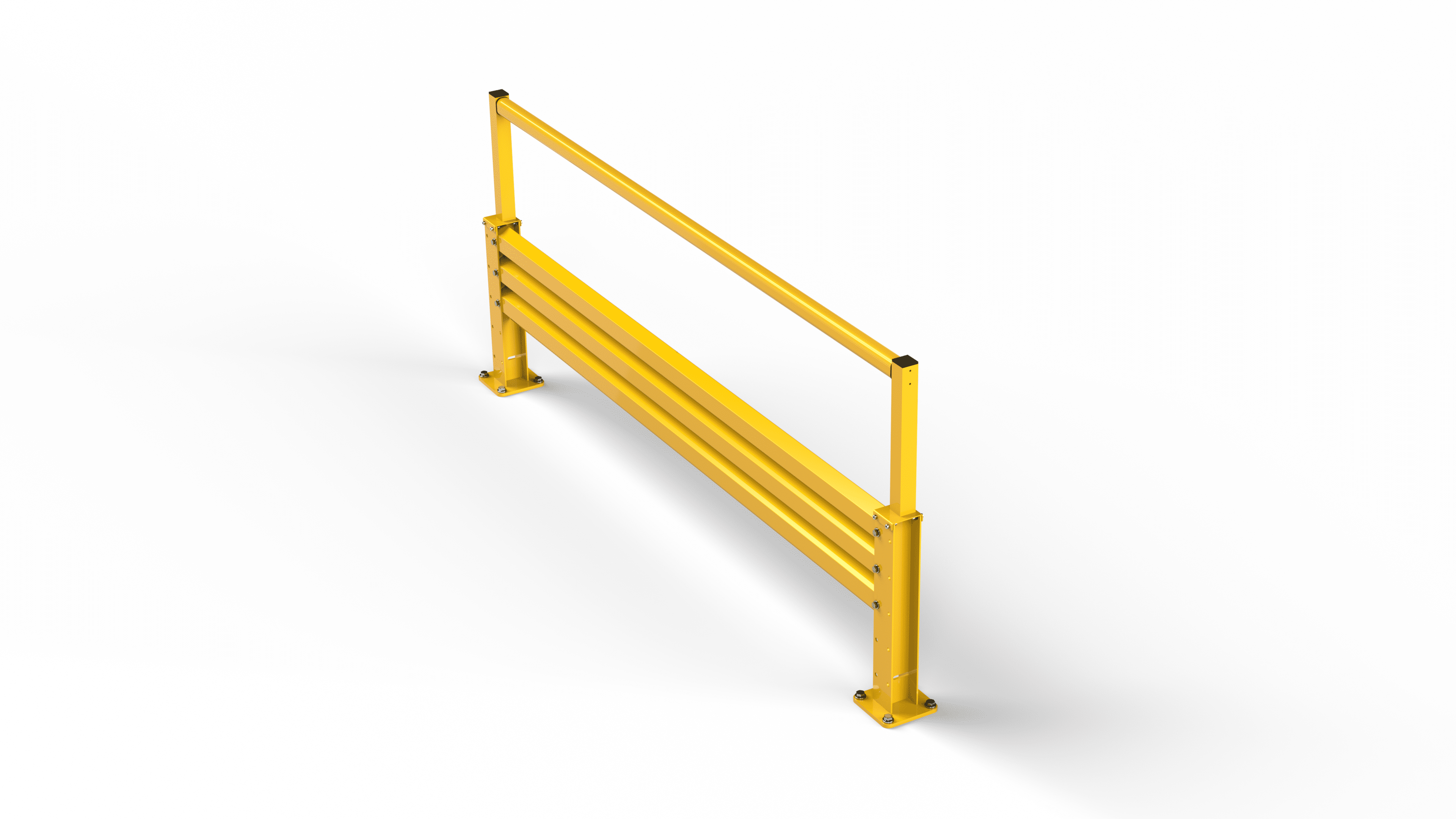

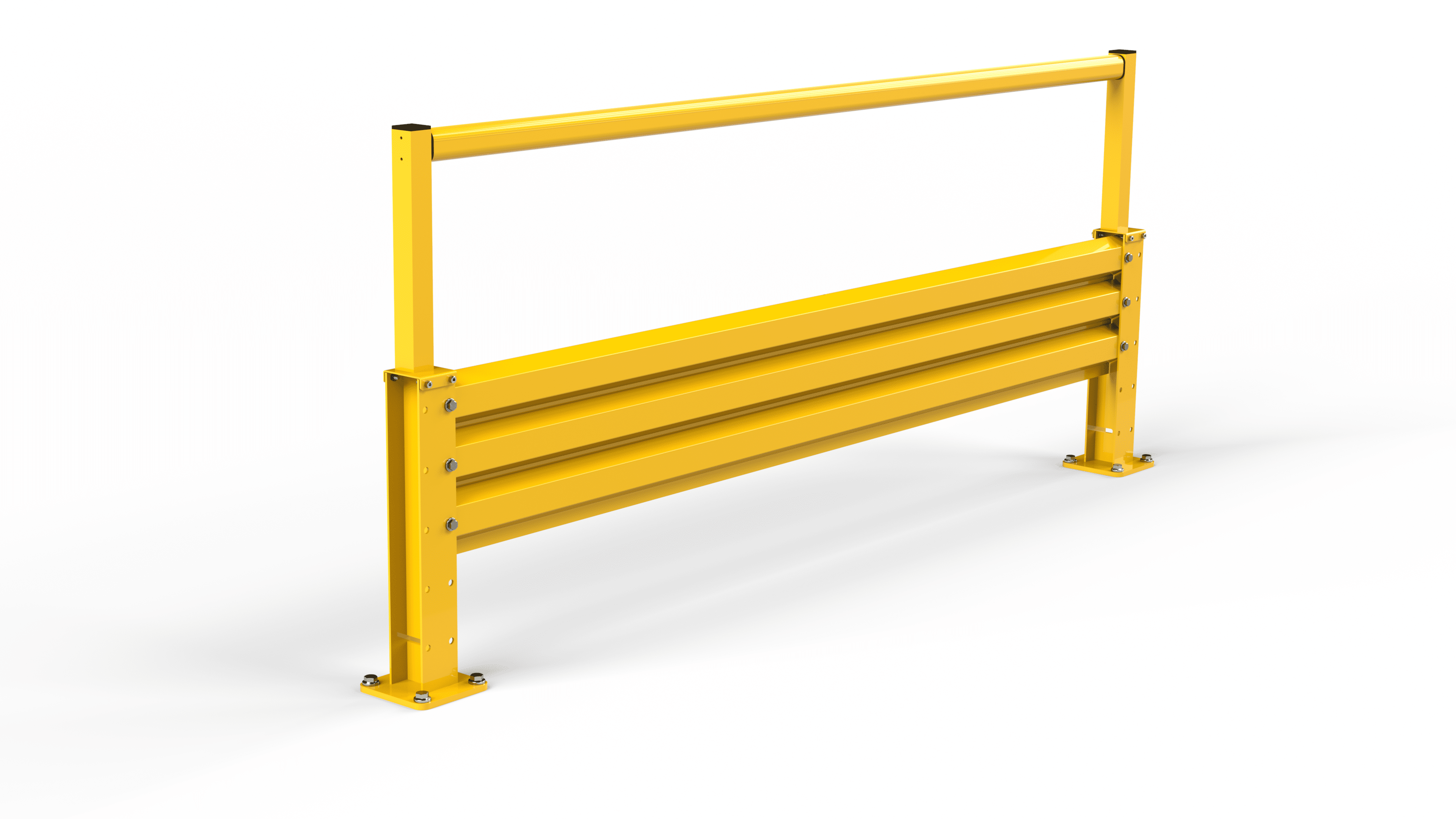

The 600-B is our 600-A barrier with the addition of a handrail providing pedestrians with an ergonomic grip in slippery areas and deterring them from stepping over into operational zones.
With barrier rails positioned at 600mm high (where the bulk of the vehicle’s weight is), it is designed to protect pedestrians, structures, machinery or other assets from mid-level vehicle impacts.

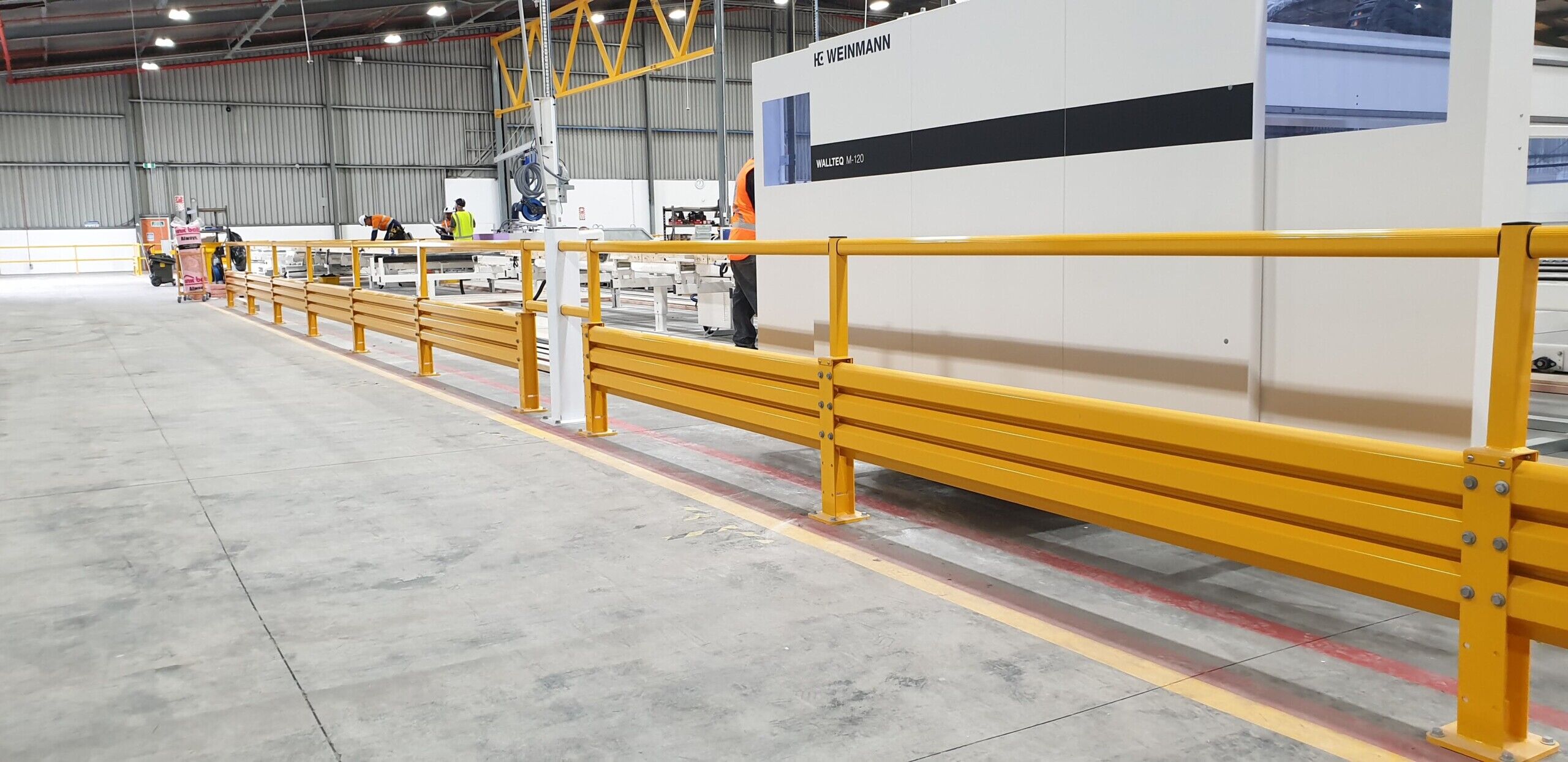

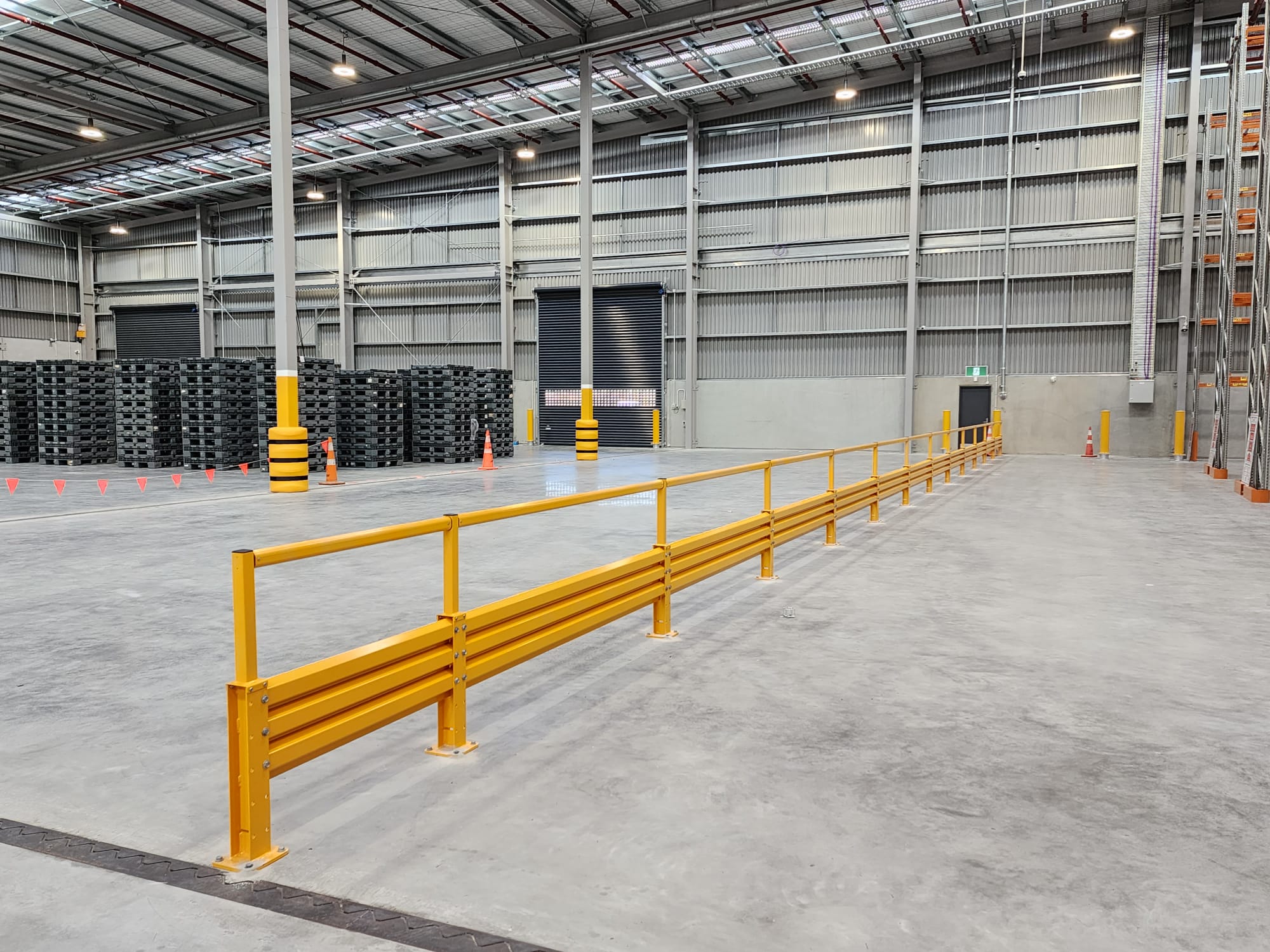

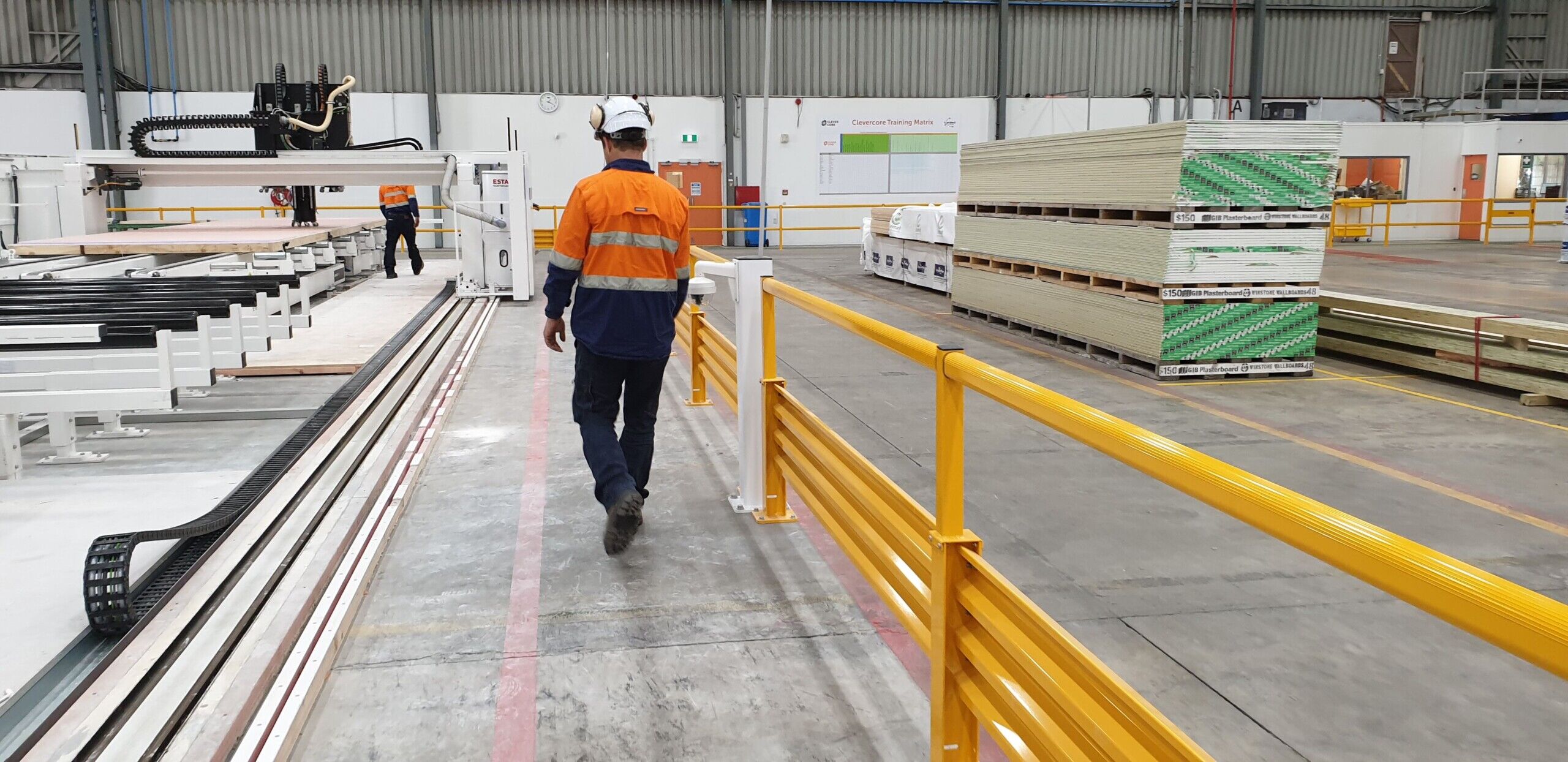

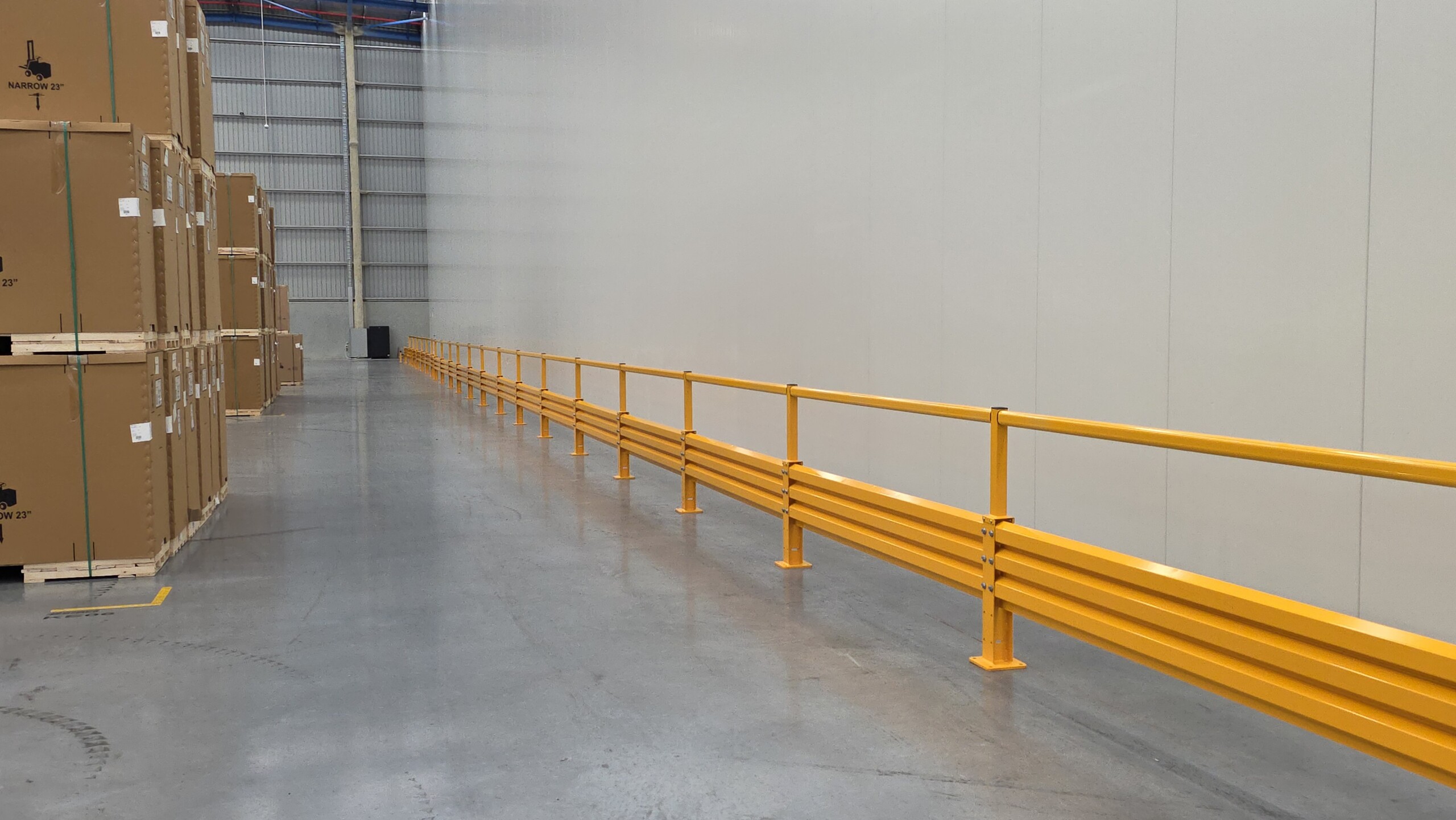

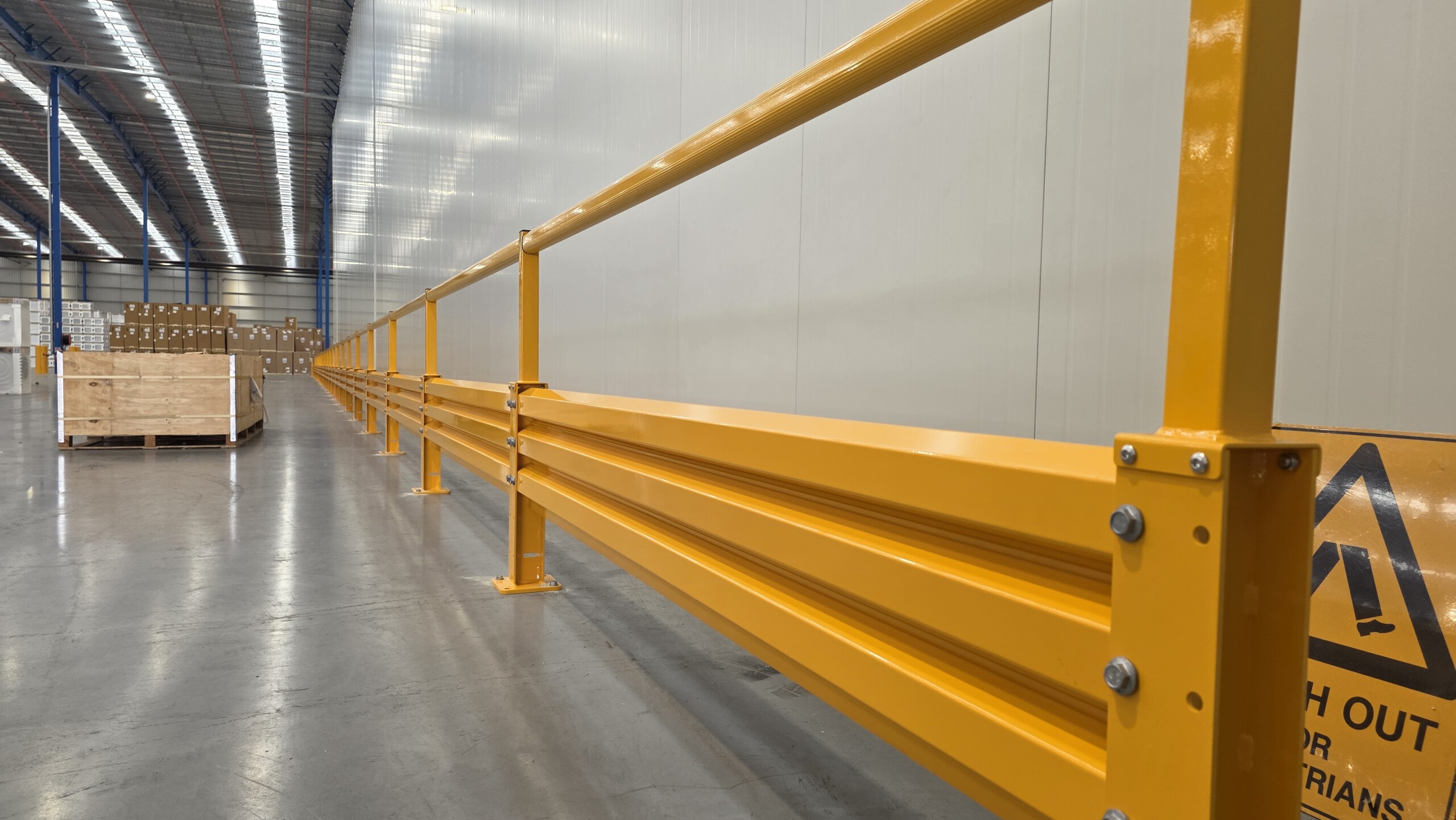

ForkSafe Steel Barriers protect people, equipment, and infrastructure in high-traffic forklift zones.
Engineered for impact resistance, this certified modular system safeguards buildings, assets, and personnel from damage or injury caused by forklifts and other vehicles.
Key Features
- Crumple Zone Technology (CZT) reduces floor damage on impact
- Fully modular for easy customisation – easy to cut, install, expand, and replace parts
- High-strength steel construction for forklift and MHE zones
- Replaceable posts and rails for easy maintenance
- Supplied with screw anchors for fast and secure installation
- Suitable for forklifts, reach trucks, and pallet trolleys
- Backed by a 10 Year Warranty
Testing & Certification

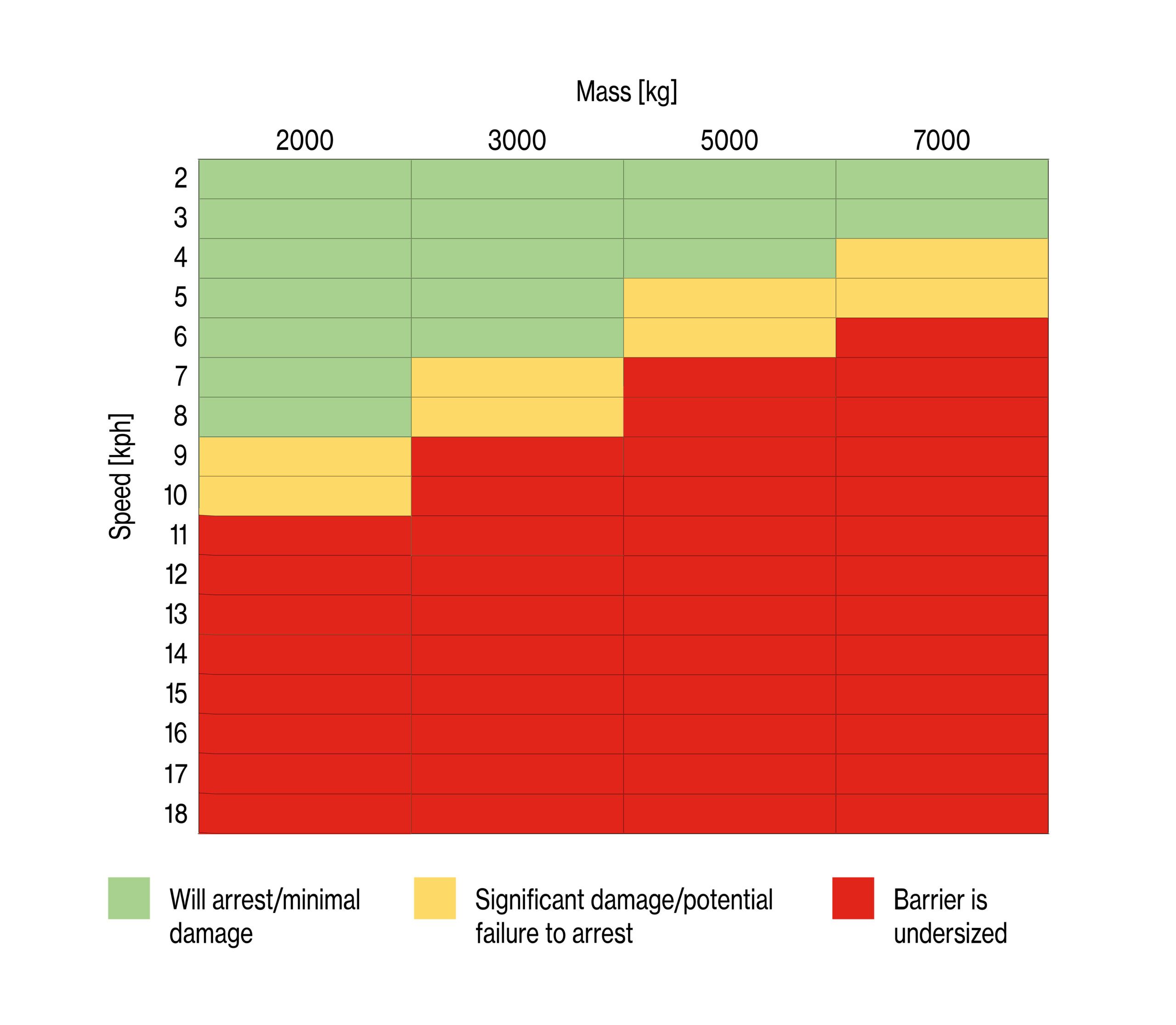

- Impact simulation tested — stops 7T at 4.6 km/h
- Impact resistance: 5.78 kJ
- Meets AS/NZS 1170.1 Section 3.8 — Type F 30kN
- Tested in compliance with PAS13 (certification available on request)

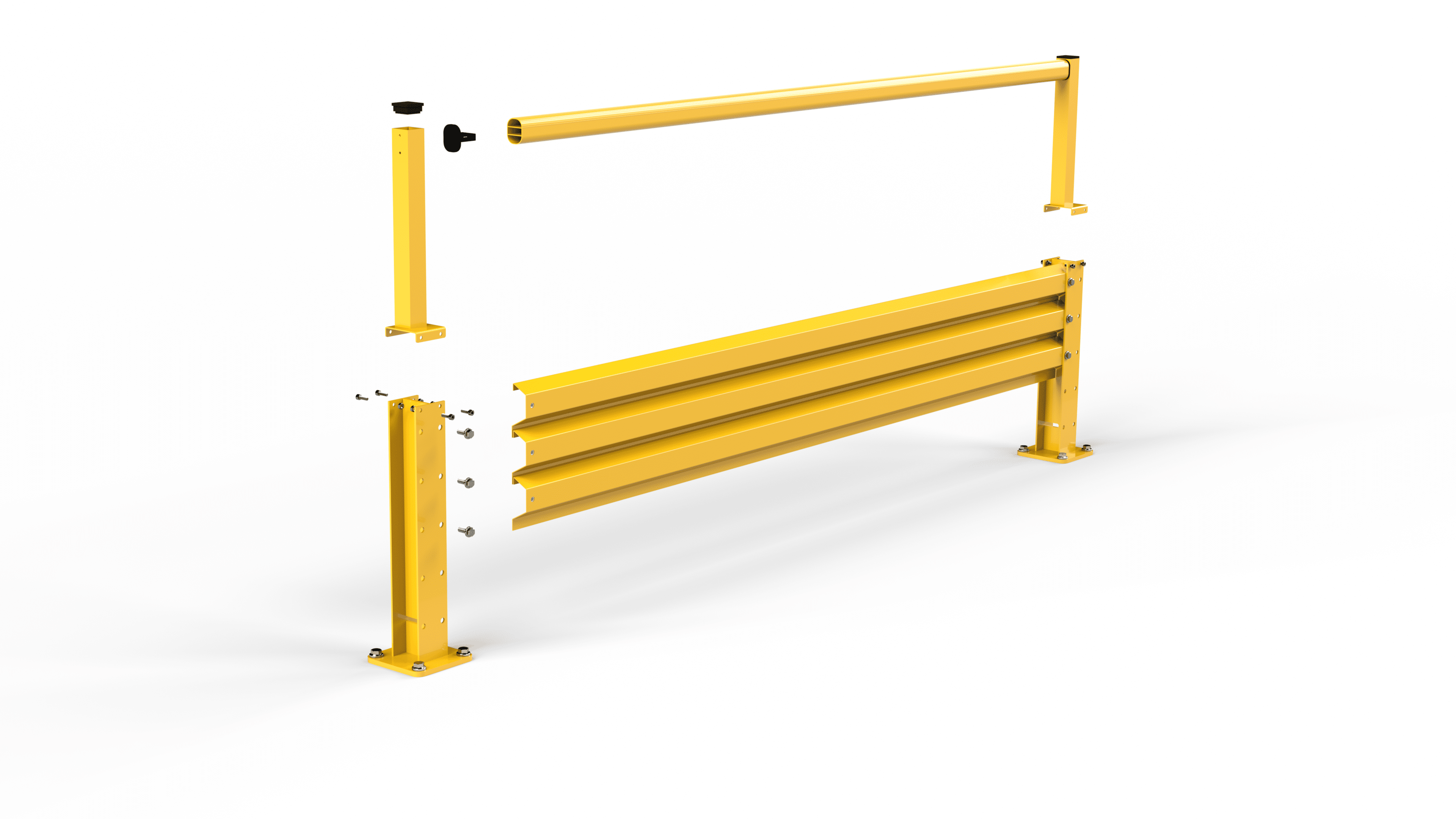

Technical Specifications
- Height: 1060mm (to top of handrail)
- Number of Rails Per Bay: 1 set (1 set = 3 rails)
- Rail Lengths: 1200mm, 2400mm
- Finish: Galvanised with yellow powder coat finish
- Post Material: Steel – 5mm and 8mm wall thickness
- Rail Material: Steel – 2mm wall thickness
- Connector: M12 x 30mm 8.8 high tensile bolt
- Fixings: M12 x 100mm concrete screw bolts (4 per post, supplied)
- Post Size: 90 x 90mm ‘I’ beam type section
- Base Plate: 180 x 180mm square, 12mm thick, 4 x Ø16mm anchor holes
- Cap: Yellow HDPE clip-on cap
