PedSafe 1000-A Pedestrian Handrail.
CODE:
$110 – $140 per lineal metre (supply only, ex GST)

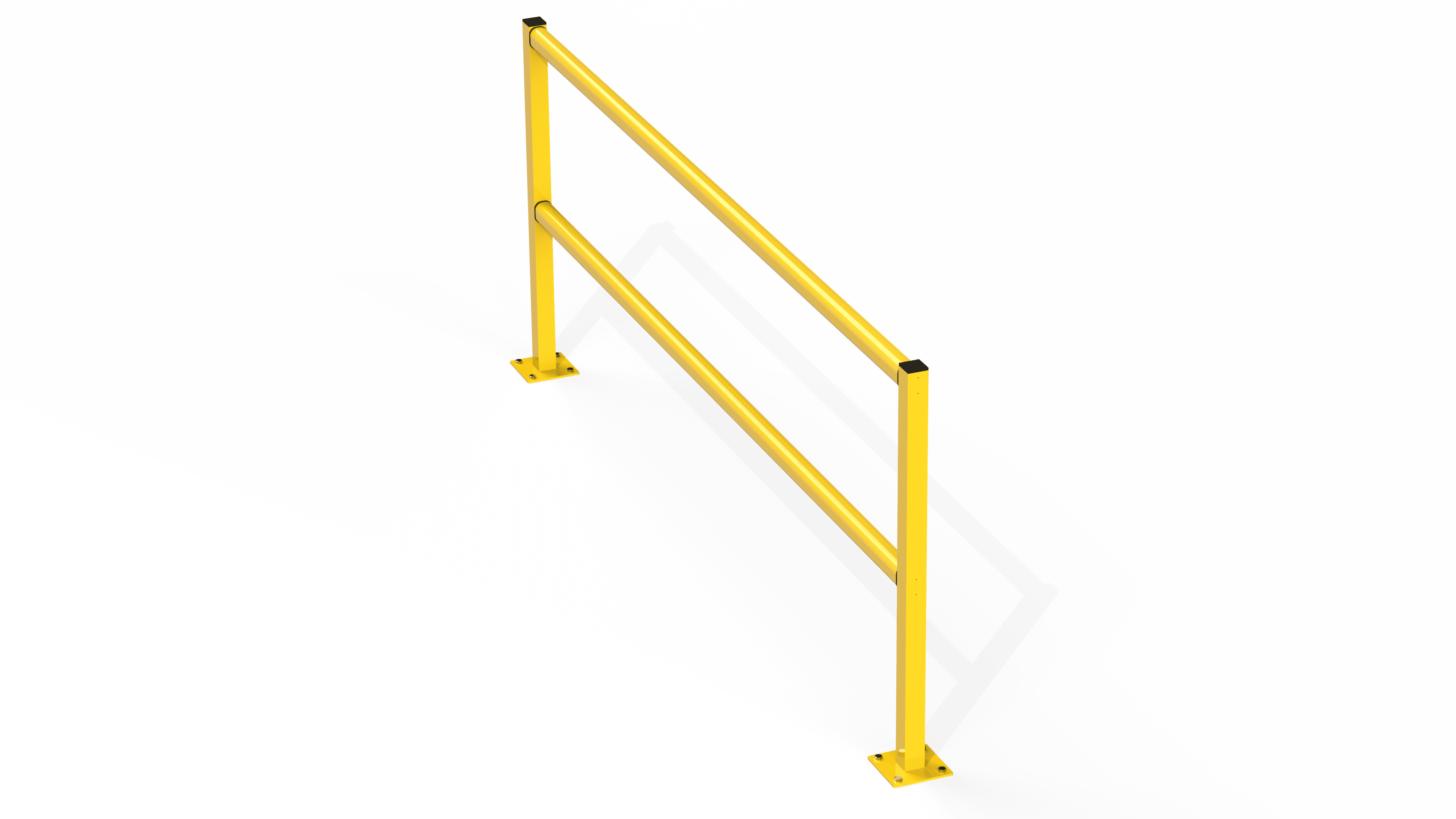

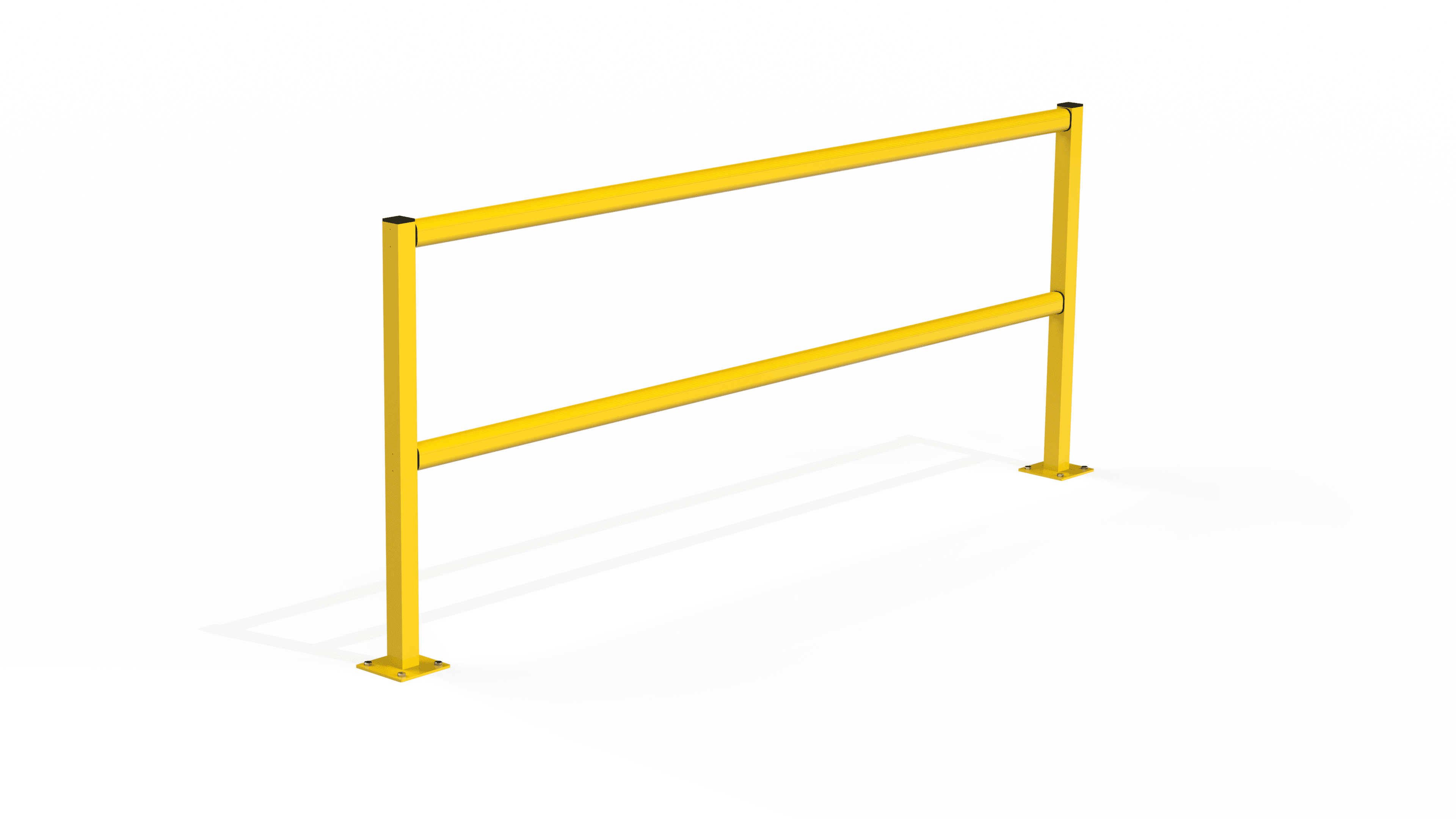

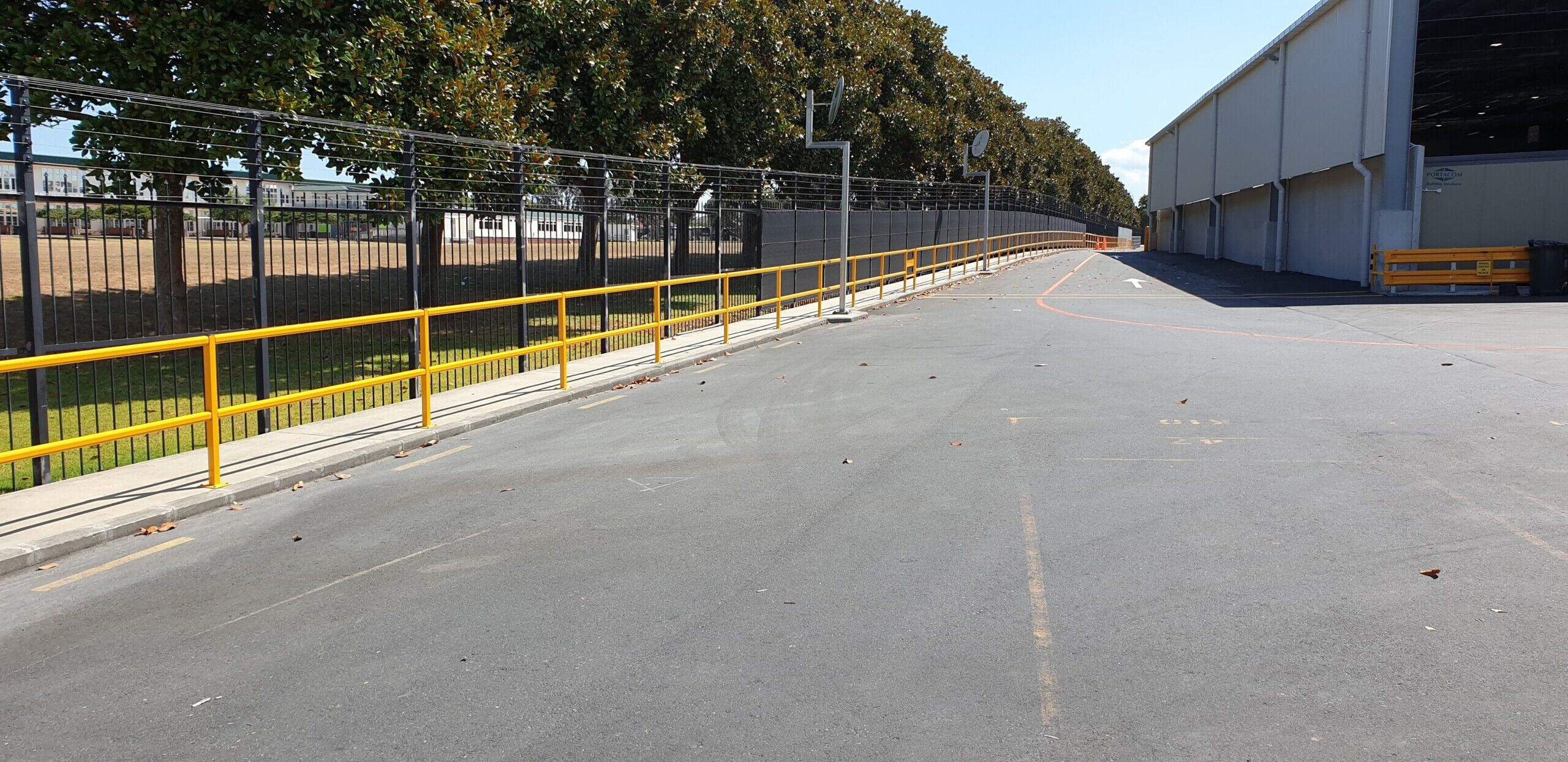

The PedSafe 1000-A is a modular double rail pedestrian steel barrier designed to guide foot traffic and clearly define pedestrian routes within a workplace.

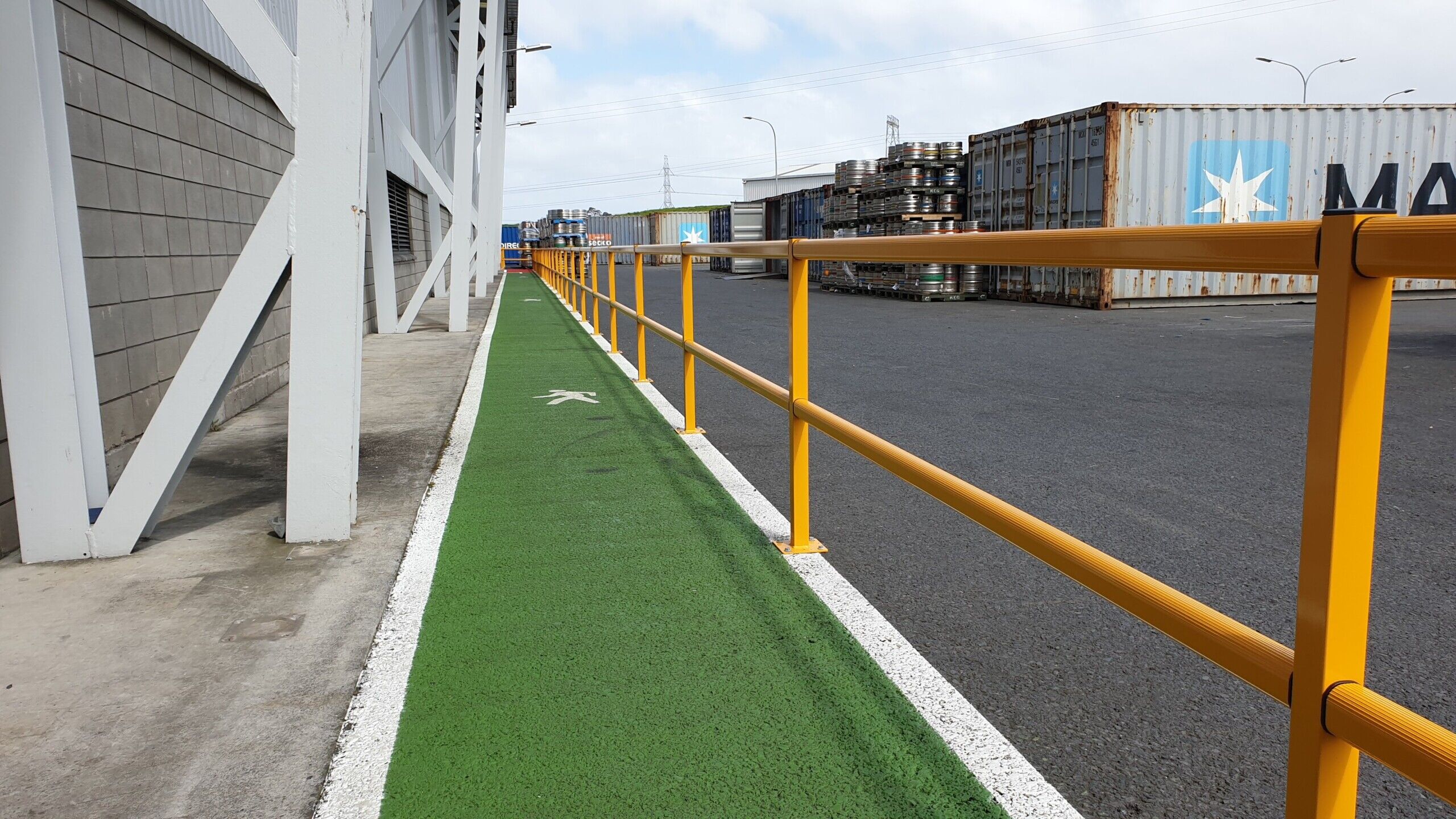

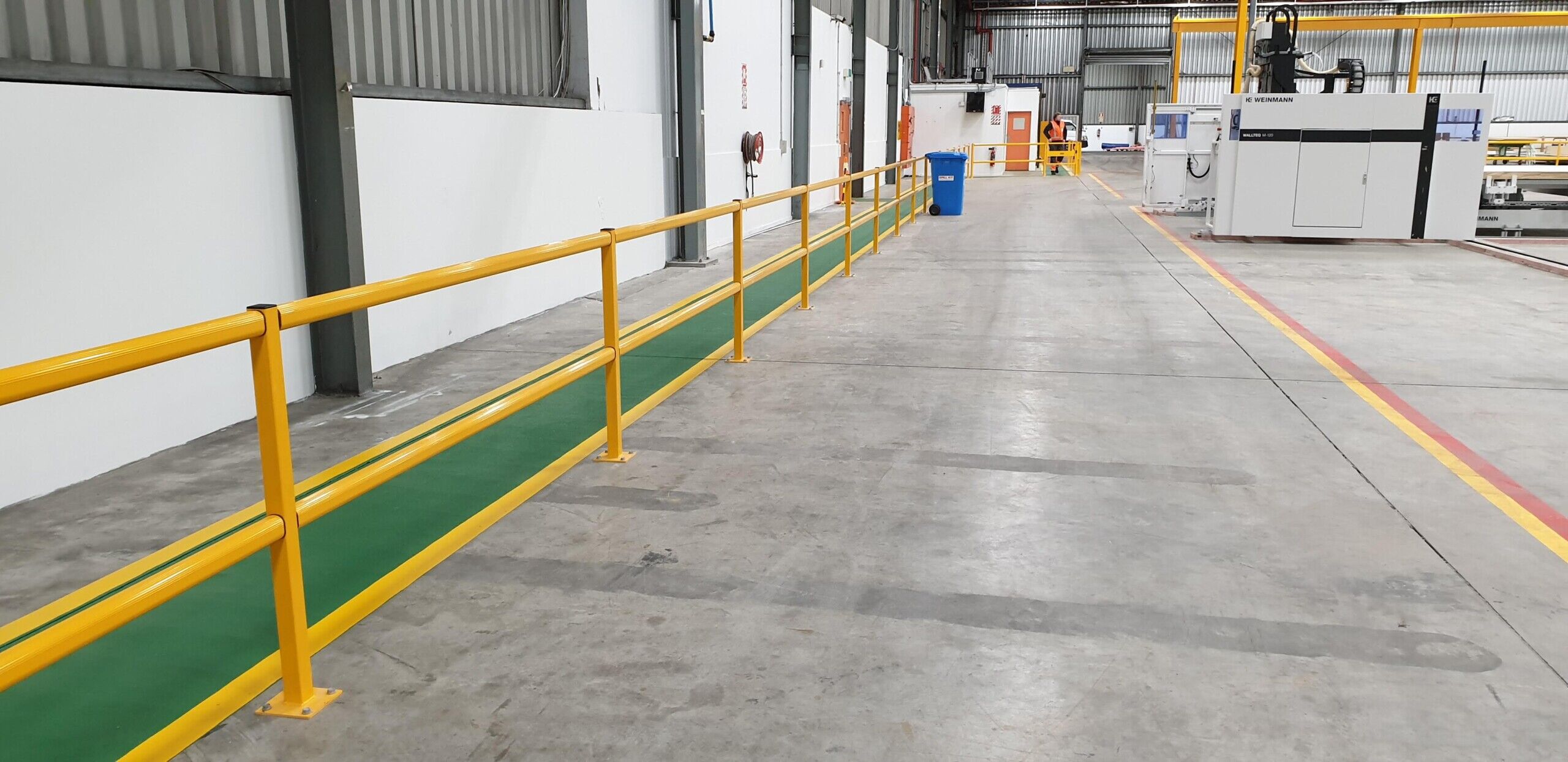

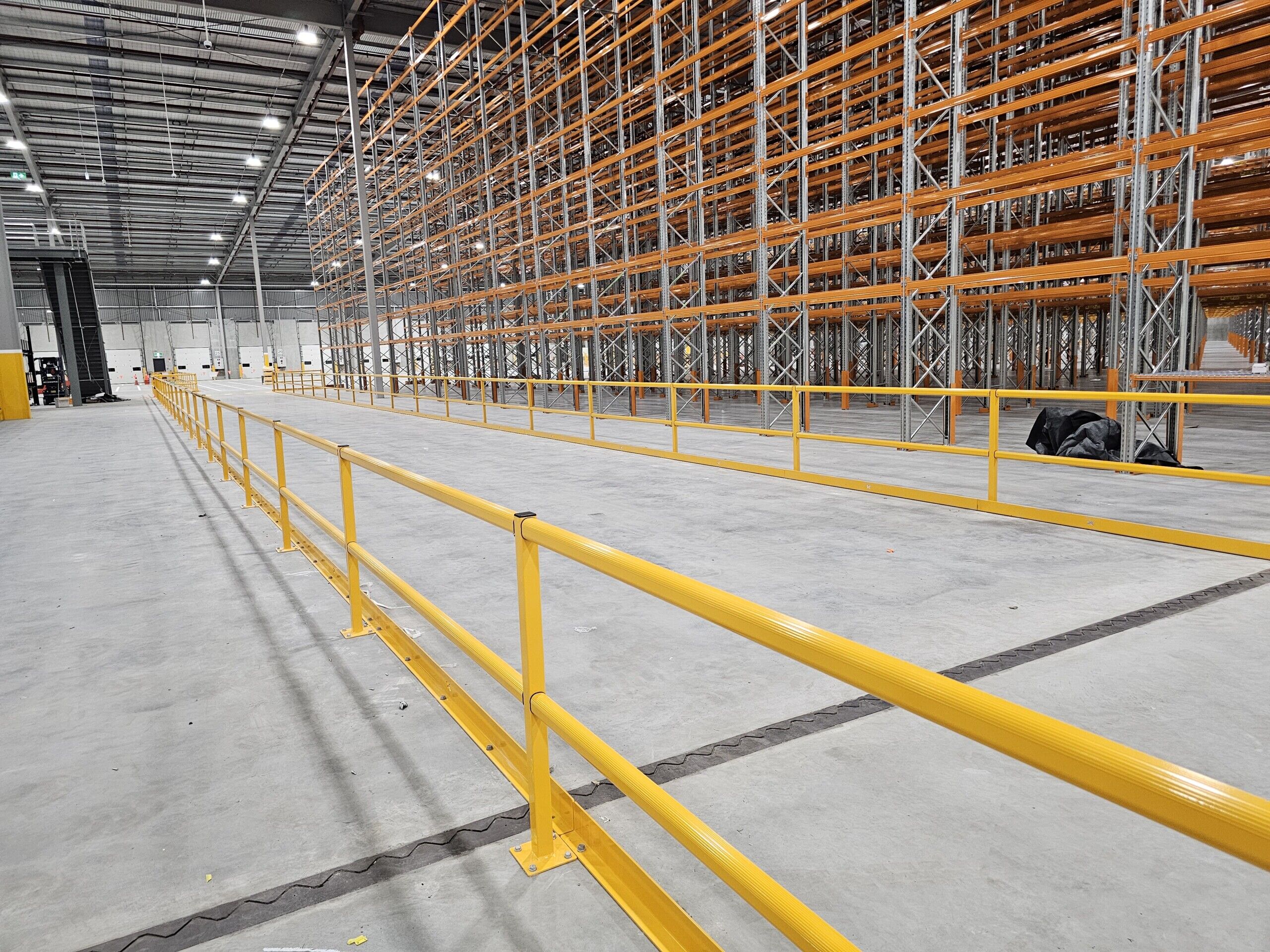

Best suited to pedestrian-only zones or low-risk environments, such as internal walkways, processing areas, factory corridors, or around amenities, where the goal is safe and consistent people movement, not physical vehicle protection.
Please note, this should not be used in areas where forklift impacts are likely. If you’re needing an impact-rated barrier, see the ForkSafe barrier range.
Key Features

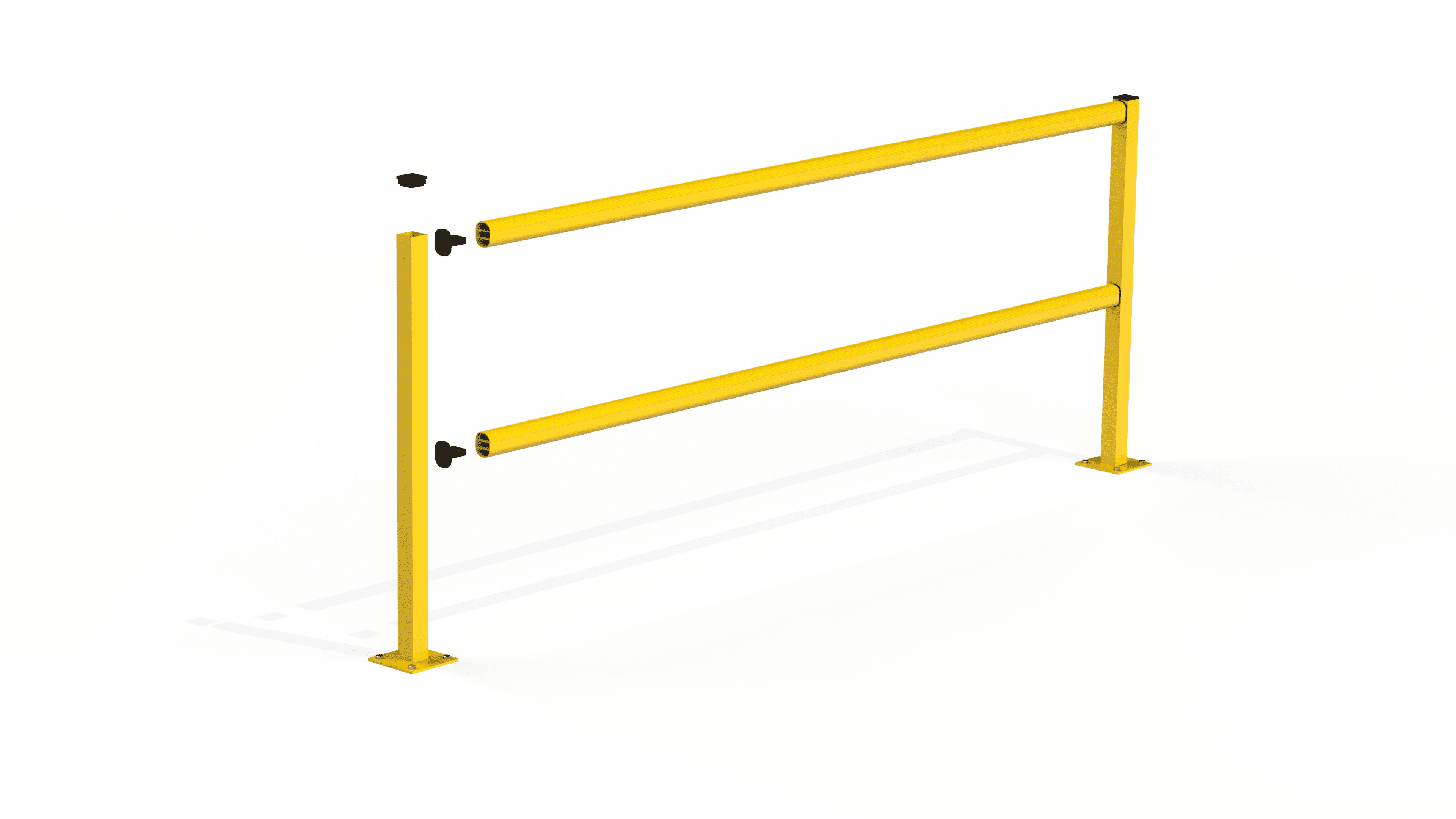

- Fully modular system for quick custom configurations
- Double rail design with ergonomic ribbed top handrail
- No welding or hot work required
- Replaceable components for long-term use
- Compatible with PedSafe gates and accessories
- Clearly defines pedestrian-only walkways
Technical Specifications
- Height: 1000mm overall
- Configuration: Two horizontal pedestrian rails
- Material: Aluminium rails with galvanised steel posts
- Finish: Galvanised with yellow powder coat finish
- Fixing: M10 x 60mm concrete screw bolts (4 per post)
- Compatibility: Works with PedSafe swing gates and kickplate options
Options
Spec Sheets
Options
Code
Description
Length
Height
Finish
3320-080

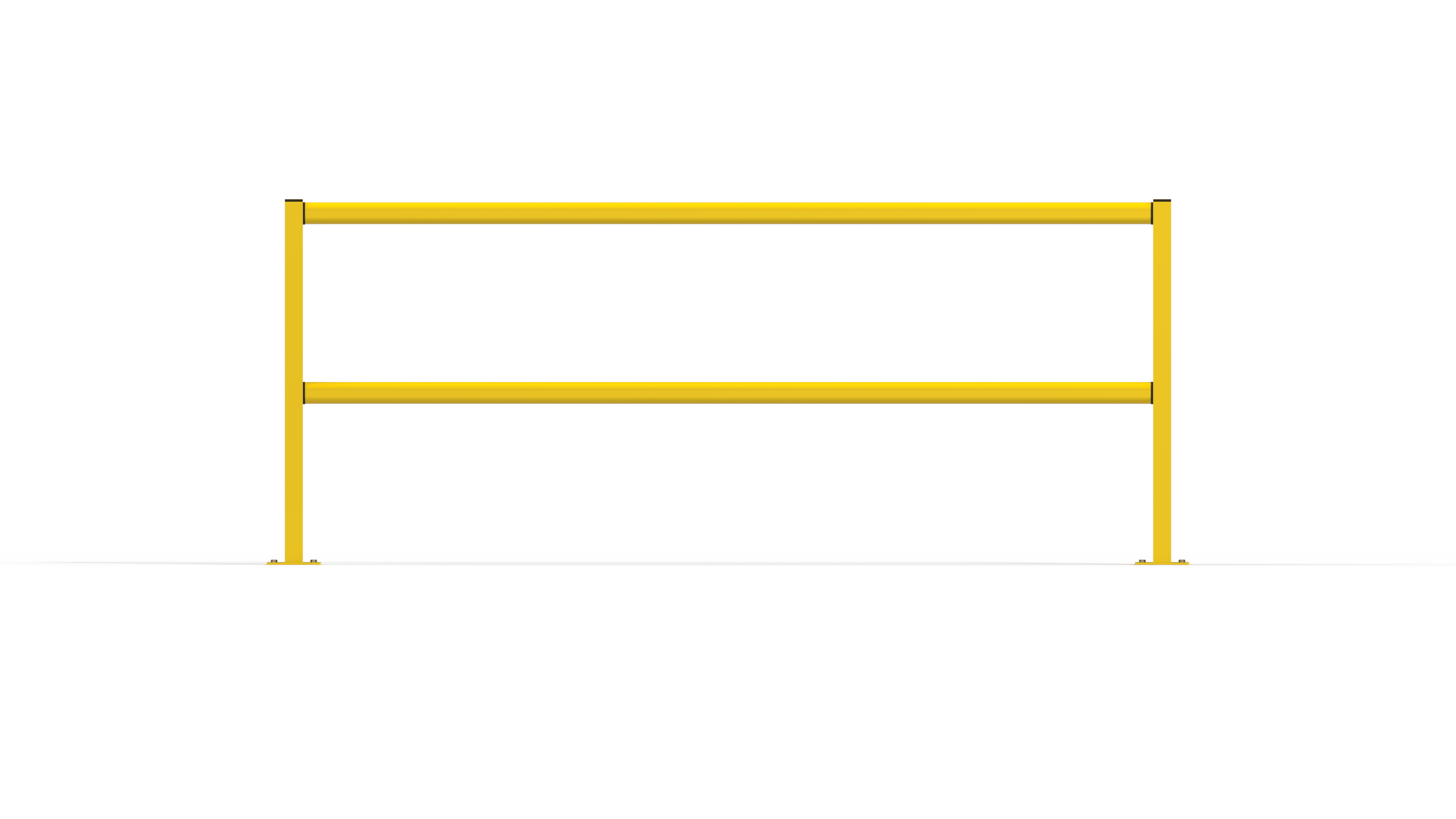

1000-A Starter Bay
1200mm
1050mm
Galv w/ Yellow Powdercoat
3320-066
1000-A Starter Bay
2400mm
1050mm
Galv w/ Yellow Powdercoat
3320-067

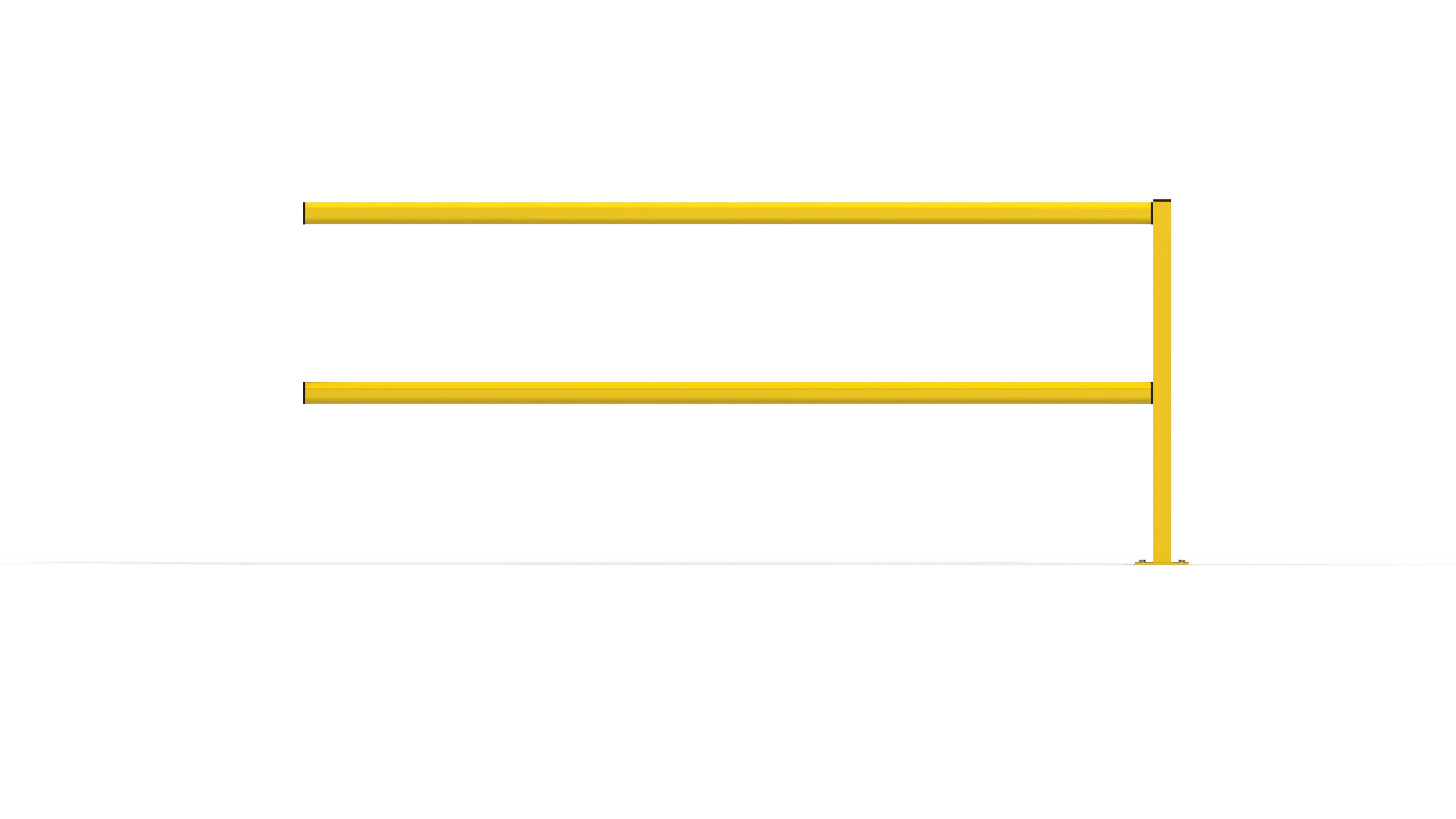

1000-A Add-On Bay
2400mm
1050mm
Galv w/ Yellow Powdercoat
3320-100
PedSafe Post (incl. cap, 4 x fixings)
Spec Sheets
