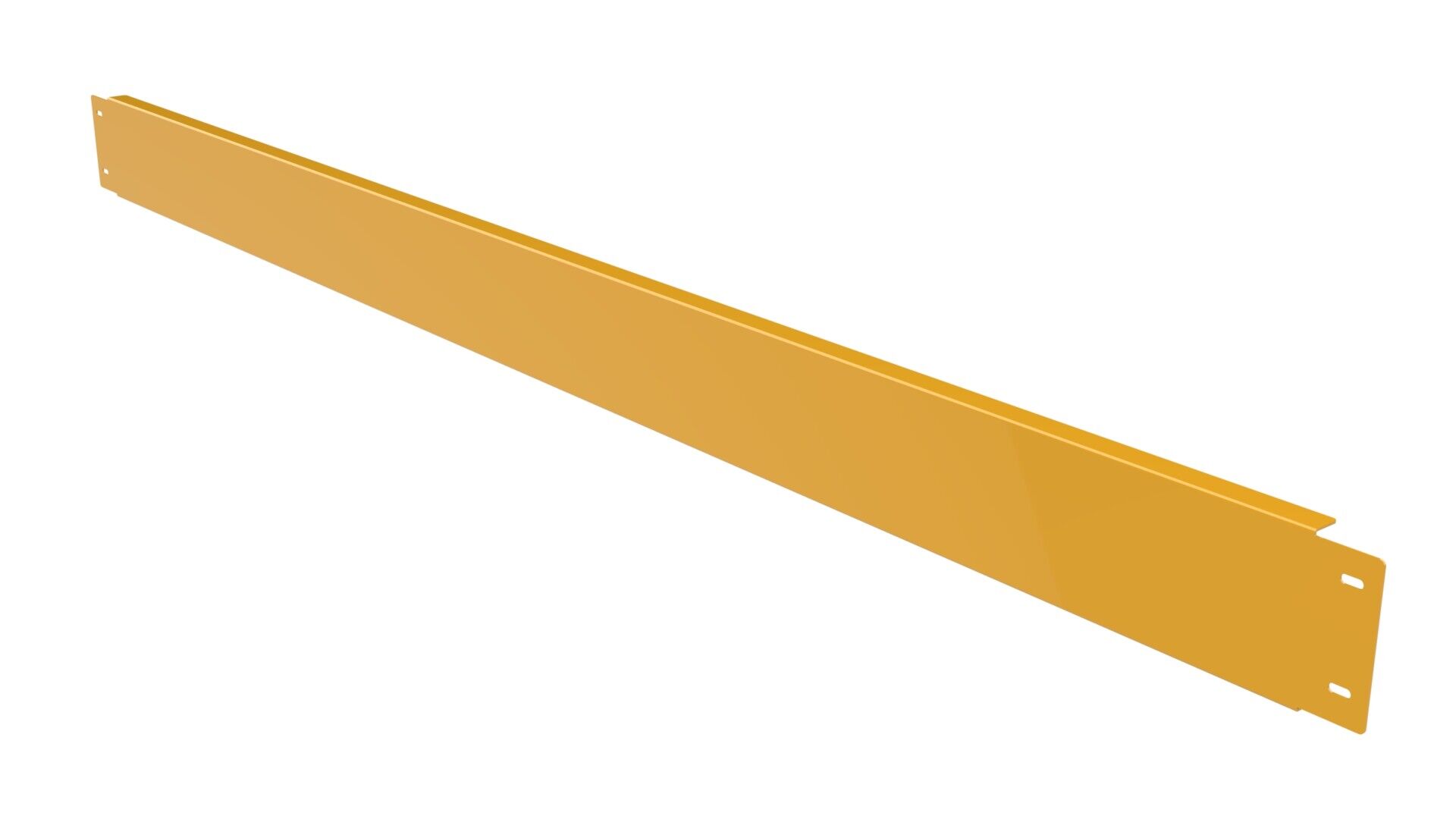

Steel Toe Board.

CODE:

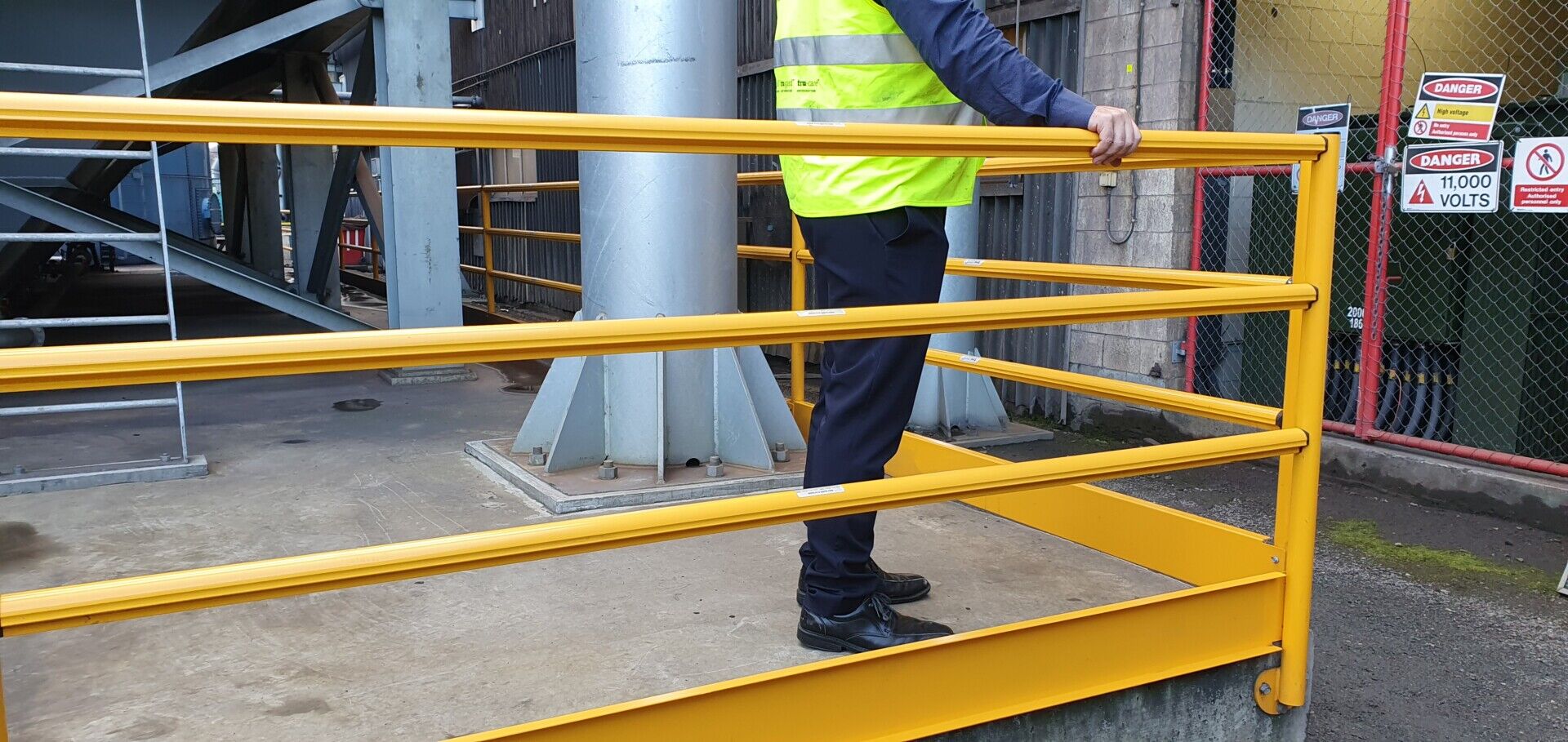

The Toe Board is used with the Hand Rail System to prevent a person’s feet slipping through and over the edge. In addition, the Toe Board can catch tools or other items that might fall or be kicked off the edge during normal work activity.

  • 2250mm long x 150mm high
  • 2mm mild steel
  • Product weight: 7.3kg
  • Available in a Safety Yellow finish for internal/dry use only, or
  • Safety Yellow over Galvanised suitable for external use

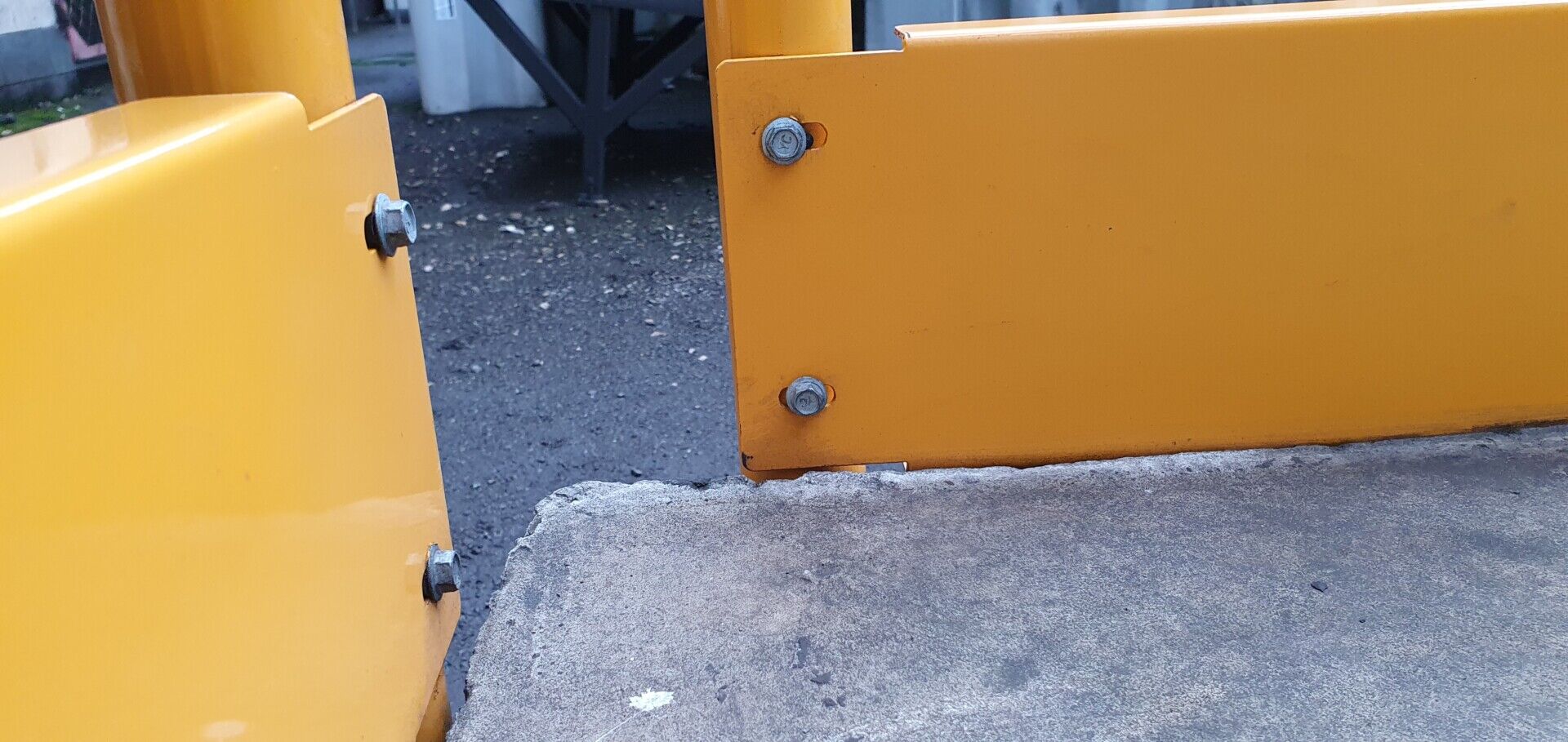

  • Installation kit includes 4 x galvanised tek screws
  • The AS/NZS 1640 : 2018 standard requires the use of toe boards where an object could fall from a platform onto an area that is accessible to people. Toe Boards provide compliance to this standard.

Options
Spec Sheets
Options
Code
Description
Finish
Size
49-TB2250Y
Steel Toe Board
Safety Yellow Powdercoat (Internal Only)
2250mm long x 150mm high
49-TB2250GY
Steel Toe Board
Galvanised with Safety Yellow Powdercoat (External)
2250mm long x 150mm high
Spec Sheets
Title
Size
Download
Vanguard-Group-Catalogue-Page-39-Tru-Gard-Handrail
93kB
Download
Hand-Rail-Installation-Manual
1.2MB
Download

FAQs.

Can this Steel Toe Board be used outdoors as well?

For external use, we recommend the Safety Yellow over Galvanised finish which is best suited for outdoor weather conditions.
