Steel Barrier – 910 Double.
CODE:

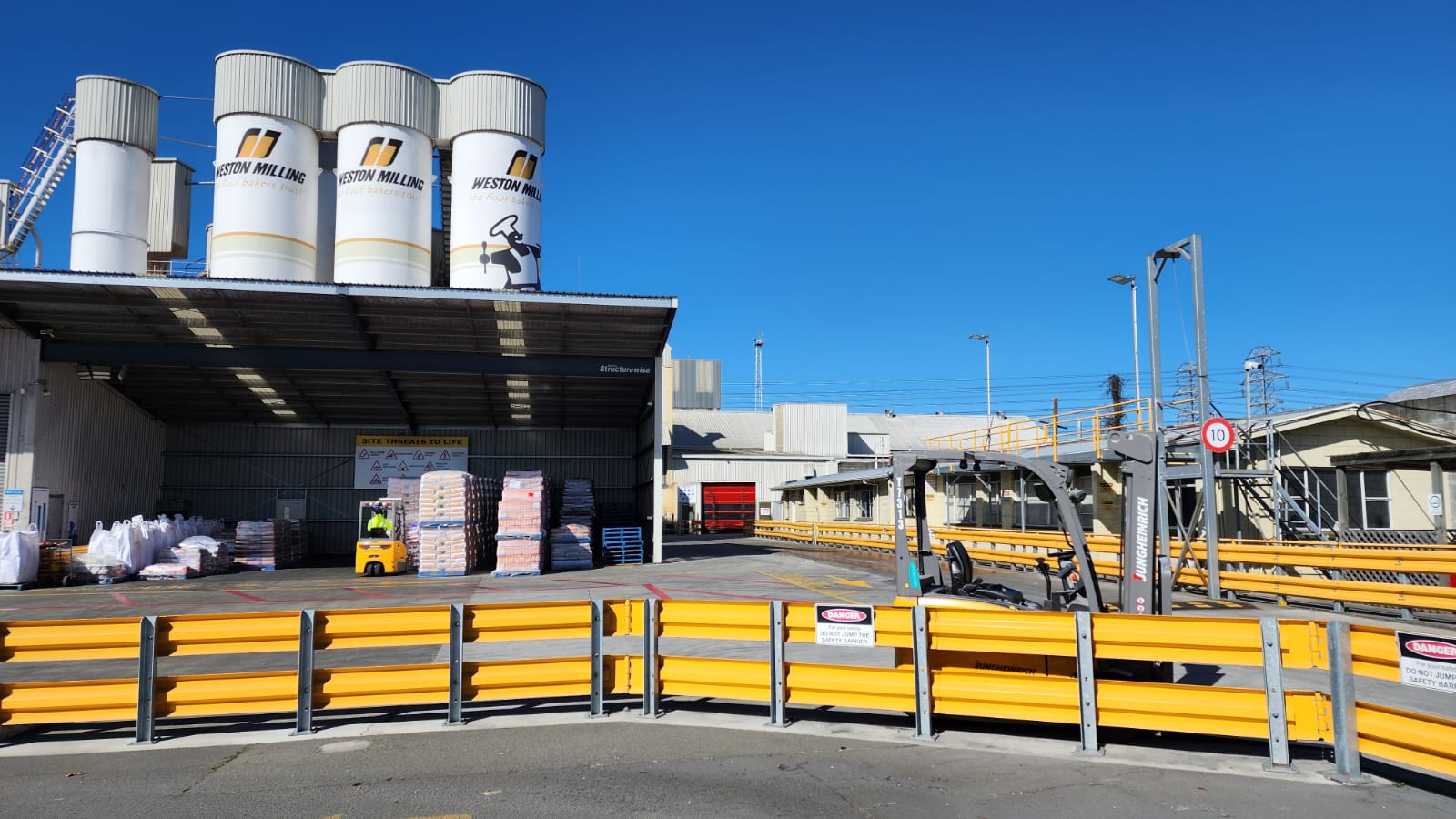

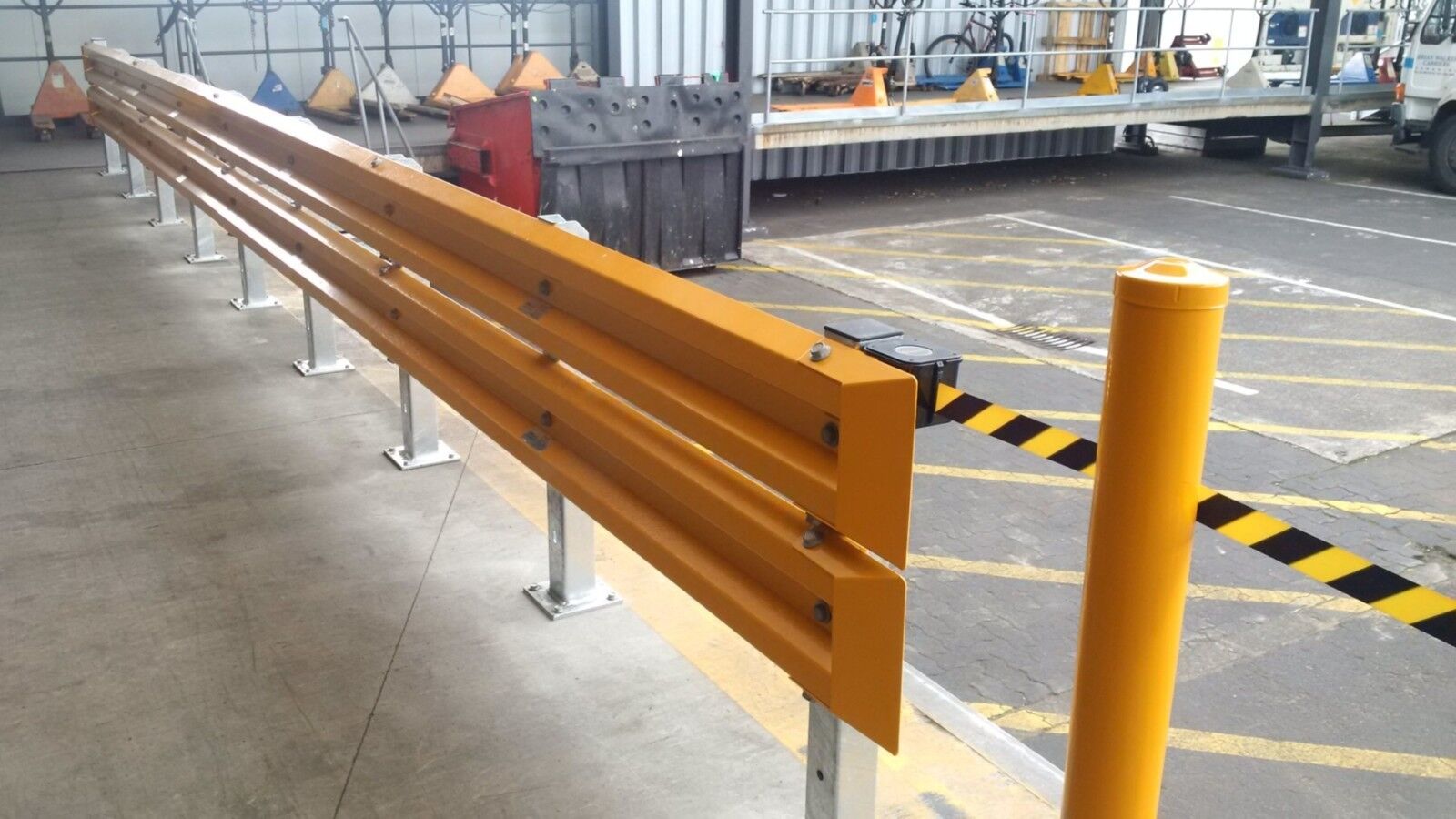

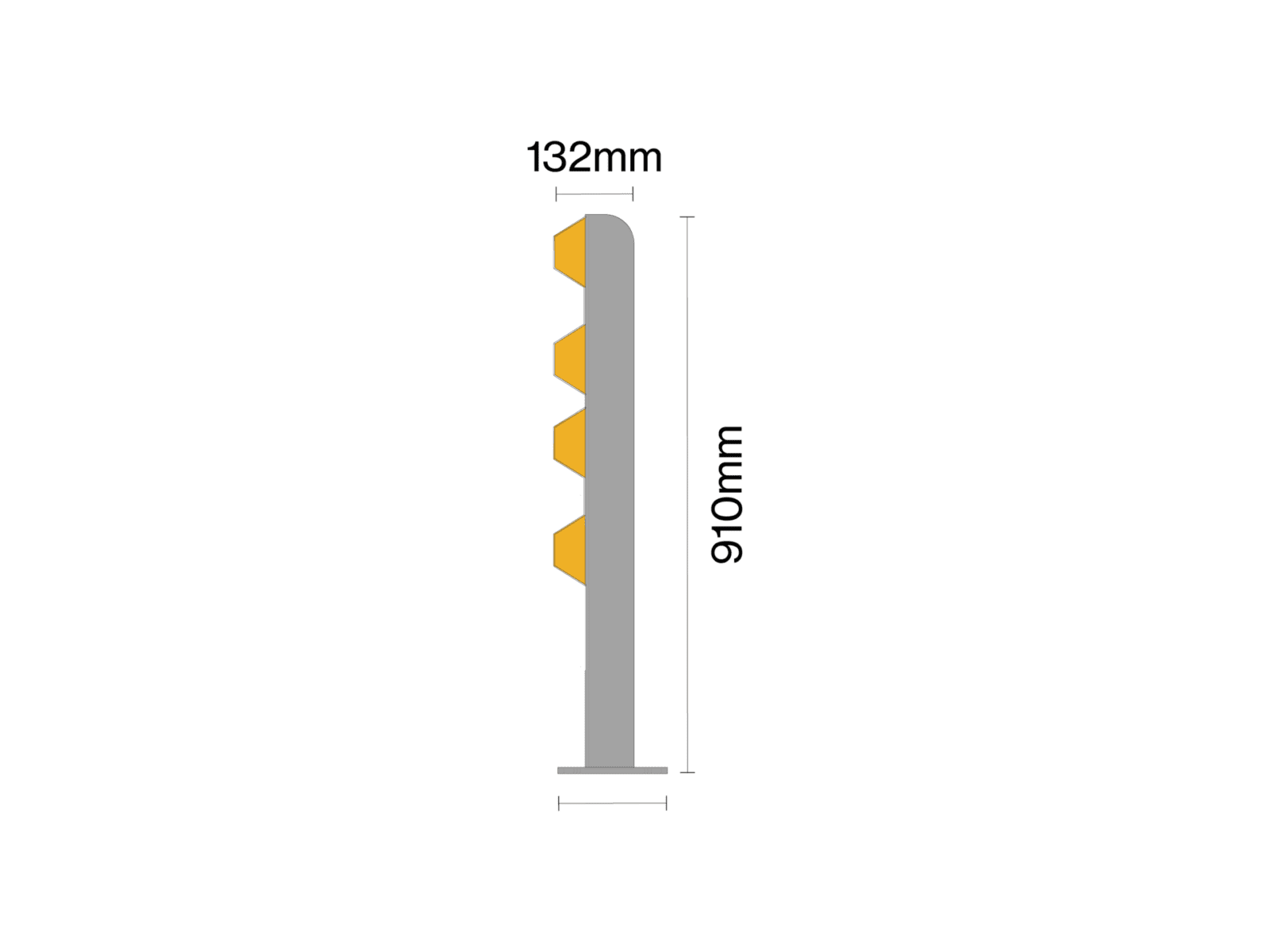

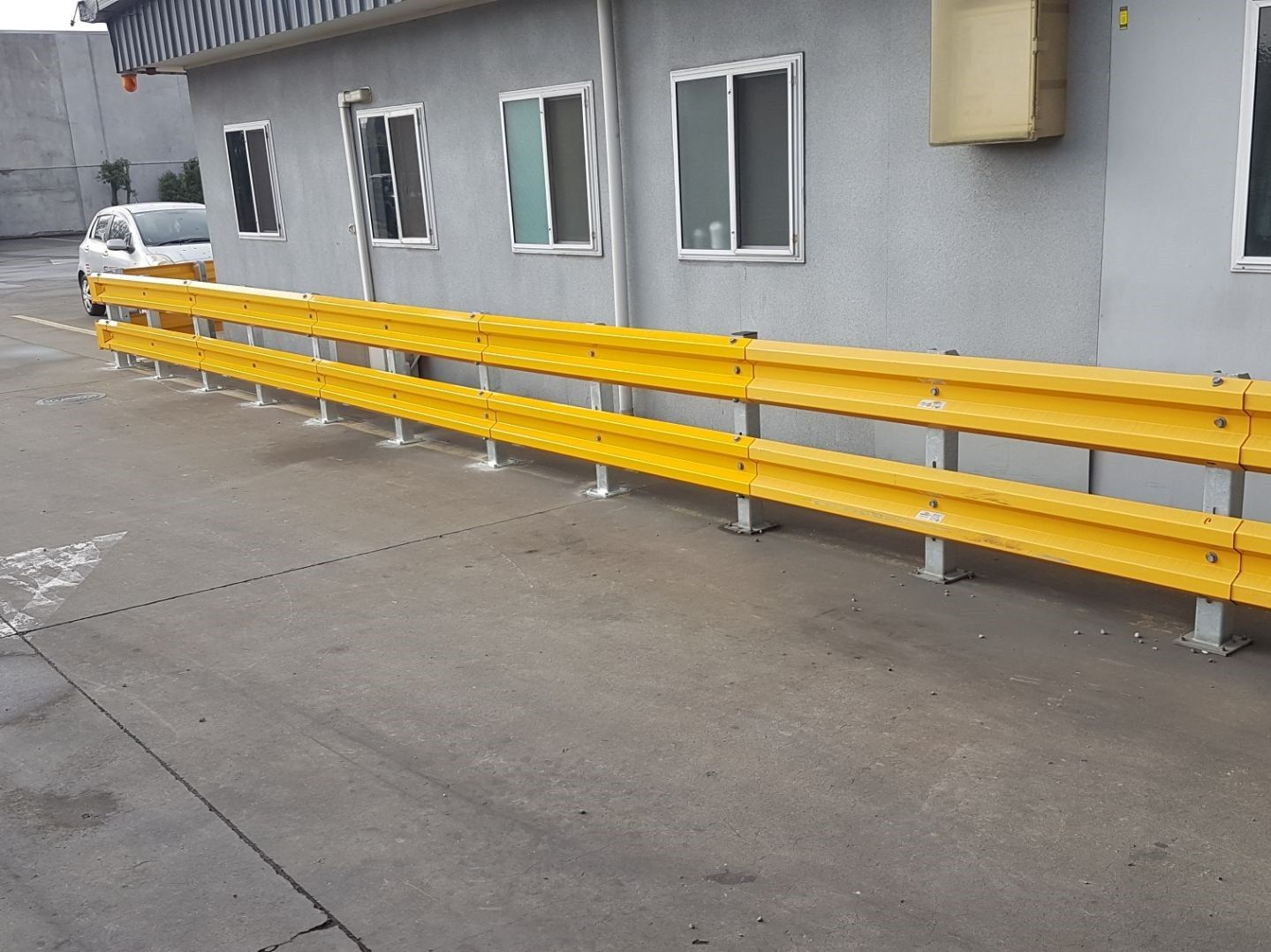

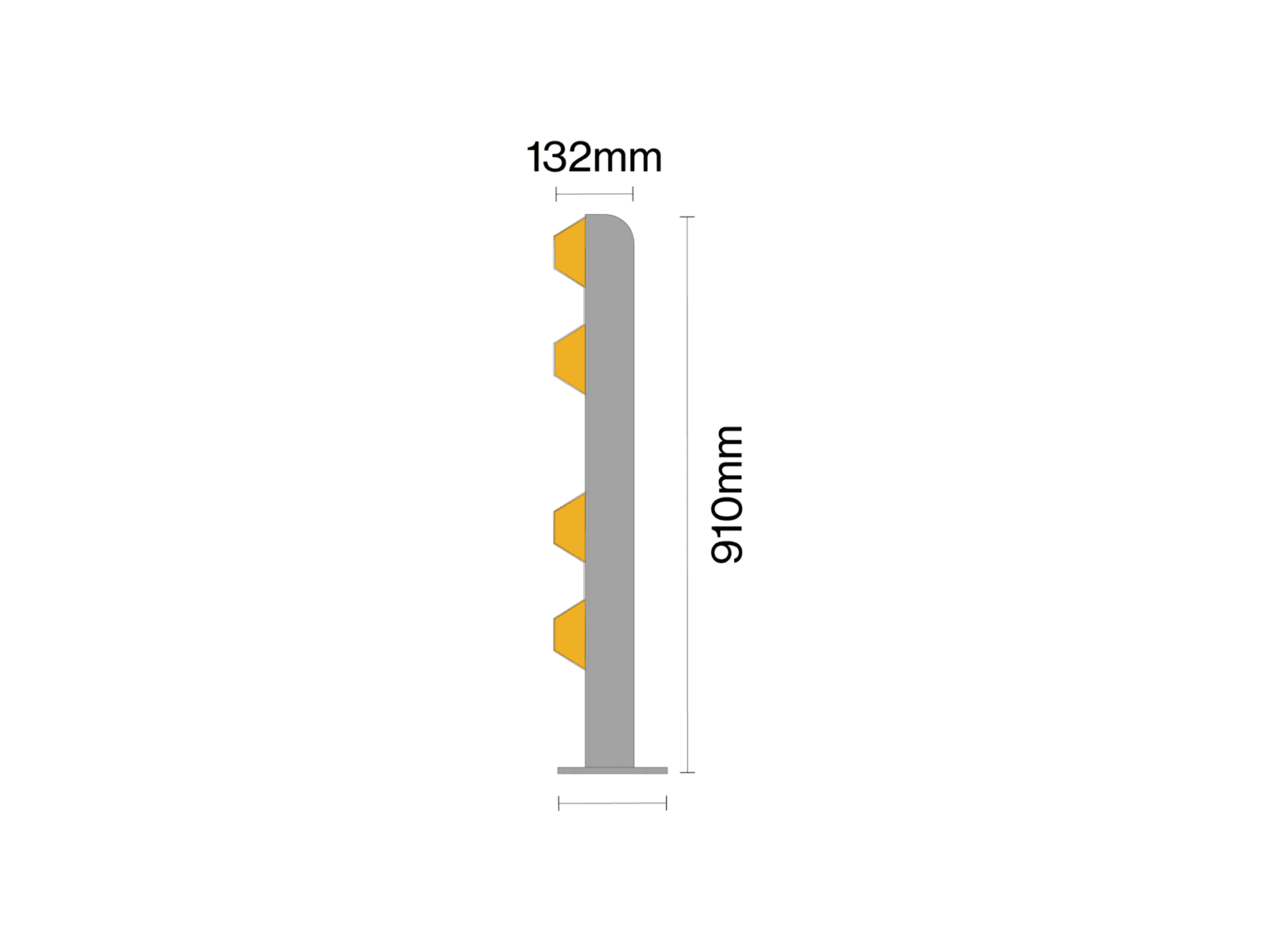

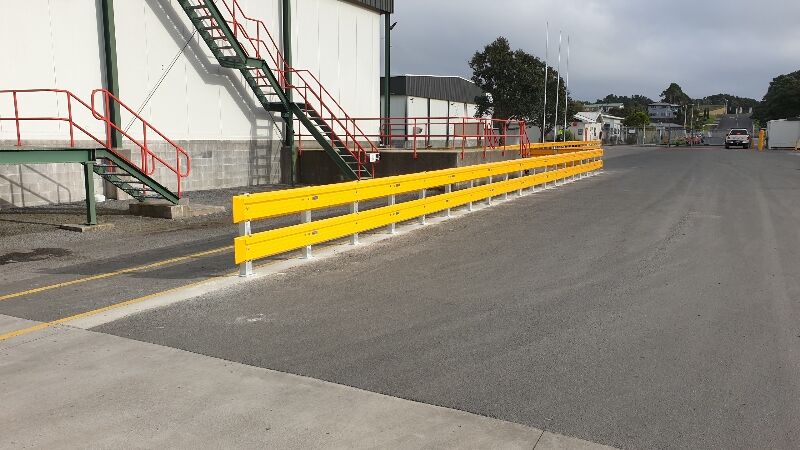

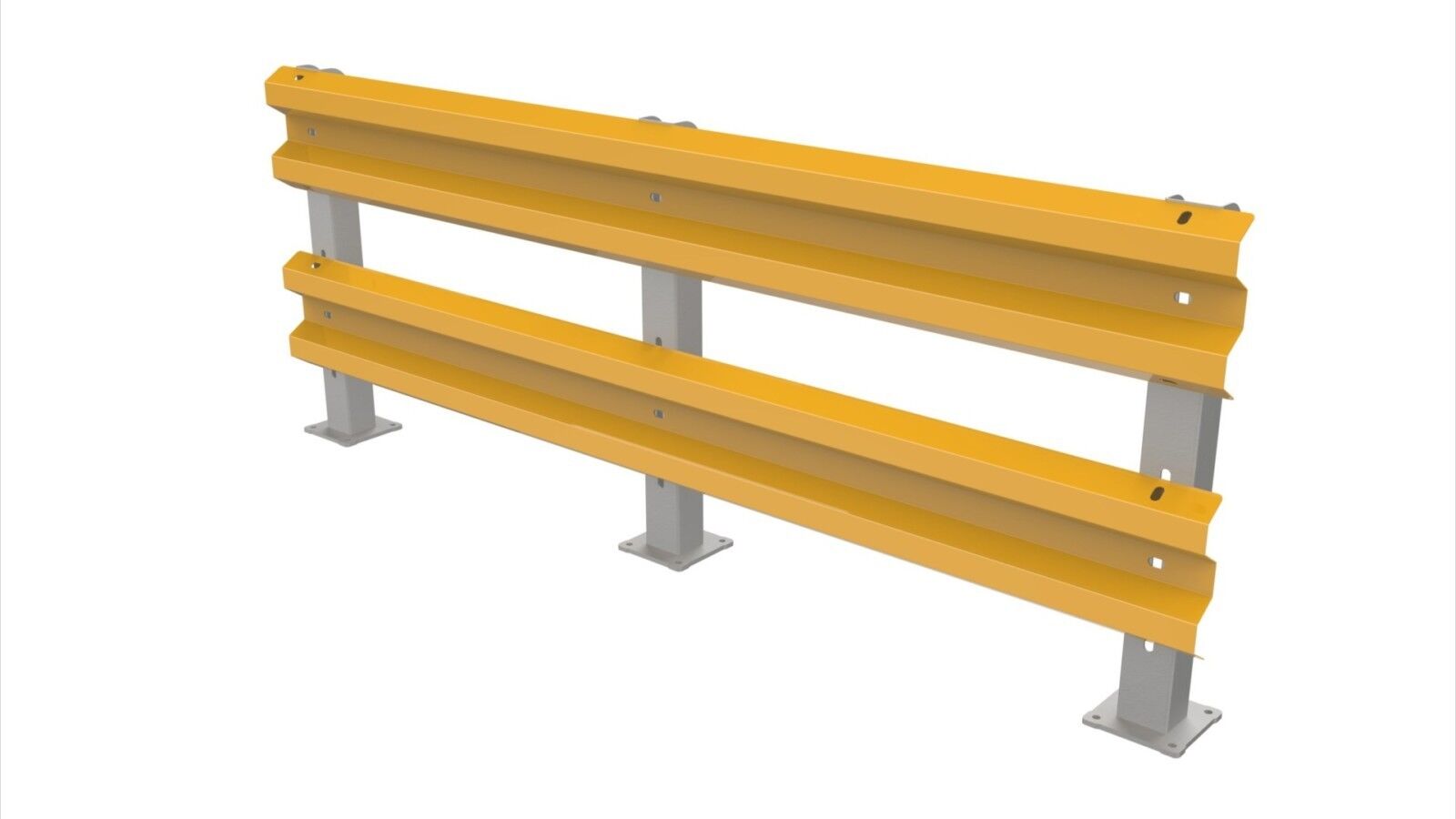

910mm high double rail barrier is a certified steel safety barrier system used for traffic management and protecting against forklift injury to personnel and damage to buildings and assets.
Double rail offers more protection and a higher strength rating. Bottom rail can be placed 100mm off ground, or at ground level, for protection against fork tines.
- Modular system can be configured to your required site layout
- Post centres of 1.1m ensure that every impact is absorbed by a post
- The 910mm high double rail stops 7T at 6.3km/h
- Compliant with AS/NZS 1170.1 Section 3.8. (Certification available by request)

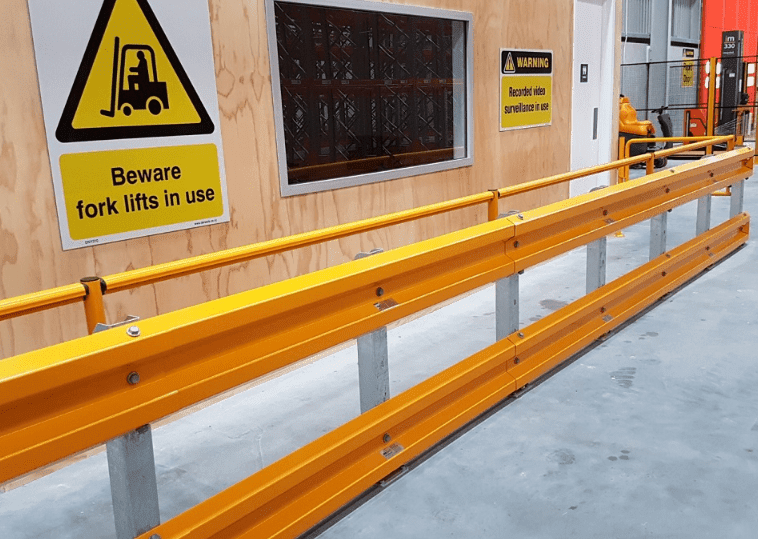

- Can be installed with pedestrian handrail mounted to barrier
Options
Spec Sheets
Rating Table
Options
Code
Description
910-2
Steel Barrier 910mm High - Double rail
910-2H
Pedestrian Handrail
Spec Sheets
Rating Table
FAQs.
What is the ideal application for Steel Barriers?
Steel Barriers are perfect for any application where you need to keep people safe from forklift or vehicle operating areas.
Can access to a safe crossing area be allowed for?

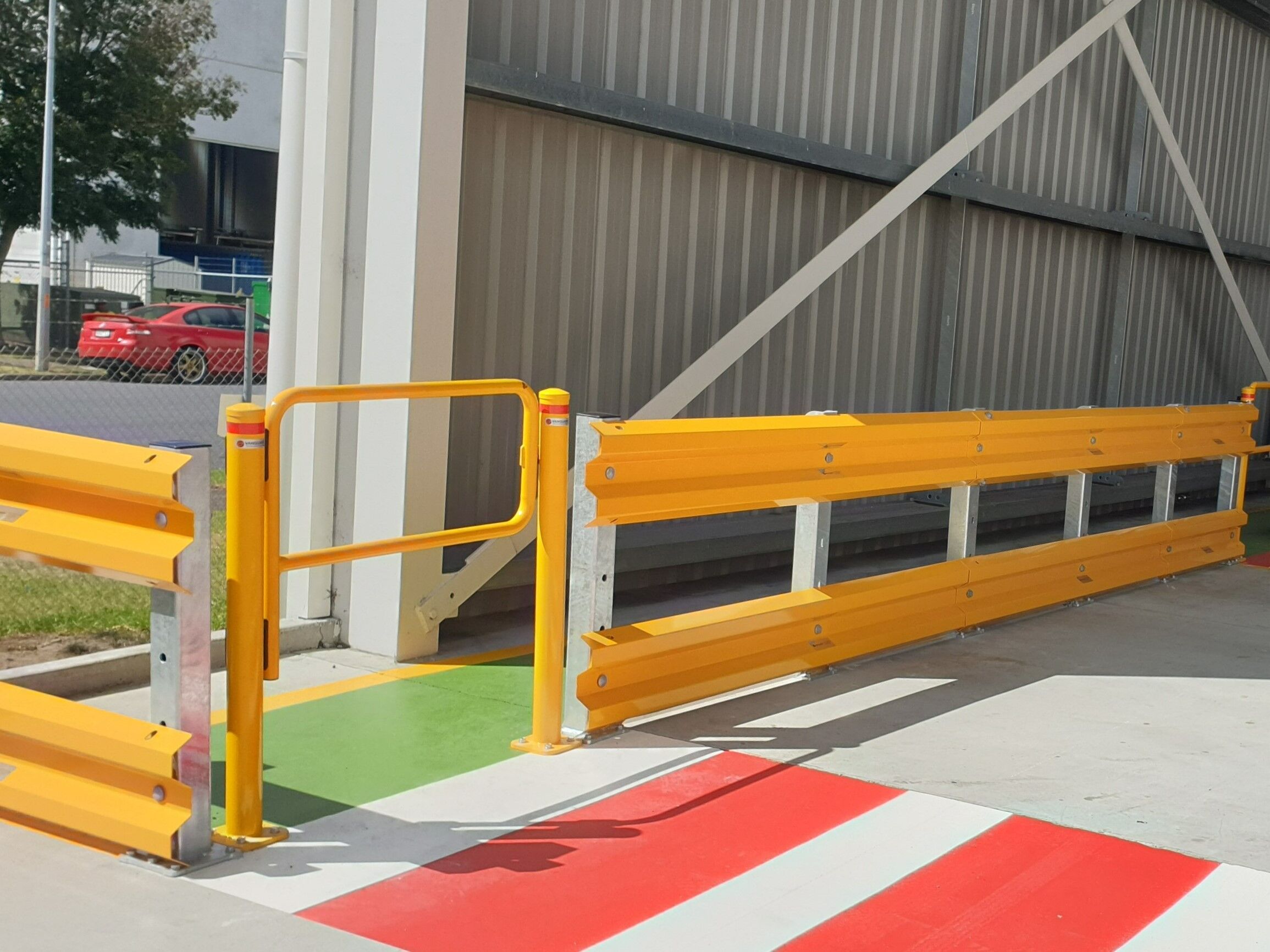

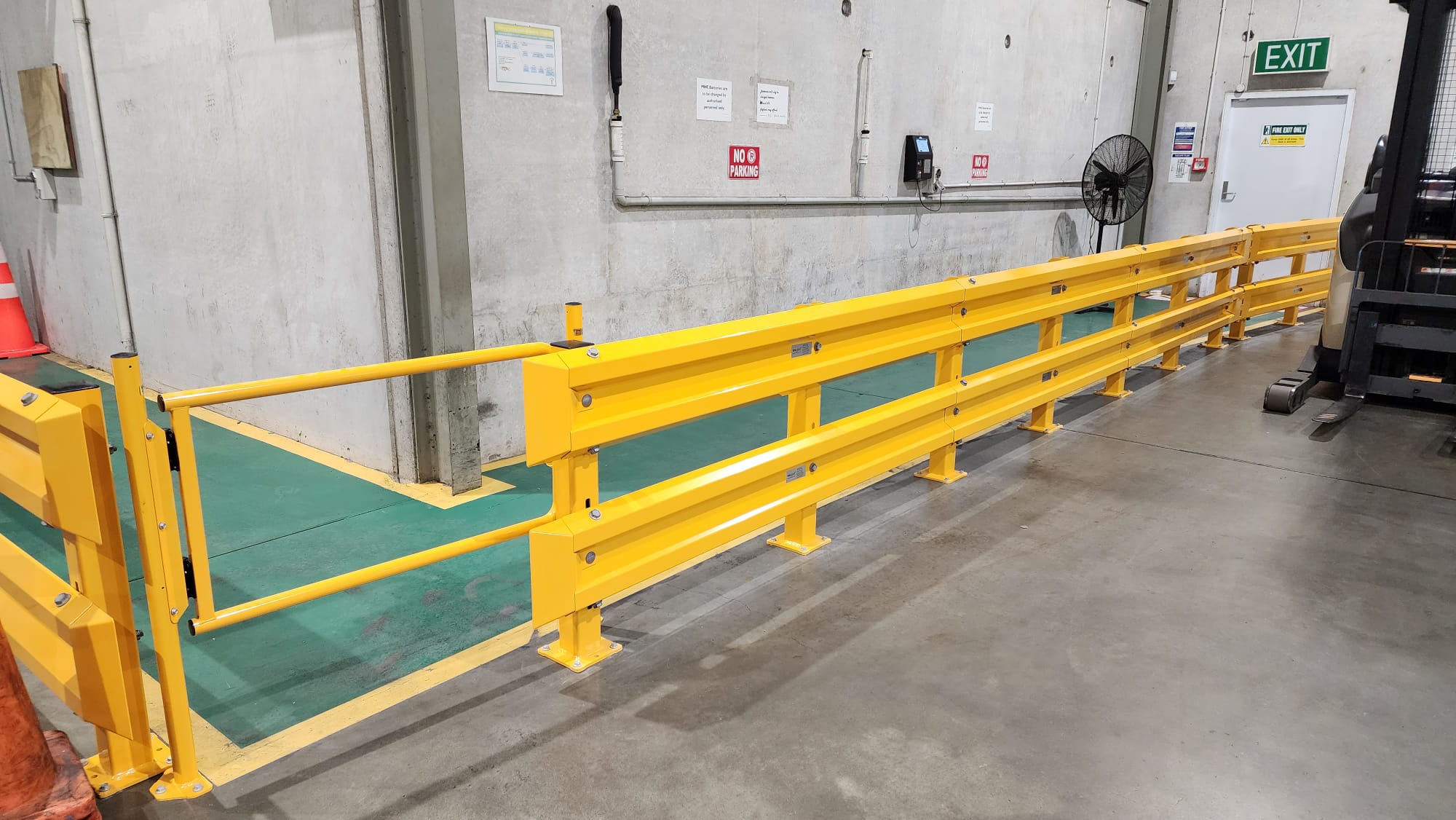

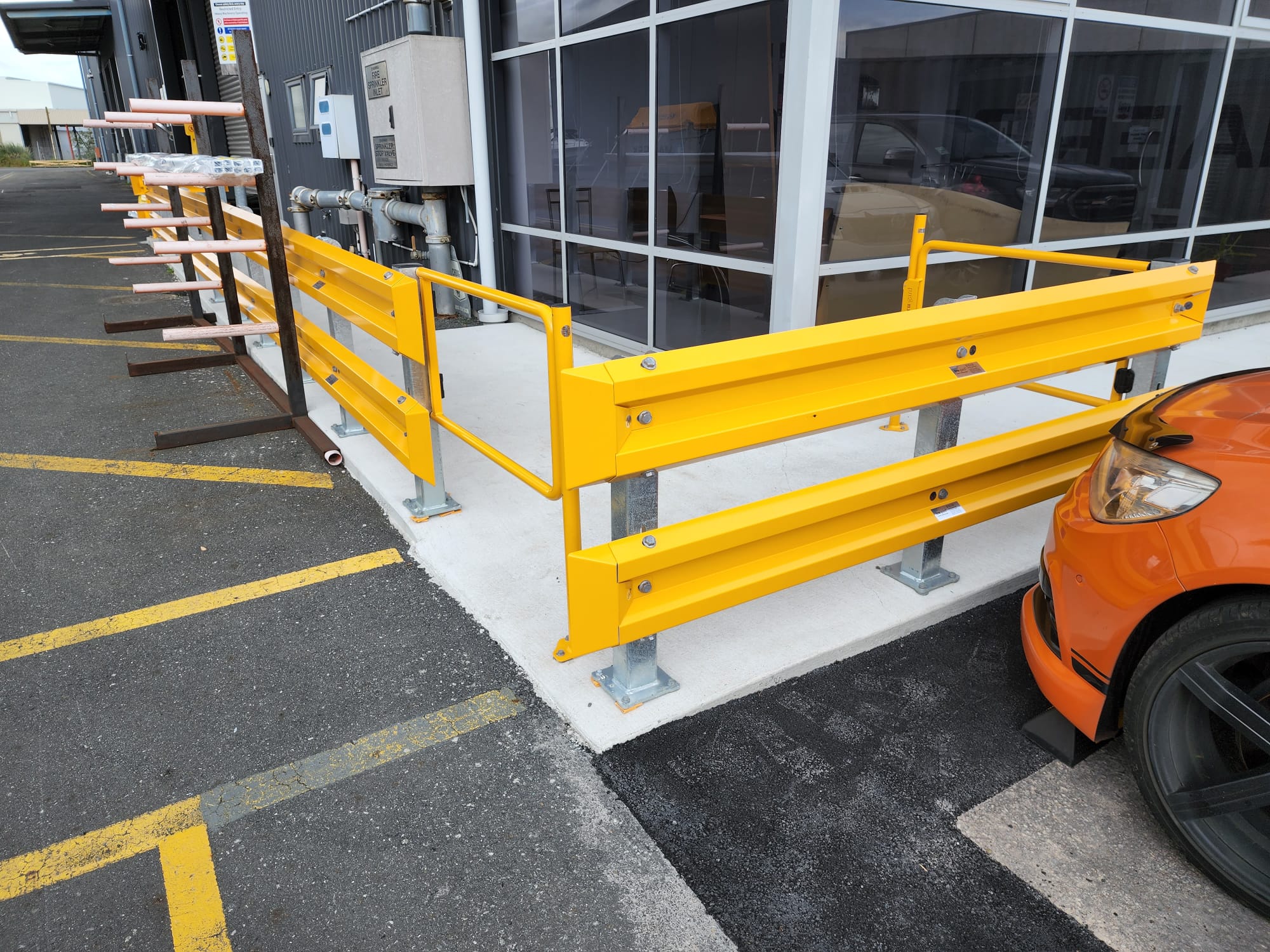

Yes. The Steel Pause Gates are perfect for allowing access to a safe crossing area. Pause gates can be fitted anywhere along the length of the Traffic barrier.
Are Steel Barriers customisable for my layout?
Absolutely. This Steel Barrier is a very flexible system, so we can adapt to suit your layout.
Are Steel Barriers able to withstand a vehicle hit?
Yes. Various height and guard rail options are available to suit your application, ask us for the best option for your needs.
Can Steel Barriers be bolted to asphalt?
No, our Steel Barrier must be bolted to concrete, so if the existing surface is asphalt, you will need to excavate and pour concrete footings to install the barrier onto. Concrete footers need to be a minimum of 25MPA and 400mm wide x 300mm deep. If you would prefer to install individual footers for each post, these need to be a minimum of 400(L)x400(W)x300(D)mm per post.
