d-flexx Pedestrian Barrier.

CODE:

d-flexx Pedestrian Barrier is a certified, shock absorbent and highly impact resistant safety barrier.

Three pedestrian rails make this a simple yet effective barrier to separate people from light vehicles and machinery, and prevent pedestrians from walking into dangerous traffic areas.

Absorbs energy on impact then returns to its original shape
Made from a flexible, impact-resistant PE polymer
100% recyclable, UV-resistant and suitable for indoor and outdoor use
Pedestrian Barrier stops 2T at 5.7km/h
PAS13 compliant, and tested and certified by German TÜV NORD (DIN EN 1512) to exceed AS/NZ 1170.1:2002 Section 3.8 (Type G).
Can be used in temperature ranges from -40° up to + 50°.
Supplied with M10 x 70mm Anka Screws

View the full d-flexx family and case study here

Options
Videos
Spec Sheets
Rating Table
Options
Code
Description
DFFS
d-flexx Pedestrian Barrier
Videos
spacer


d-flexx Barrier | Impact Test

spacer


d-flexx Barrier | Installation Guide

Spec Sheets
Title
Size
Download
d-flexx Pedestrian Barrier technical details
395kB
Download
d-flexx-Pedestrian Installation Guide
3.9MB
Download
Vanguard-Group-Catalogue-Page-22-d-flexx-Pedestrian-Barrier
182kB
Download
d-flexx configurator Video
21.9MB
Download

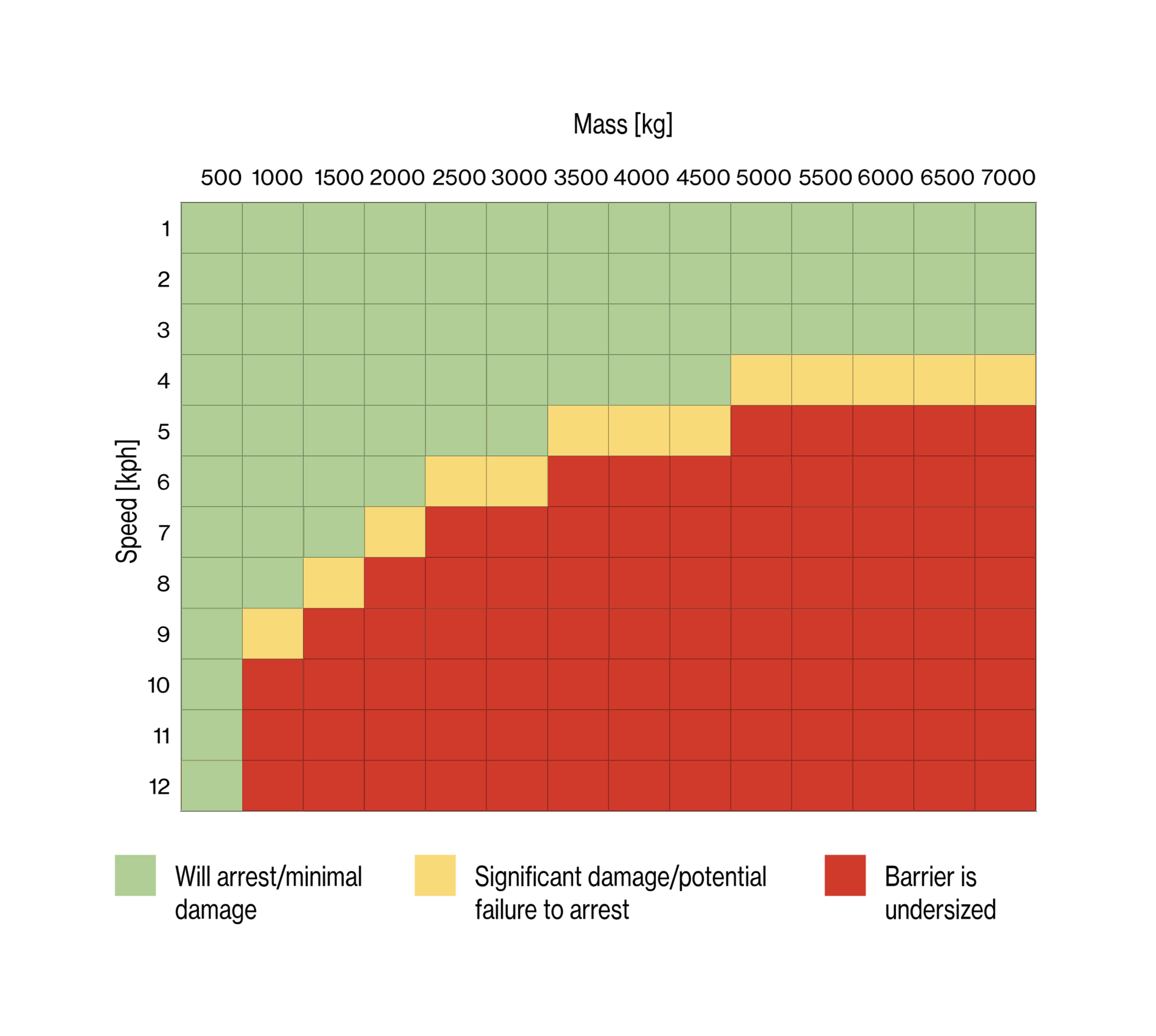

Rating Table

FAQs.

Can the d-flexx Pedestrian Barrier be bolted onto asphalt?

No, the d-flexx Pedestrian Barrier must be bolted onto concrete. If the existing surface is asphalt, you will need to excavate and pour concrete footings to install the barrier onto. Concrete footers need to be a minimum of 25MPA and 300mm wide x 300mm deep. If you would prefer to install individual footers for each post, these need to be a minimum of 300(L) x 300(W) x 300(D)mm per post.
